Capacitive Touch Foil – Hentouch Custom Capacitive Touch Film

1.Stable quality,8 years life time.
2.Zero pressure and precise touch,fast response.
3. Optional size:from 10.1" to 100"
4.Water-proof, Ultraviolet-proof, Vandal resistant,easy clean.
5.Suitable for different environment of indoor and outdoor.
6.Flexible,could be used in innovative design and special construction .
7.Fashionable and beautiful appearance,frameless,transparent, ultrathin design.
8.The same technology of projected capacitive touch as ,maximum supports 100 points now .
9.Work through galss maximum thickness of 12mm .

Advantages:

1. Projected Capacitance Touch Foil Technology

2. Works on glass

3. Easy to use or install, and Simple to set up for touch foil

4. Durable flexible touch foil, very light and thin touch foil

5. Perfect Single-touch and dual-touch, Quick touch response speed

6. Fixing options: removable and permanent, Can be permanent or replaceable

7. Can be attached to almost every surface: Shop window, Glass, Acrylic and Rear projection film and any other non-metallic material

8. Available Size: from 10.1 to 130 inches sheets, bigger available on request

 Applications:

1. Shop/Store window displays

2. Indoor and outdoor kiosks

3. Glass partitions

4. Corporate offices

 5. Training and meeting rooms

6. Exhibitions and conferences

7. Museums and visitor attractions

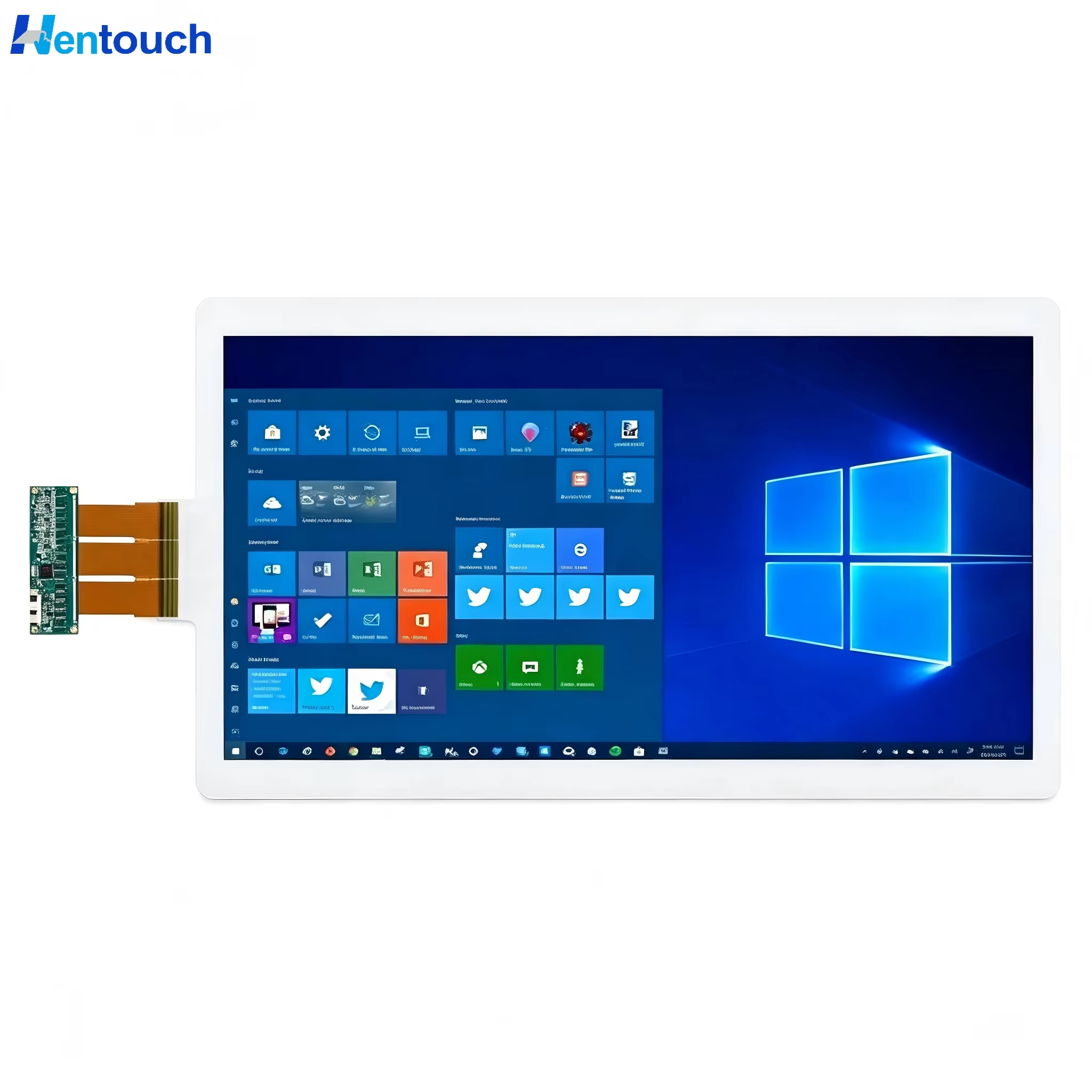

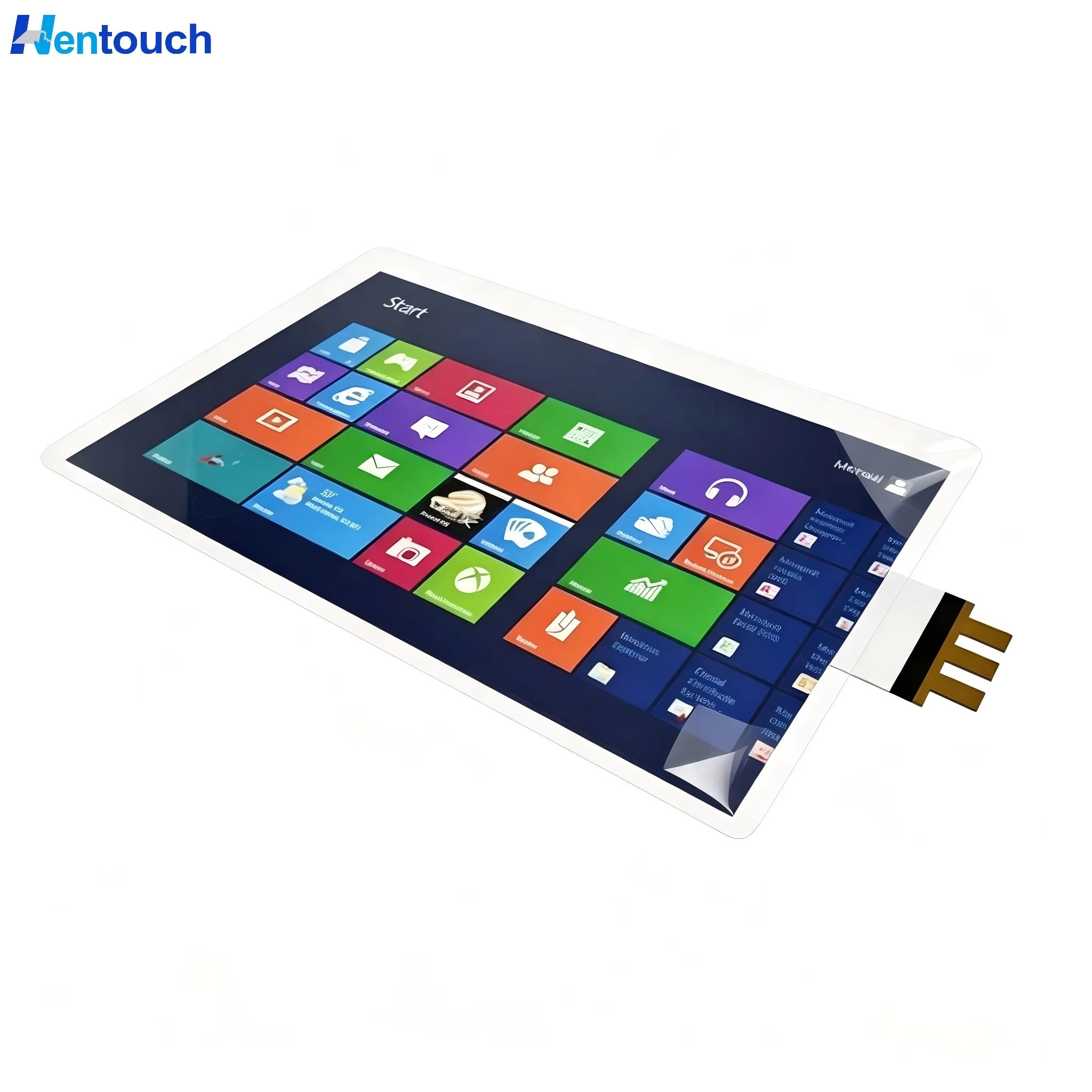

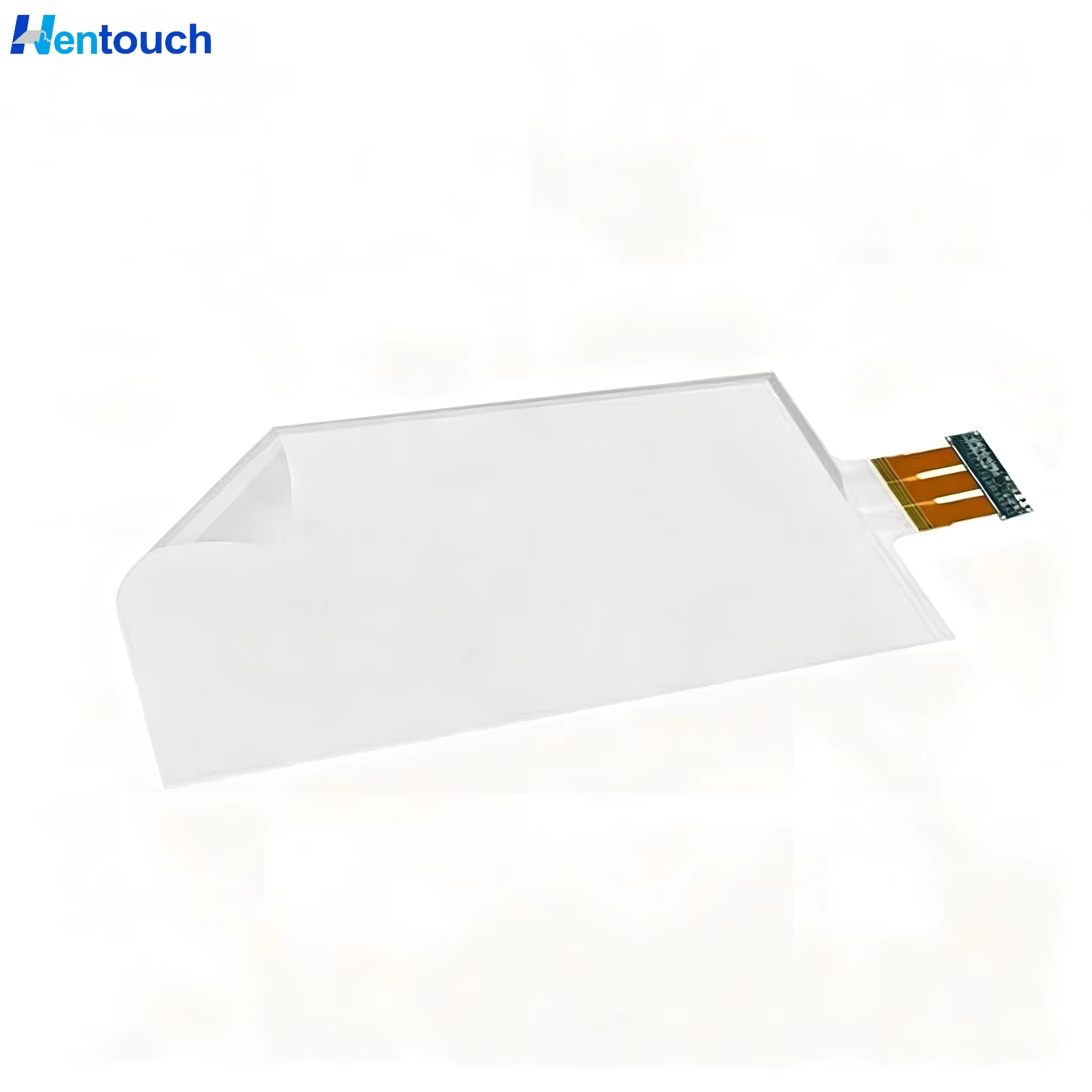

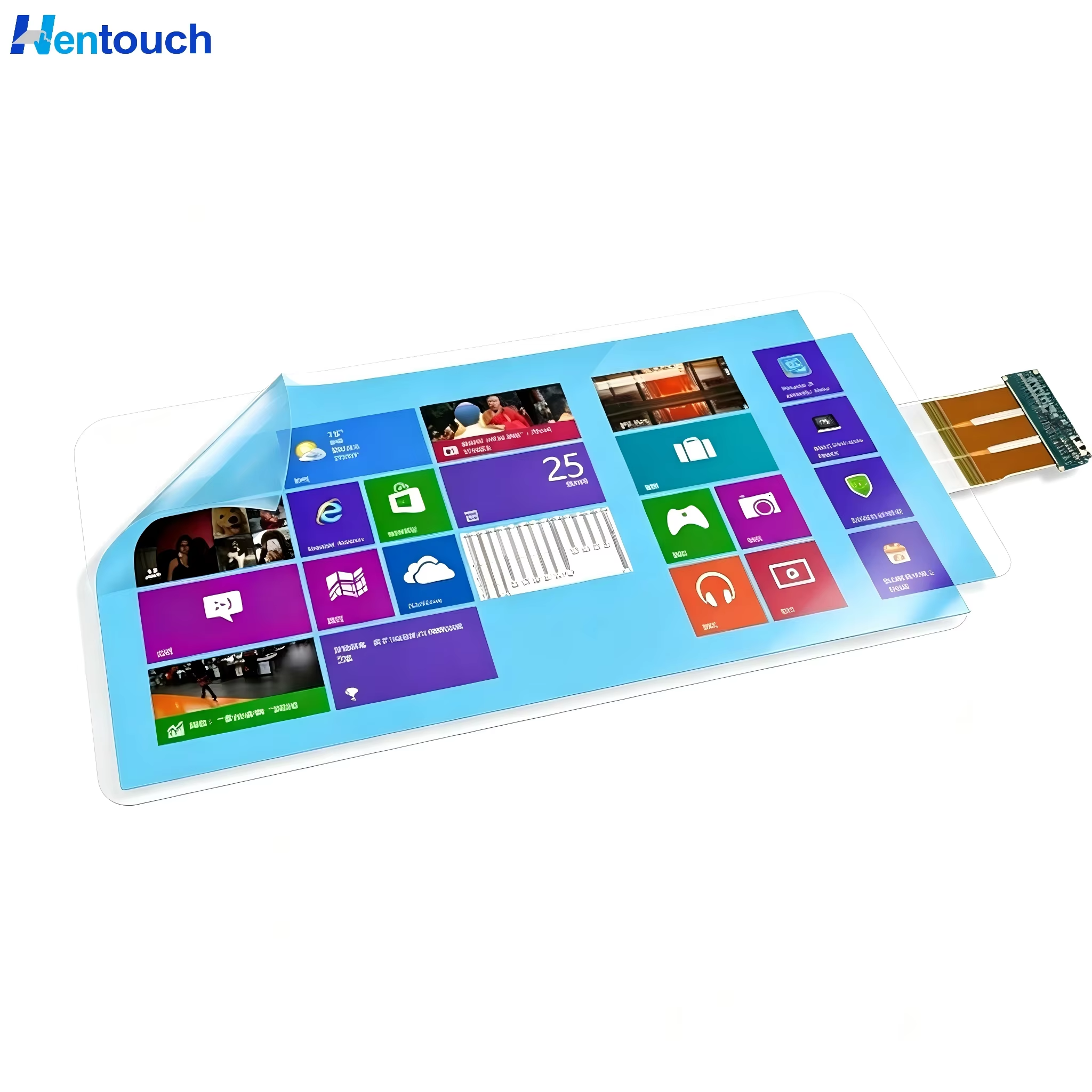

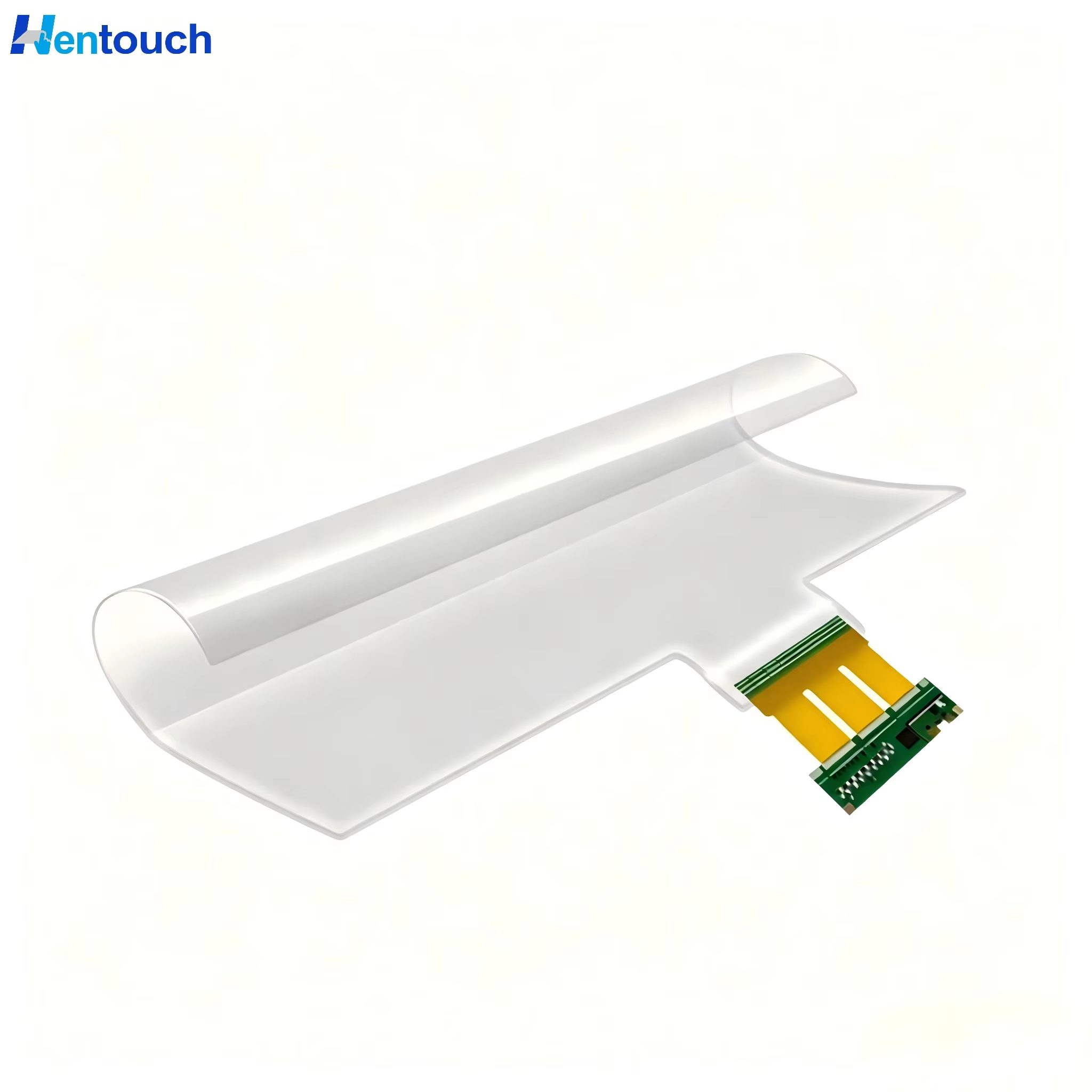

Details Images

Company Profile

Product Paramenters

Technical Theory：The improved projected capacitive touch technology, criss-cross X, Y nanowires constitute sensing                                      Metal printed matrix to replace traditional ITO layer

Product Type：ETB

Touch Point：40

Size Range：43''-86''

Touch Accuracy：≤0.5mm

Sensor Quantity: TX80 RX142

Scanning Speed: 8ms/frame

Power Consumption: 1W

Driver：Free

Windows : Win7/8/8 .1/10

Android ; Kernel Version 3.10 or upward

Linux: Kernel Version 3.10 or upward

Arm Reject: Support

Customization Service: Support

Water-resistant: NO

Deviation Calibration: Calibrated by Software

Technology Certified: CE、ilac-MRA、CNAS、CAL、CMA、FCC、ROHS、ISO

Packing List: Touch Film*1   Circuit controller*1   USB cable*1

Film Thickness: ≤200um

Transparency: 93% or more

Input Voltage: 5V

Transmission method: USB2 .0

Transmission distance: ≤50m（add USB signals enlarger）

Safe Distance: 2mm（distance betweeen film and lcd panel）

Environment Temperature: From -20℃ to 70℃

Environment Light: Full angle strong light-resistant

Touch gesture: click、drag、zoom-out、zoom-in、recycle

Sensor: ≤10mm

Mark :test on 42inch film pasted on 5mm glass thickness
