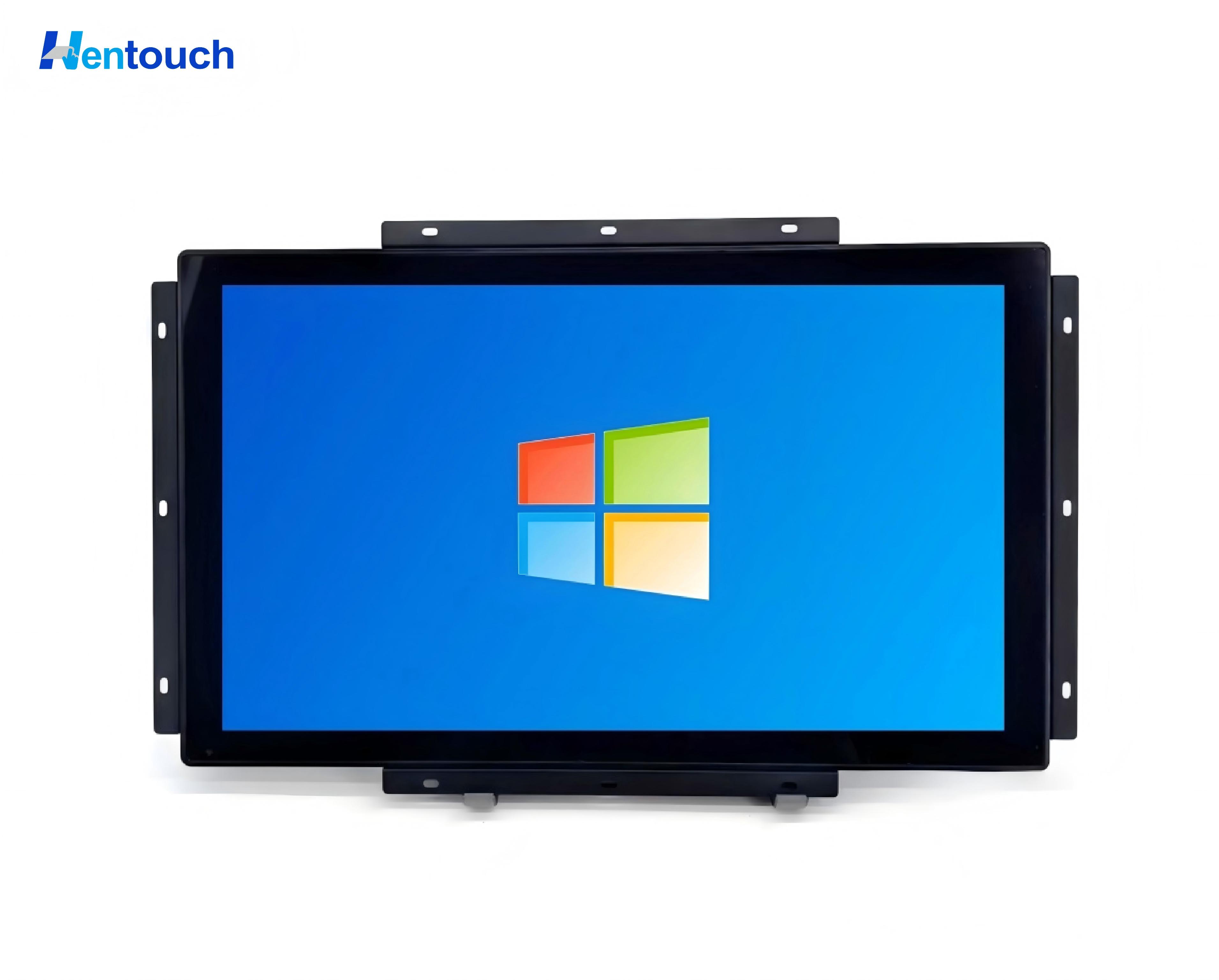

Open Frame Capacitive Touch Monitor – Hentouch Custom Industrial Touch Display
Our open frame touch monitor is a high-performance industrial touch display designed for embedded integration into kiosks, automation equipment, medical devices, vending machines and smart cabinet systems. Equipped with 10-point projected capacitive touch technology, it supports multi-touch simultaneous operation, delivering sensitive, smooth and accurate touch response even with light gloves. The front panel features IP65 waterproof and dustproof rating, effectively blocking water splashes, dust and oil stains for stable long-term operation in harsh workshop, outdoor and catering environments. Built with IK08 anti-vandal front glass, the screen resists impact, scratch and heavy bump damage, greatly extending service life in high-traffic public self-service terminals. We support full OEM & ODM customization to meet your personalized project demands: adjustable screen brightness (200–1500 nits sunlight-readable option), Windows & Android dual system compatibility, multiple interface configurations (HDMI, VGA, USB, DC power), custom screen sizes, metal mounting brackets, panel color and logo printing. With 15 years of professional touch screen supplier experience, we provide strict quality inspection, stable batch supply and one-stop technical support for global industrial and commercial clients.
Product Paramenters
Model：HT-TM156A
Diagonal：15.6 Inch
Color：Black/Silver
Display Type：Active matrix TFT LCD, LED backlight
Active Display Area：344.16 mm x 193.59 mm
Aspect Ratio：16：9
The Display Dimensions：381.8 mm x 248 mm，Thickness:52.2mm
Native Resolution：1920 x 1080 at 60 Hz
Number of Colors：16.7M
Number of Touches：10 -touch
Brightness (typical)：LCD 250 nits
Response (typical)：13 msec
Viewing Angle：Horizontal: 178° (89°/89°) Vertical: 178° (89°/89°)
Contrast Ratio：3000：1

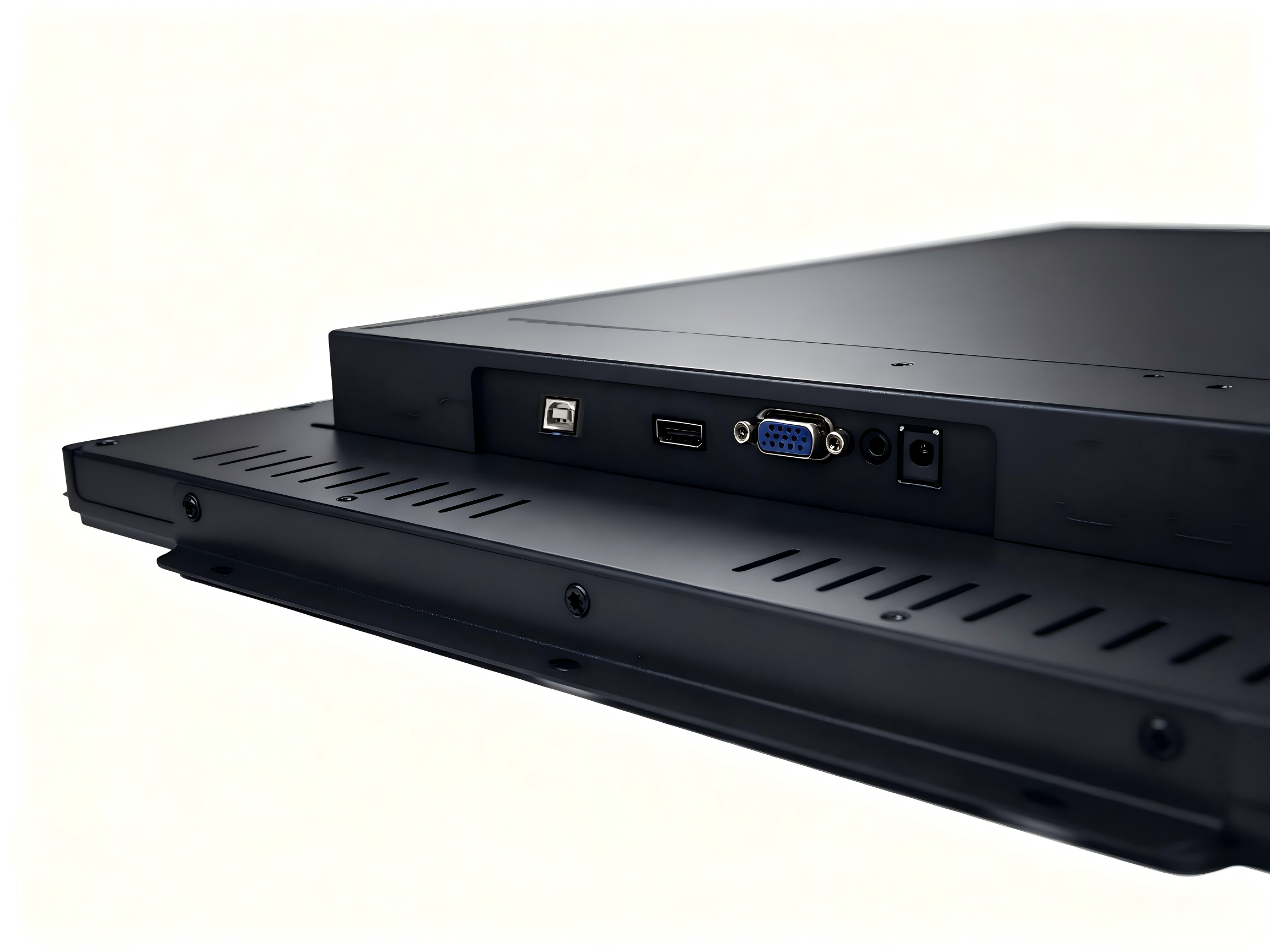

Input video formats：Analog VGA and HDMI（DP optional）
Sweep frequency：Horizontal: 31.5~60.2kHz; vertical: 56.3~75Hz
Touch Technology：projected capacitive
Touch chip：ILITEK
Touch points：10
Touch supply voltage：5V
Touch interface：USB
Touch support system：Windows，Android，linux
Power：External DC, input voltage DC: 12V;
Screen power supply selection：3.3V/5V/12V
Power Management：The board's standby power consumption is <0.5W.
Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD: 5.5 mm(± 0 .1mm); Needle Inner Diameter: 2.1 mm (± 0 .1 mm); Cartridge Length: 9.5 mm(± 0 .5 mm)
External DC , input voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS (for
all in one PC) - Type: DC cartridge receptacle; Cartridge ID: 5.5 mm(± 0 .3 mm);
Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (± 0 .3 mm);
Power consumption (standard)：Only Display13.5W(Typ.)
Temperature：Operating: 0℃~50℃; Storage: -20℃~ 60℃
Humidity：Operating: 20% to 80% (no condensation); Storage: 10% to 90% (noncondensing)
MTBF：50000 hours
Weight (approx.)：Unpackaged : 3.7kg ; Packaged 6kg
Shipping Dimensions：590mm*150mm*390mm
Warranty：12 months

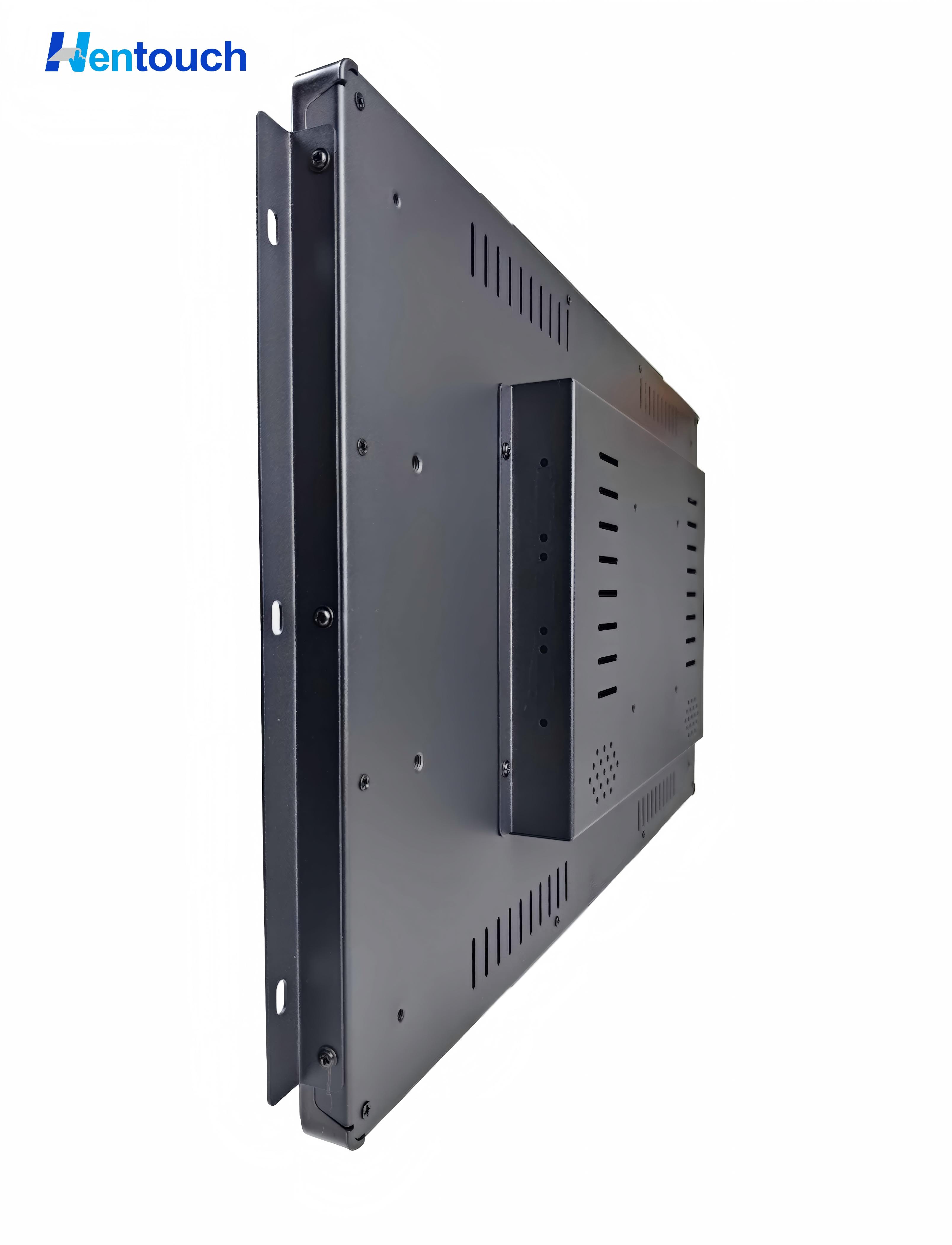

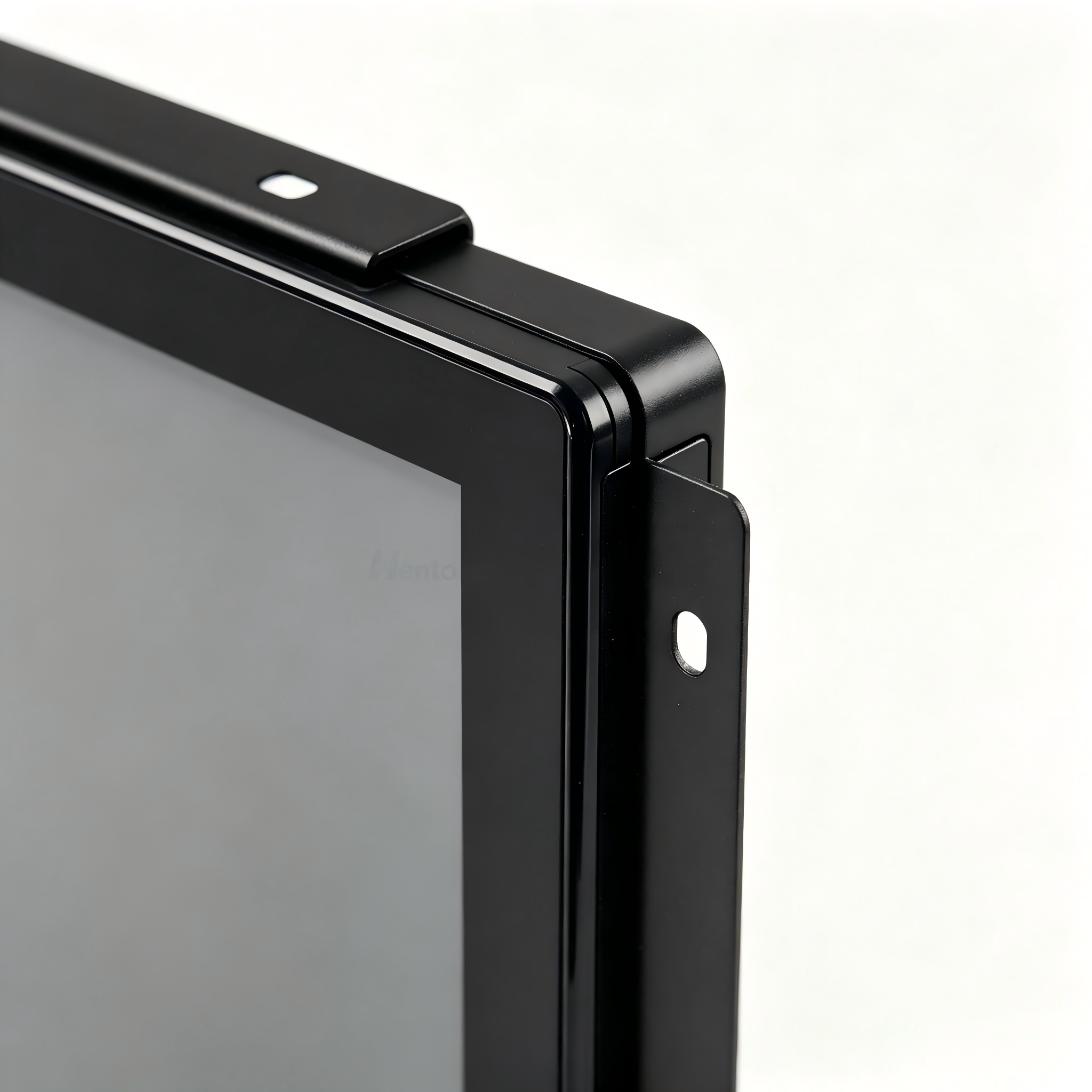

Mounting Options：100mm or 75mm VESA mounting,open bracket mounting
Water and dust protection/Explosion-proof：IP65(front)/IK08(front)
Surface Treatment：AF/AR/AG (optional)
What’s in the box：HDMI cable, VGA cable, Touch USB cable, Adapter,Power Cord
Agency Approvals：FCC , CE , China RoHS
