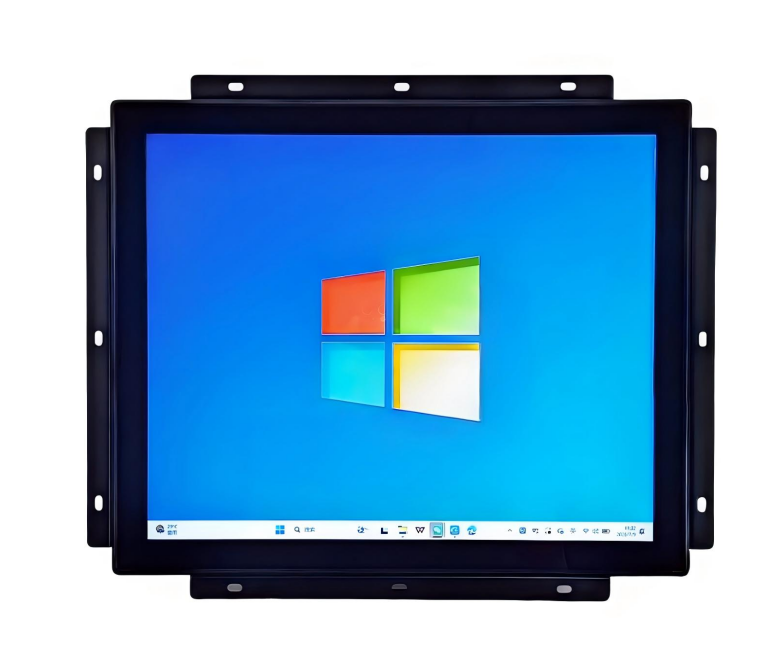

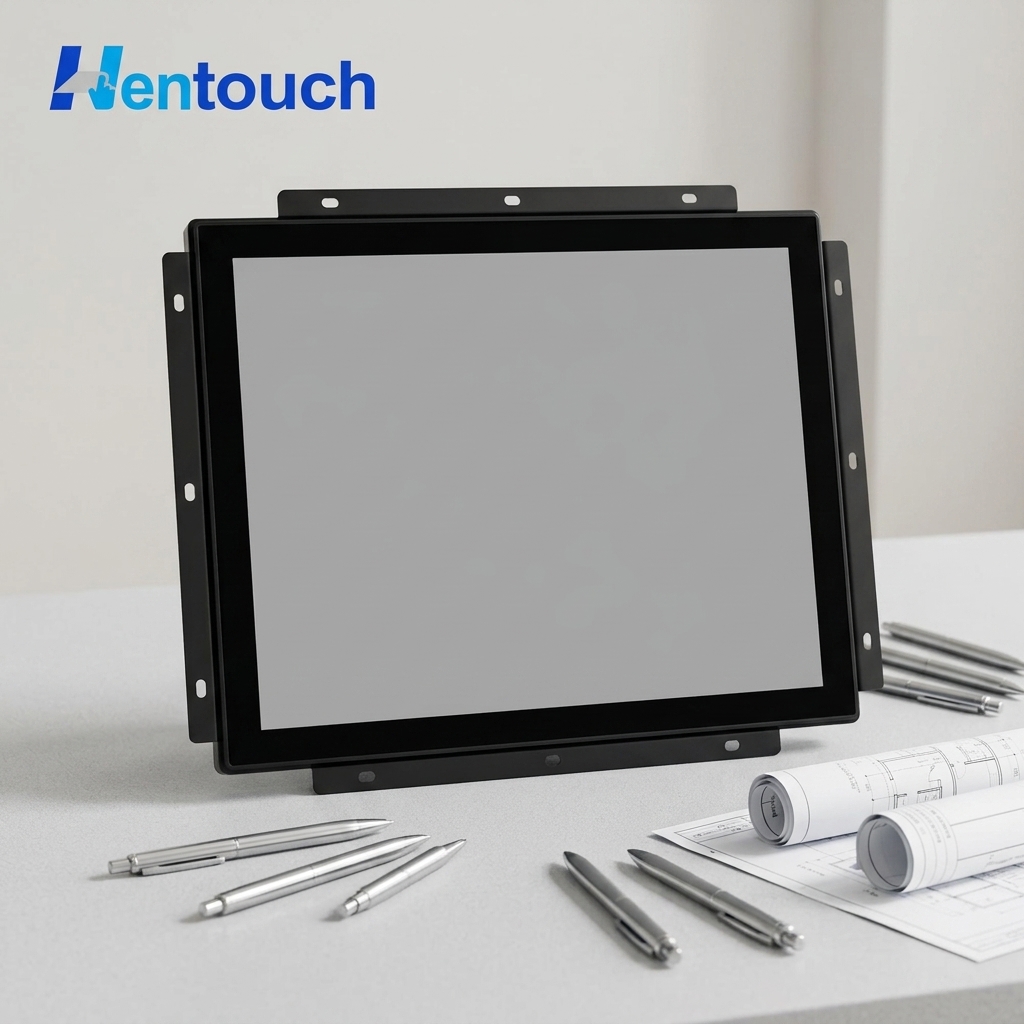

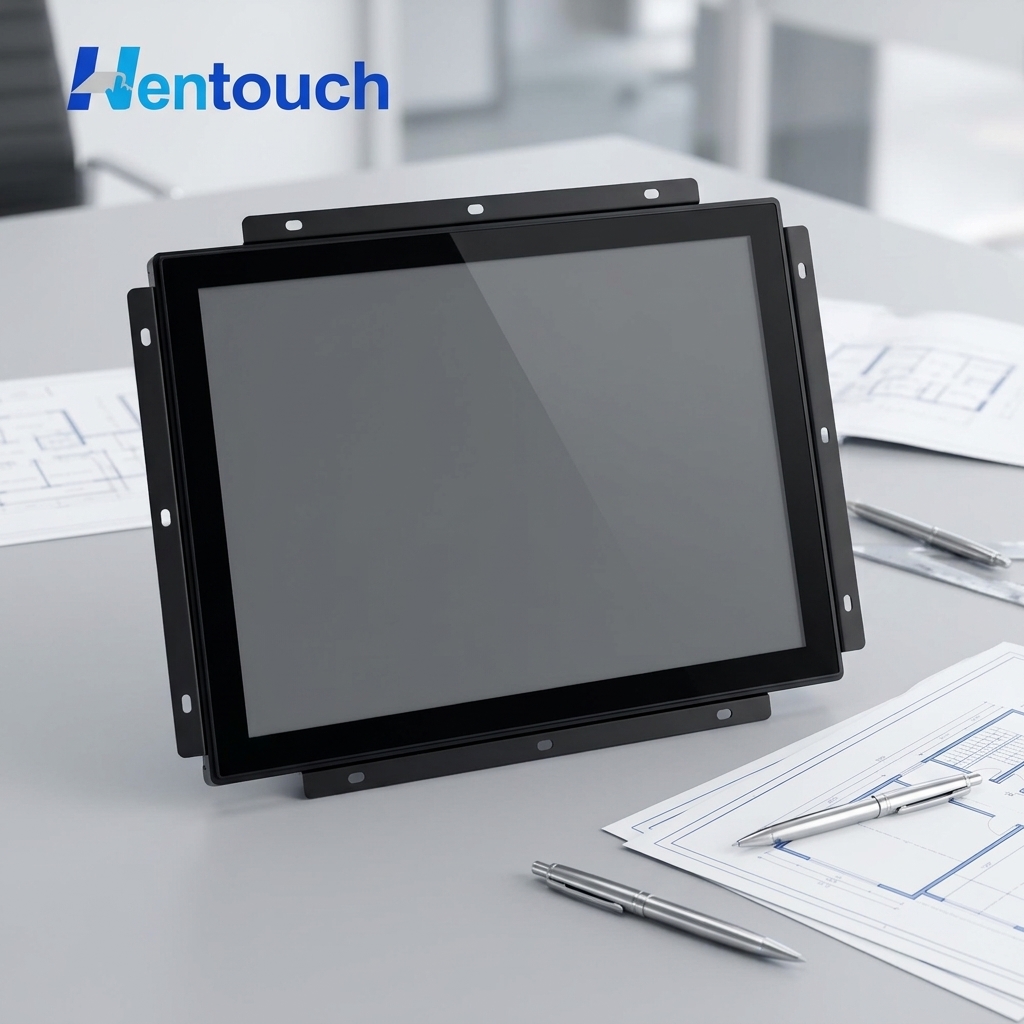

Open Frame Capacitive Touch Monitor – Hentouch Custom Industrial Touch Display

Our open frame touch monitor is a high-performance industrial touch display designed for embedded integration into kiosks, automation equipment, medical devices, vending machines and smart cabinet systems. Equipped with 10-point projected capacitive touch technology, it supports multi-touch simultaneous operation, delivering sensitive, smooth and accurate touch response even with light gloves. The front panel features IP65 waterproof and dustproof rating, effectively blocking water splashes, dust and oil stains for stable long-term operation in harsh workshop, outdoor and catering environments. Built with IK08 anti-vandal front glass, the screen resists impact, scratch and heavy bump damage, greatly extending service life in high-traffic public self-service terminals. We support full OEM & ODM customization to meet your personalized project demands: adjustable screen brightness (200–1500 nits sunlight-readable option), Windows & Android dual system compatibility, multiple interface configurations (HDMI, VGA, USB, DC power), custom screen sizes, metal mounting brackets, panel color and logo printing. With 15 years of professional touch screen supplier experience, we provide strict quality inspection, stable batch supply and one-stop technical support for global industrial and commercial clients.

Product Paramenters

Model：HT-TM19A

Diagonal：19 Inch

Color：Black/Silver

Display Type：Active matrix TFT LCD, LED backlight

Active Display Area：376.32 mm x 301.056 mm

Aspect Ratio：5：4

The Display Dimensions：428 mm x 355 mm，Thickness:48mm

Native Resolution：1280 x 1024 at 60 Hz

Number of Colors：16.7M

Number of Touches：10 -touch

Brightness (typical)：LCD 250 nits

Response (typical)：13 msec

Viewing Angle：Horizontal: 170° (85°/85°) Vertical: 170° (85°/85°)

Contrast Ratio：1000：1

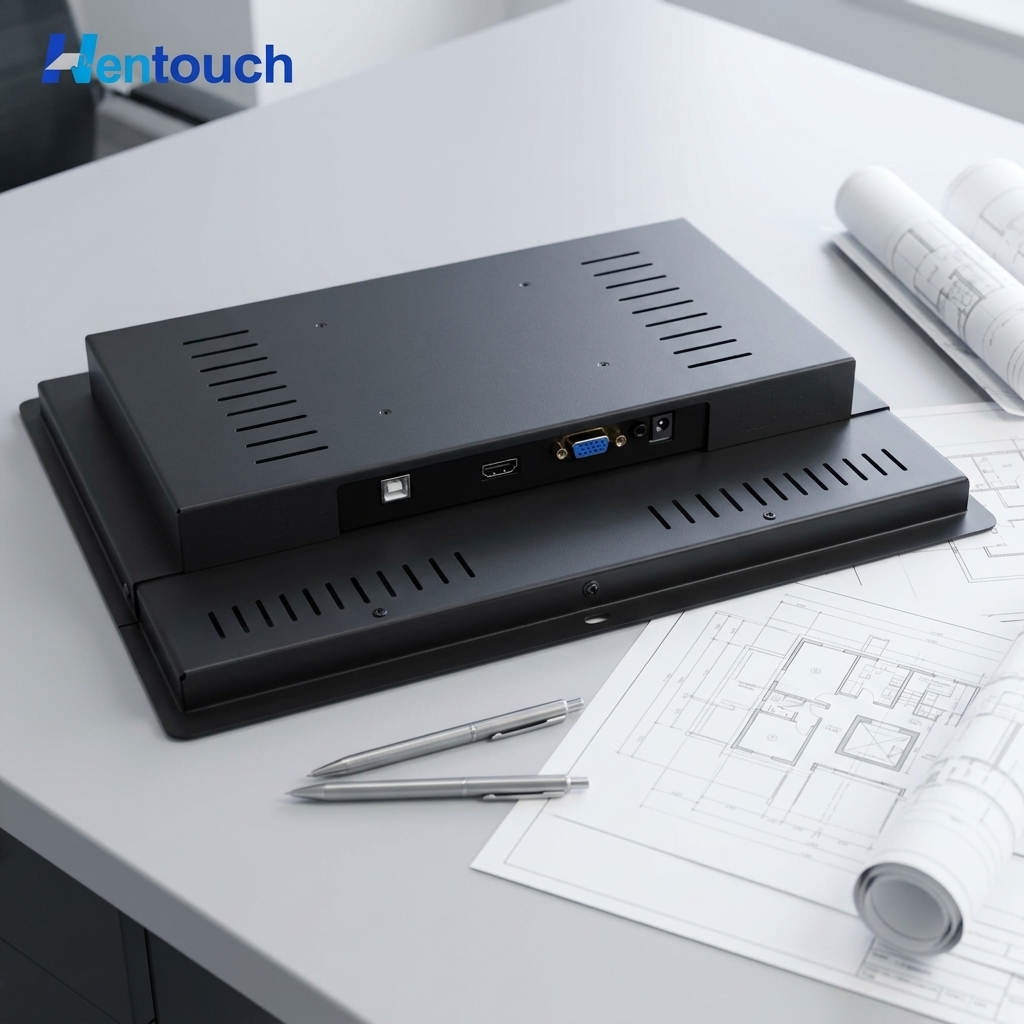

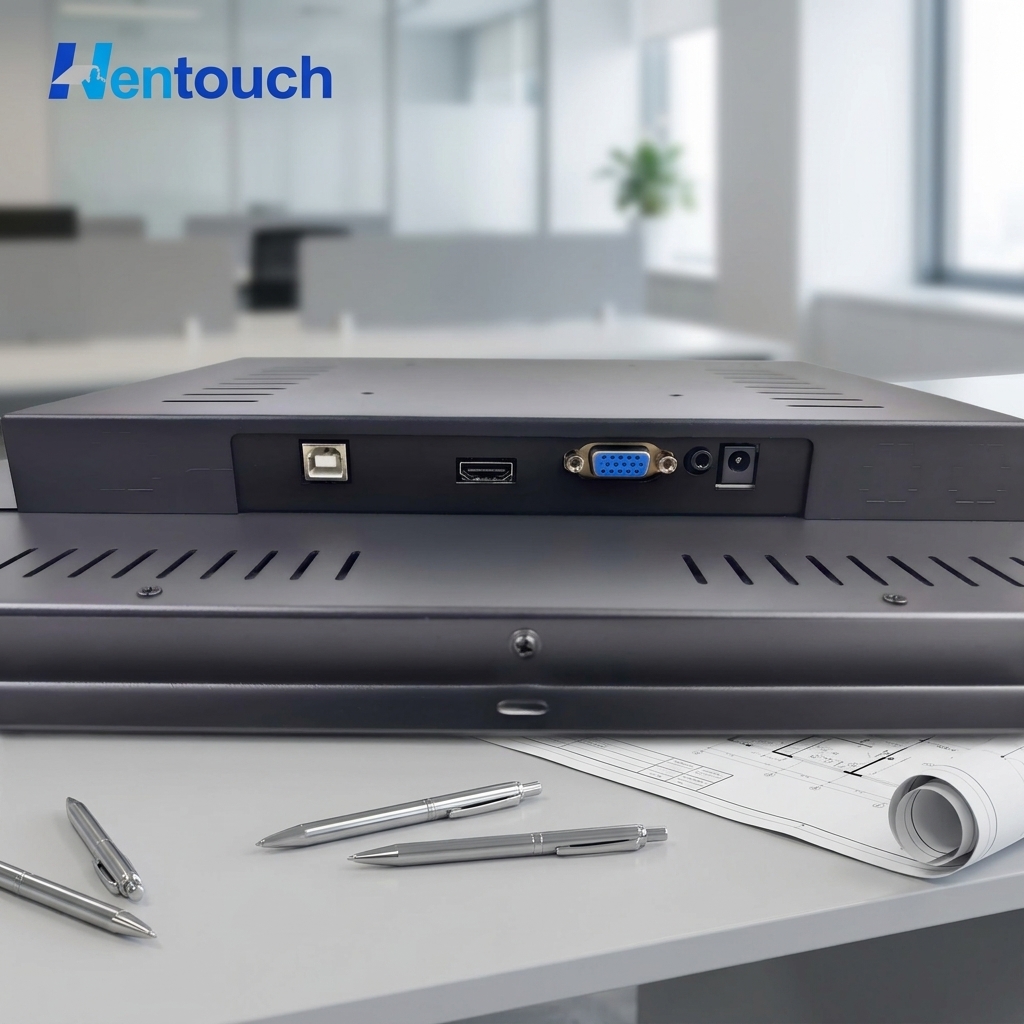

Input video formats：Analog VGA and HDMI（DP optional）

Sweep frequency：Horizontal: 31.5~60.2kHz; vertical: 56.3~75Hz

Touch Technology：projected capacitive
                                     Touch chip：ILITEK
                                     Touch points：10
                                     Touch supply voltage：5V
                                     Touch interface：USB
                                     Touch support system：Windows，Android，linux

Power：External DC, input voltage DC: 12V;
                Screen power supply selection：3.3V/5V/12V
                Power Management：The board's standby power consumption is <0.5W.
                Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD: 5.5 mm(± 0 .1mm);                          Needle Inner Diameter: 2.1 mm (± 0 .1 mm); Cartridge Length: 9.5 mm(± 0 .5 mm)
                External DC , input voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS (for
                all in one PC) - Type: DC cartridge receptacle; Cartridge ID: 5.5 mm(± 0 .3 mm);
                Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (± 0 .3 mm);

Power consumption (standard)：Only Display13.5W(Typ.)

Temperature：Operating: 0℃~50℃; Storage: -20℃~ 60℃

Humidity：Operating: 5% to 90% (no condensation); Storage: 5% to 90% (noncondensing)
MTBF：50000 hours

Weight (approx.)：Unpackaged : 5.5kg ; Packaged 8kg

Shipping Dimensions：640mm*150mm*490mm

Warranty：12 months

Mounting Options：100mm or 75mm VESA mounting,open bracket mounting

Water and dust protection/Explosion-proof：IP65(front)/IK08(front)

Surface Treatment：AF/AR/AG (optional)

What’s in the box：HDMI cable, VGA cable, Touch USB cable, Adapter,Power Cord

Agency Approvals：FCC , CE , China RoHS

Company Profile

Applications

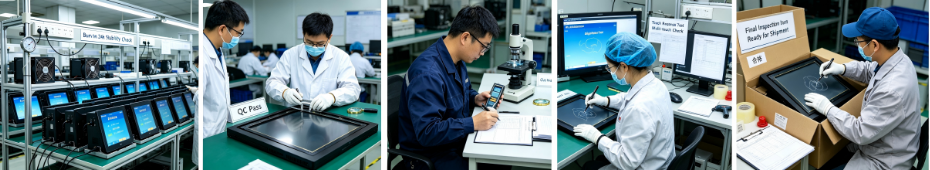

Quality Control
