Capacitive Touch Panel
8.4/10.1/10.4/12.1/12.3/15/15.6/17.3/18.5/19/19.5/21.5/23.6/23.8/27/32/55 Inch Custom PCAP Capacitive Touch Screen Panel
Projected Capacitive Touch Panel – Hentouch Custom Capacitive Touch Panel
Main features
* High image clarity
* Free of drift
* Z-axis pressure recognition
* Strong mechanical strength
* Short response time
* Compact size for easy integration
* Customization available on glass sensor size, driver, accessories
* With 3mm tempered glass, vandal proof function.
* 10 points multi touch, no ghost touch
* USB,RS232,Serial,I2C Interface Touch Screen
* OS: W indows,L inux,A ndroid,Imac,R aspberry pi,I mac

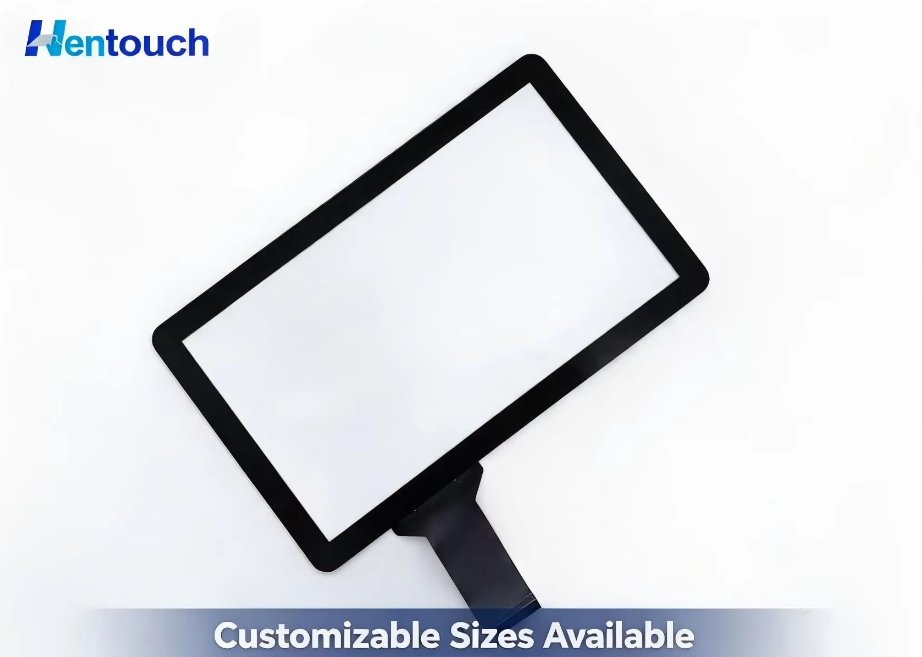

* Custoimization is accepted ( shape and size; silkscreen; logo and icon;ect)

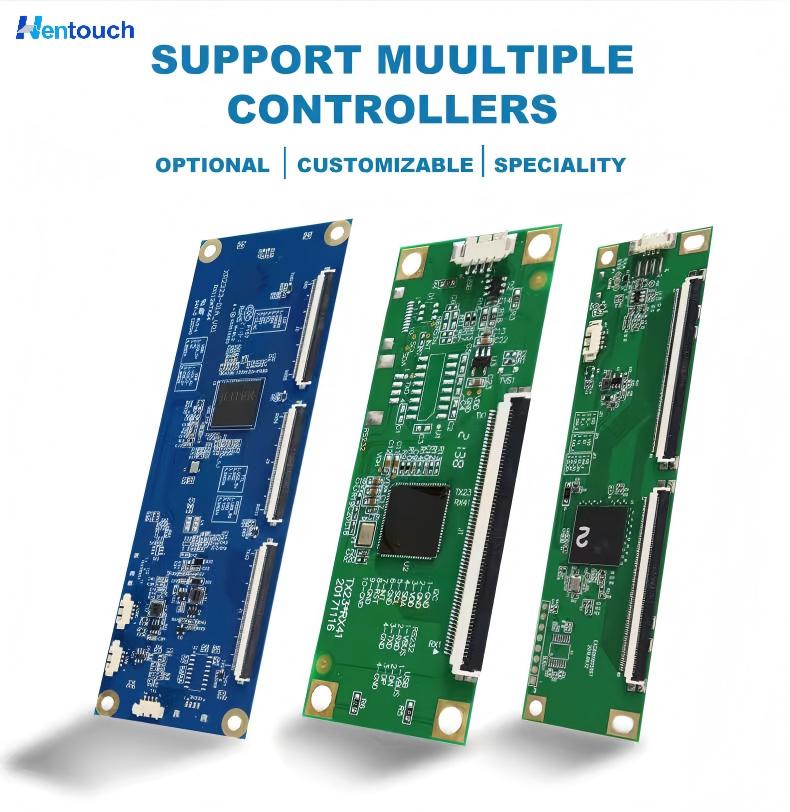

* EETI,ILKTEK,Controller Board Driver
Type-Projected touch panel
Total Thickness -2.0±0.2/ 3.9±0.2 mm
Interface -USB2.0 Type A
Number of touch point - 5/10
Input voltage - 5V
Response time -10 ms
Pressure endurance value-<10g
Input -Hand writing or capacitive pen
Transmittance ->90%
Surface Hardness-≥6H
Usage-The specification is applied to transparent and handwriting input capacitive touch panels

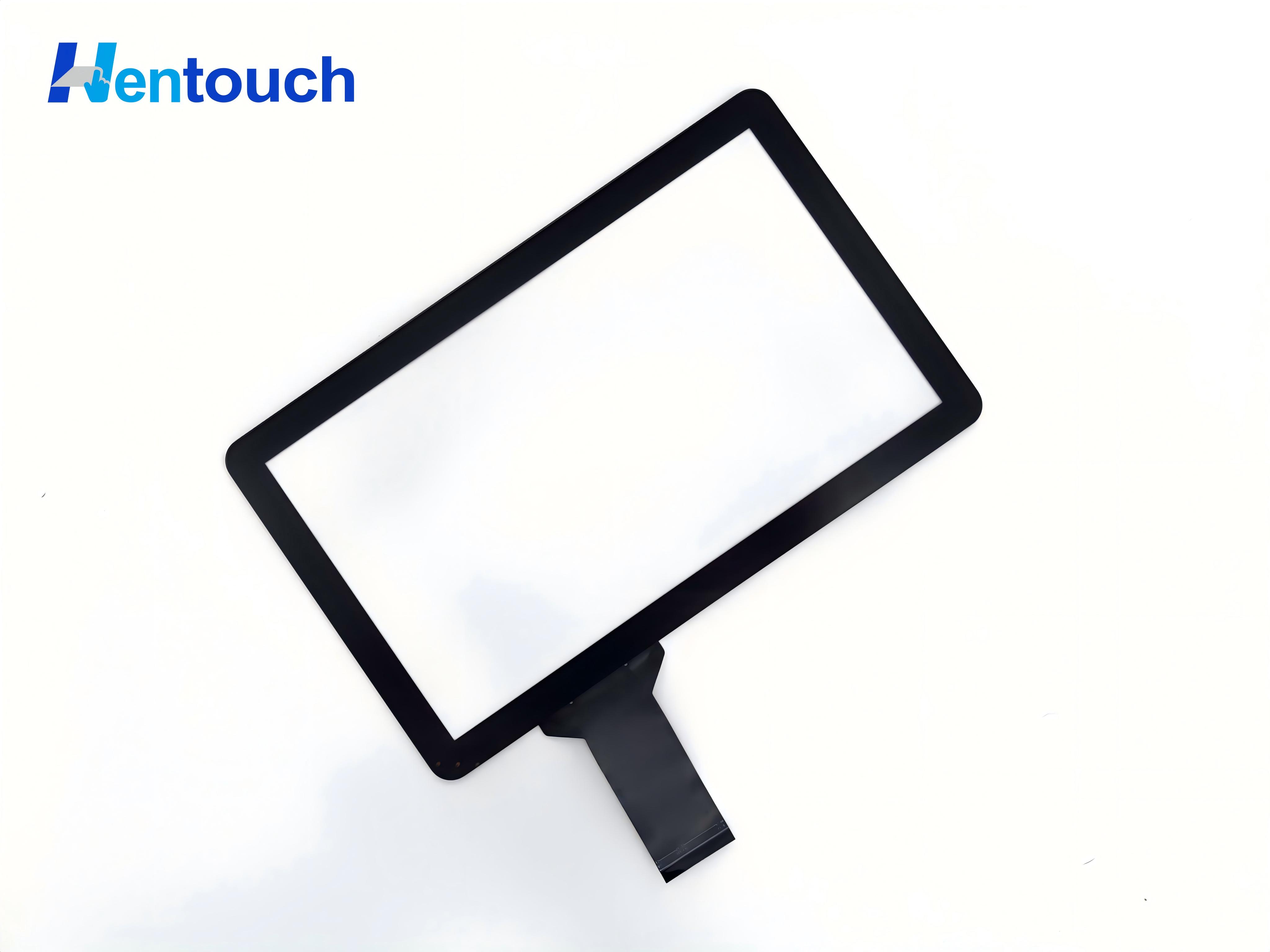

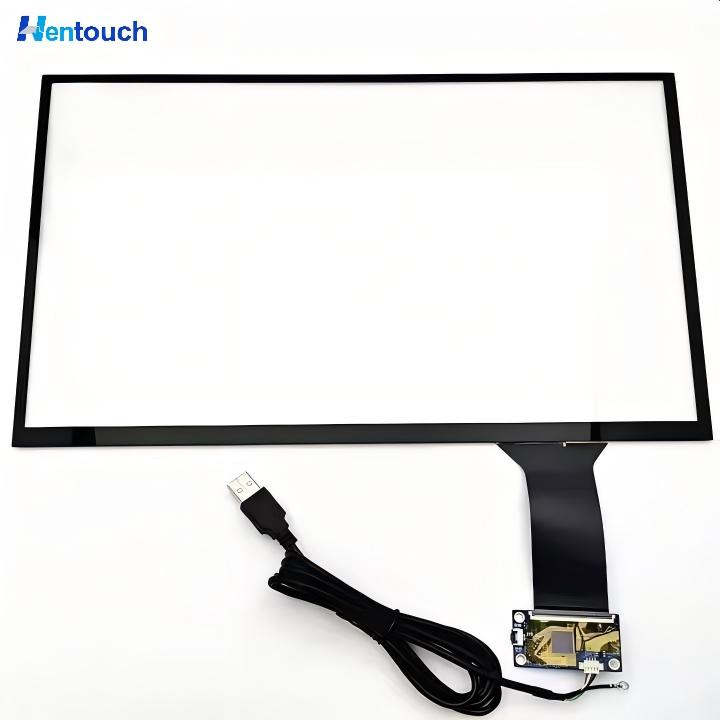

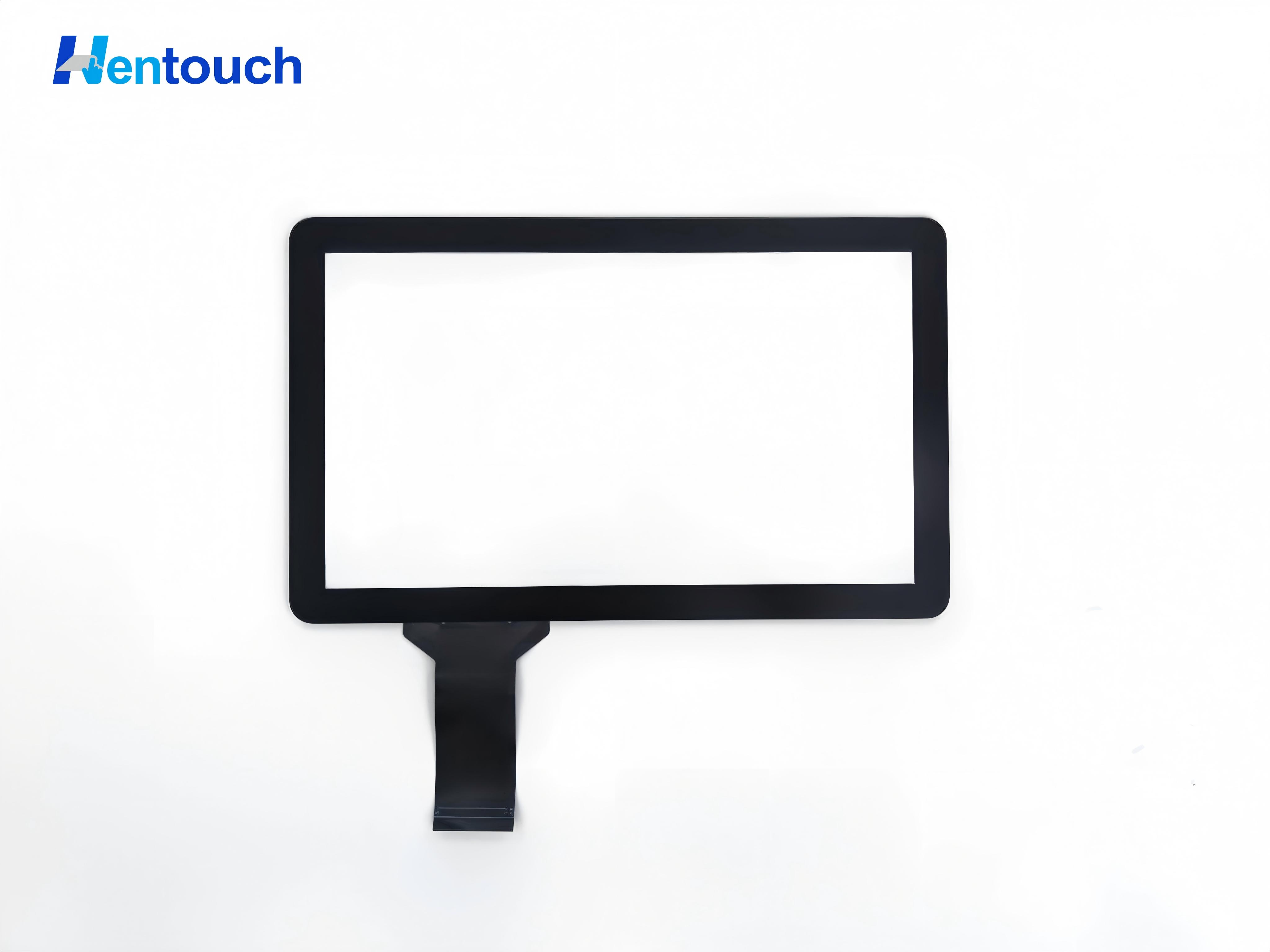

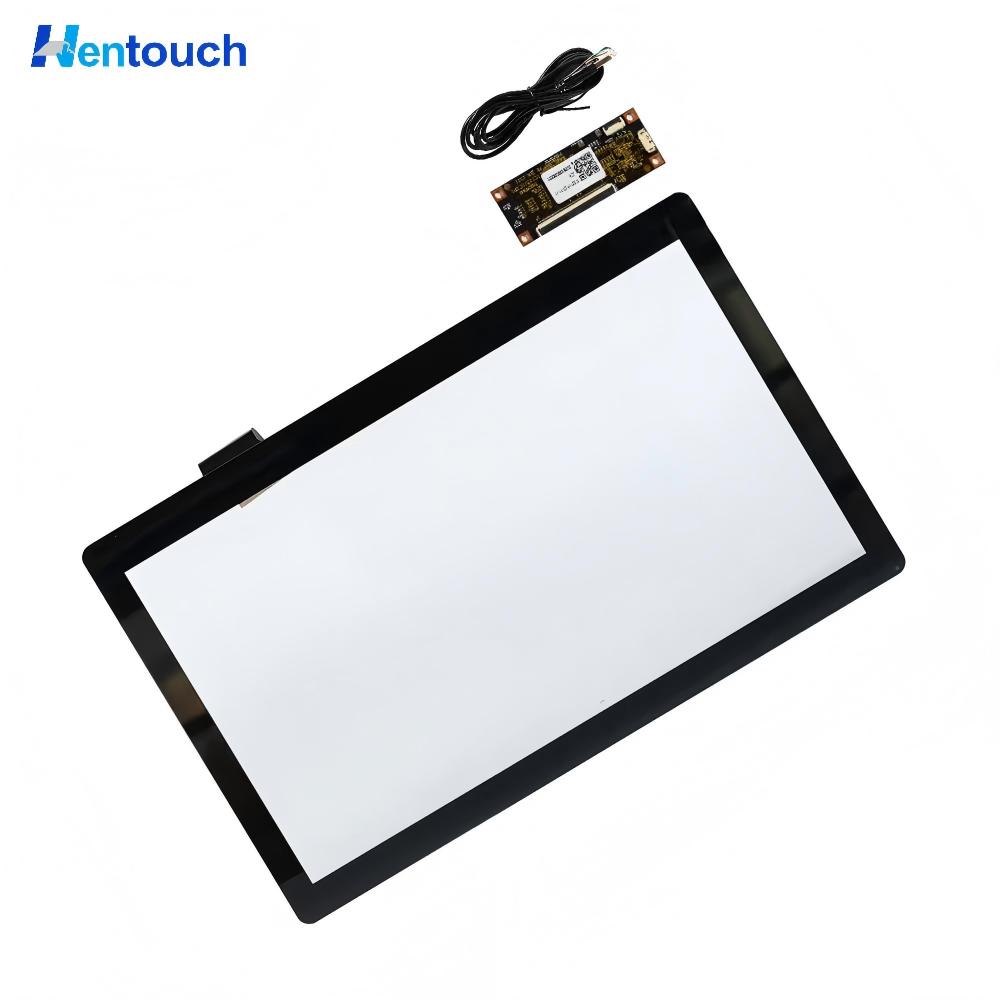

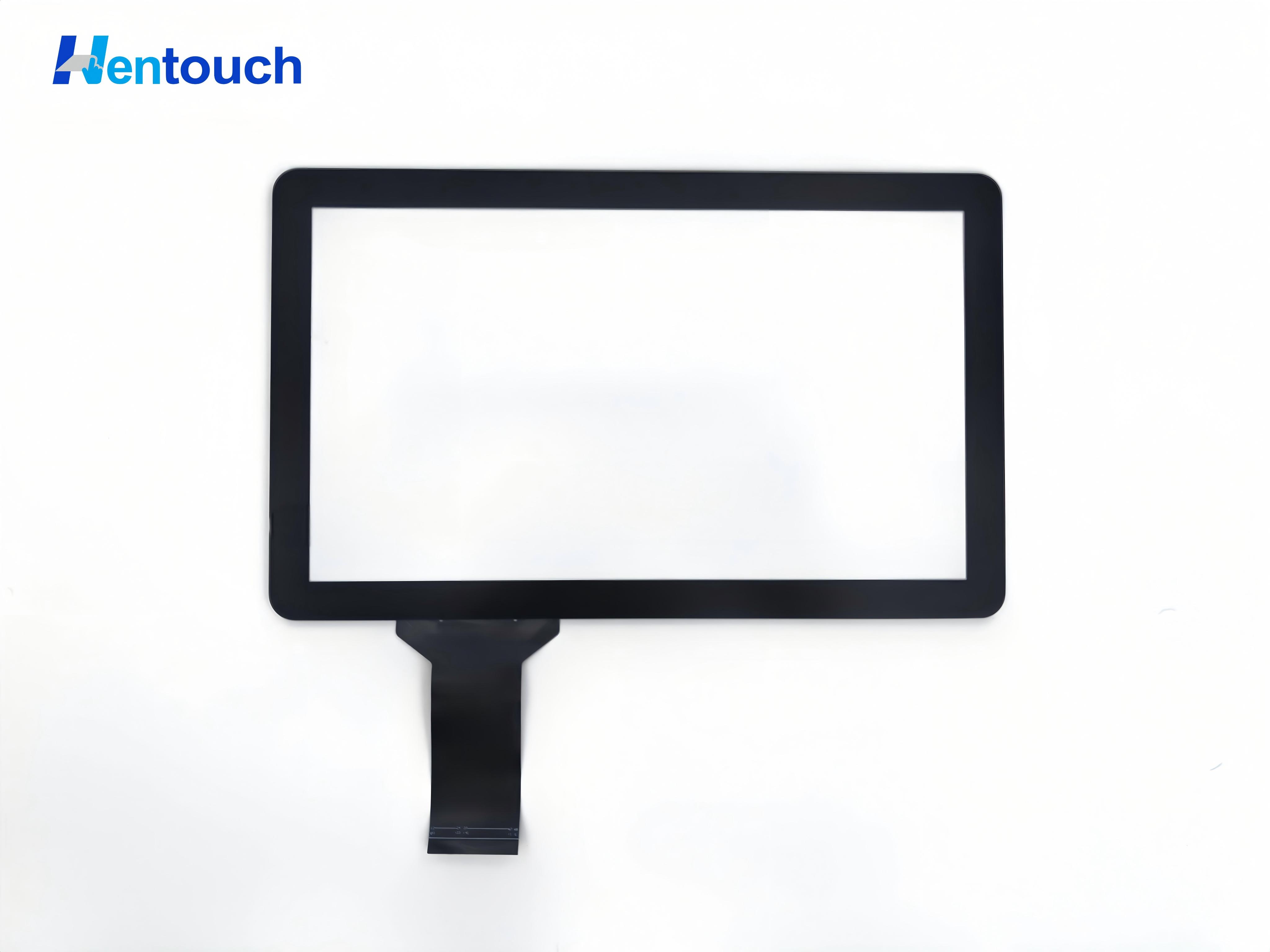

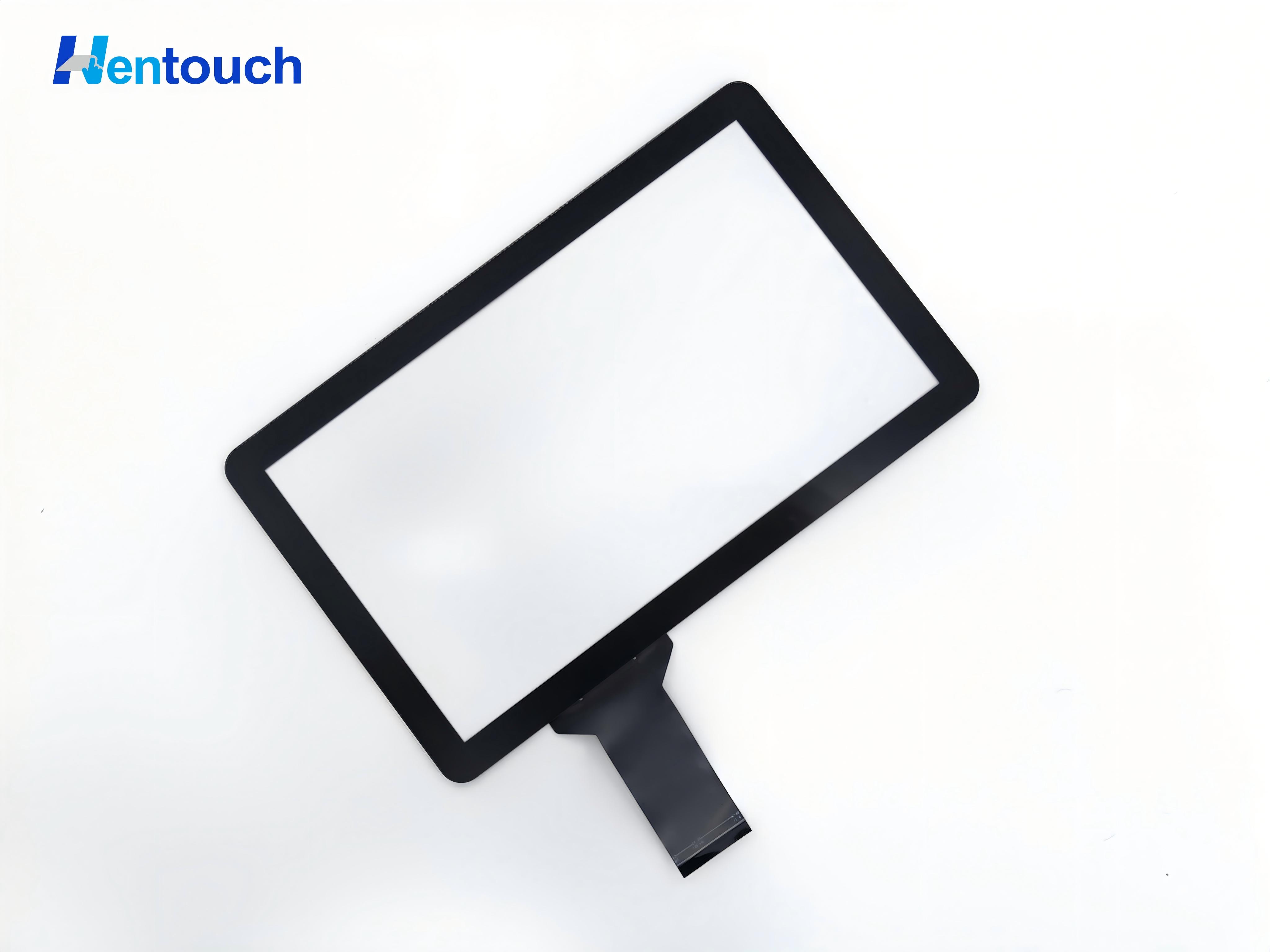

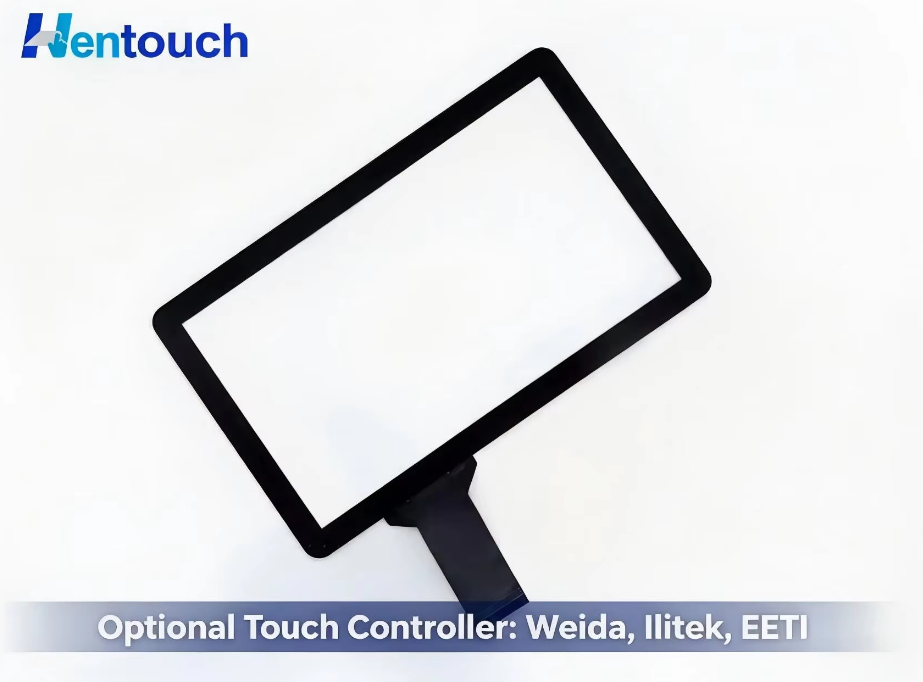

Details Images

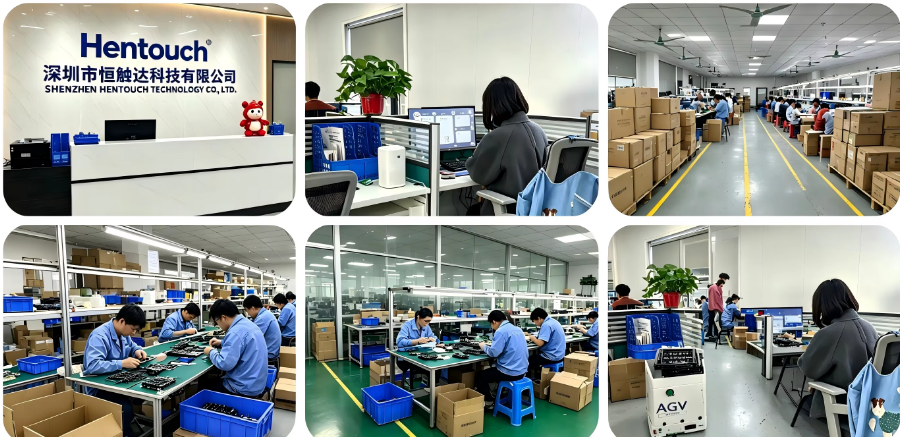

Company Profile

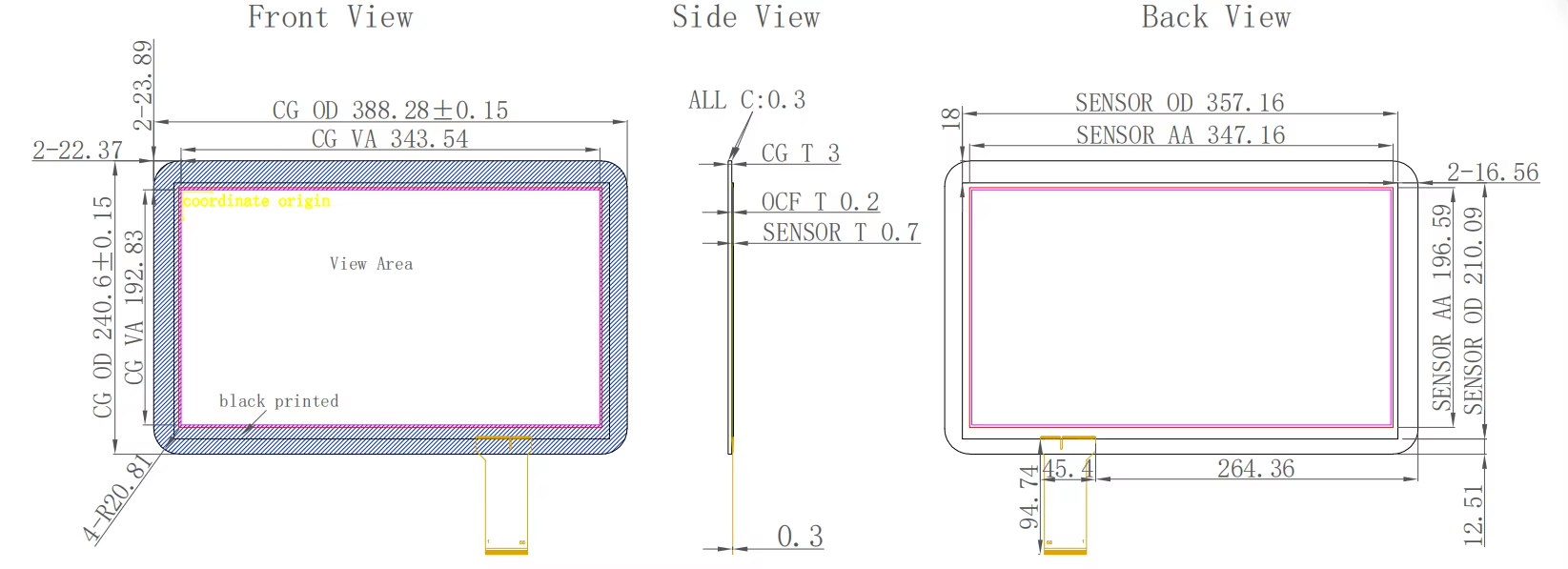

Product Paramenters
| Model | HT-PCAP-15.6A-1 |
| Size | 15.6 Inch |
| Object For Touch | Finger，touch pen and conductive object |
| Min.bject Sizes For Touch | dia≧8mm |
| Interpolation Resolution | 16384(W)*9600(D) |
| Report Rate | >100Hz |
| Touch Accuracy | ±2（over 90% Area） |
| Interface | USB |
| Product Structure | G+G or G+F, G+F+F |
| Surface hardness | >6H |
| Transparency rate | 85% |

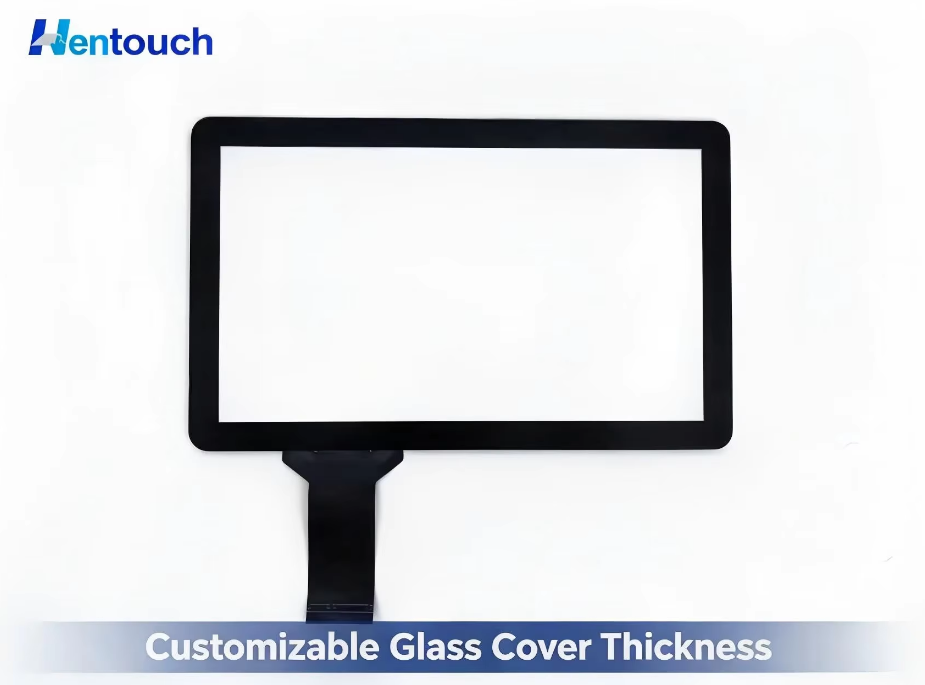

| Cover Thickness | 1.0mm and 3.0mm or custom |
| Touch point | 10 Points, Multi Touch |
| Color | Black or custom |
| Material | Toughened glass |
| Touch Type | Capacitive touch |
| Touch Accuracy | 1mm |
| Drive IC | EETI Weida , ILITEK, SIS |
| Response Time | 10ms |

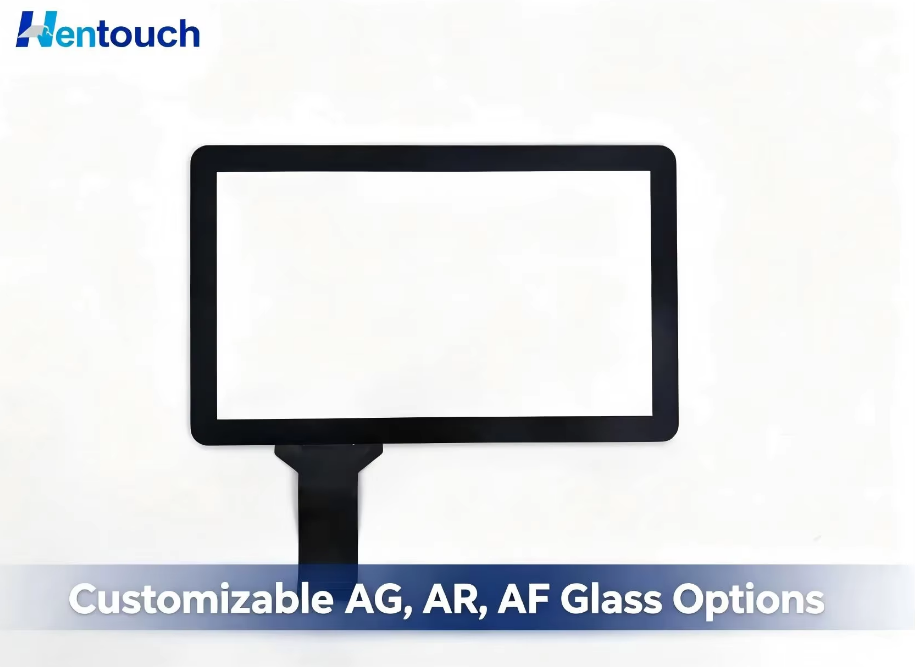

| Cover Glass | Tempered glass,AG glass,AF glass available |
| Package | 10 pcs/box , Carton box with foam |
| Operating System | Support Windows/Andriod/ MacOS/Linux |
| Certification | RoHS , CCC , IS09001, CE, FCC, LVD |
| After-sales Service | Call Center and on-line Technical Support, Onsite Training and Inspection, Return and Replacement, Repair |
Applications
Quality Control
Product packaging
Exhibition
