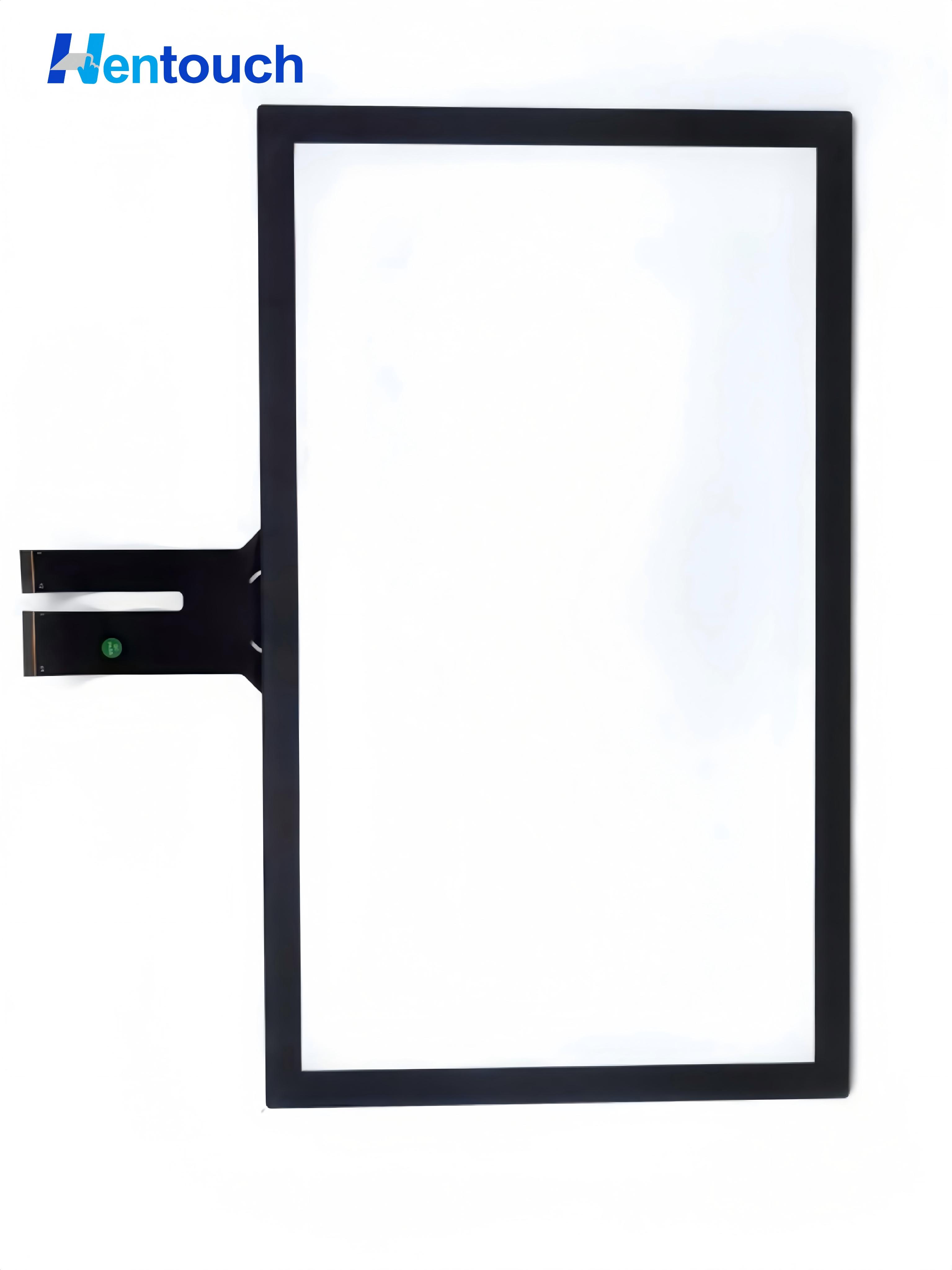

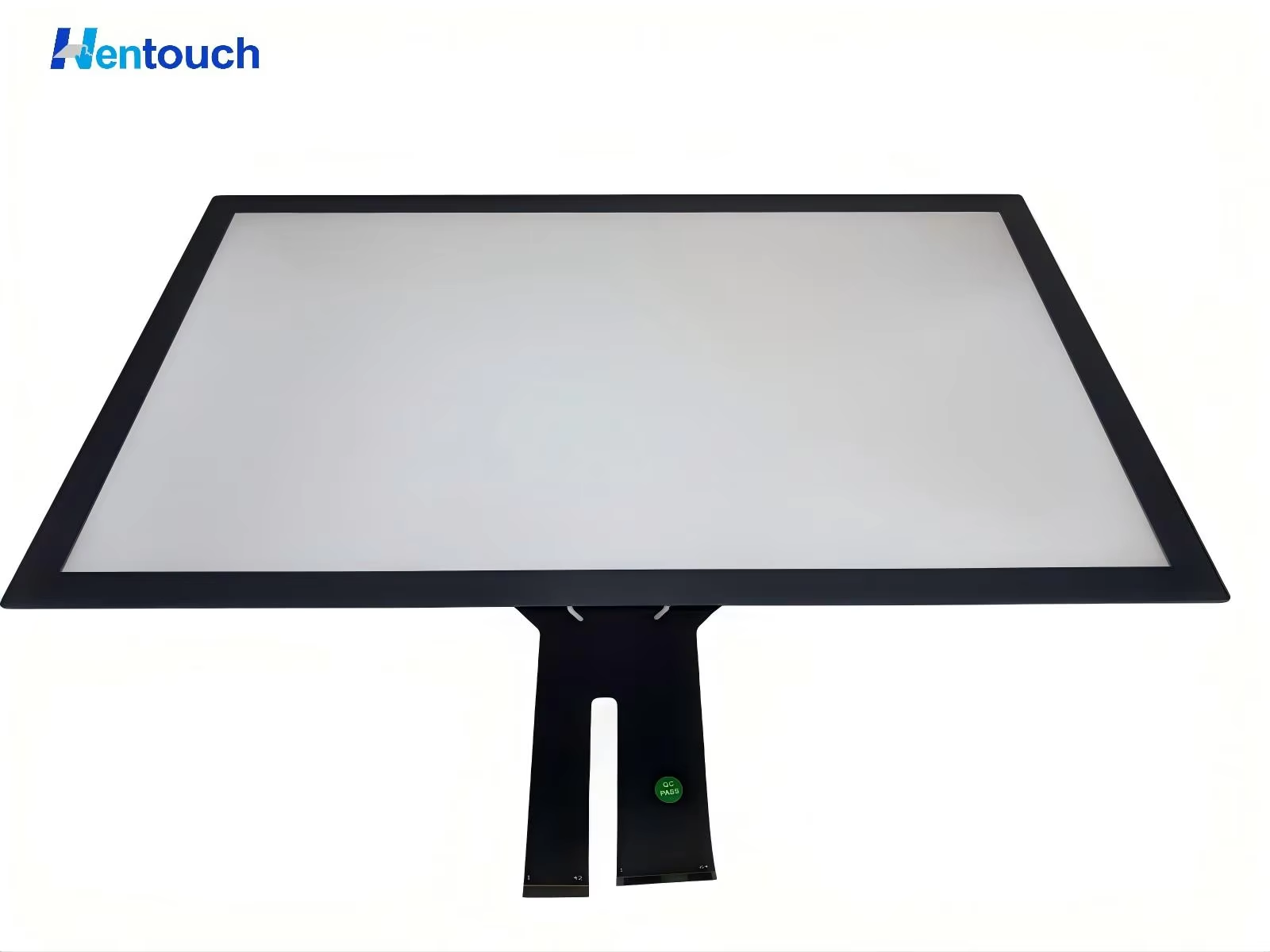

Projected Capacitive Touch Panel – Hentouch Custom Capacitive Touch Panel

Main features

* High image clarity

* Free of drift

* Z-axis pressure recognition

* Strong mechanical strength

* Short response time

* Compact size for easy integration

* Customization available on glass sensor size, driver, accessories

* With 3mm tempered glass, vandal proof function.

* 10 points multi touch, no ghost touch

* USB,RS232,Serial,I2C Interface Touch Screen

* OS: W indows,L inux,A ndroid,Imac,R aspberry pi,I mac

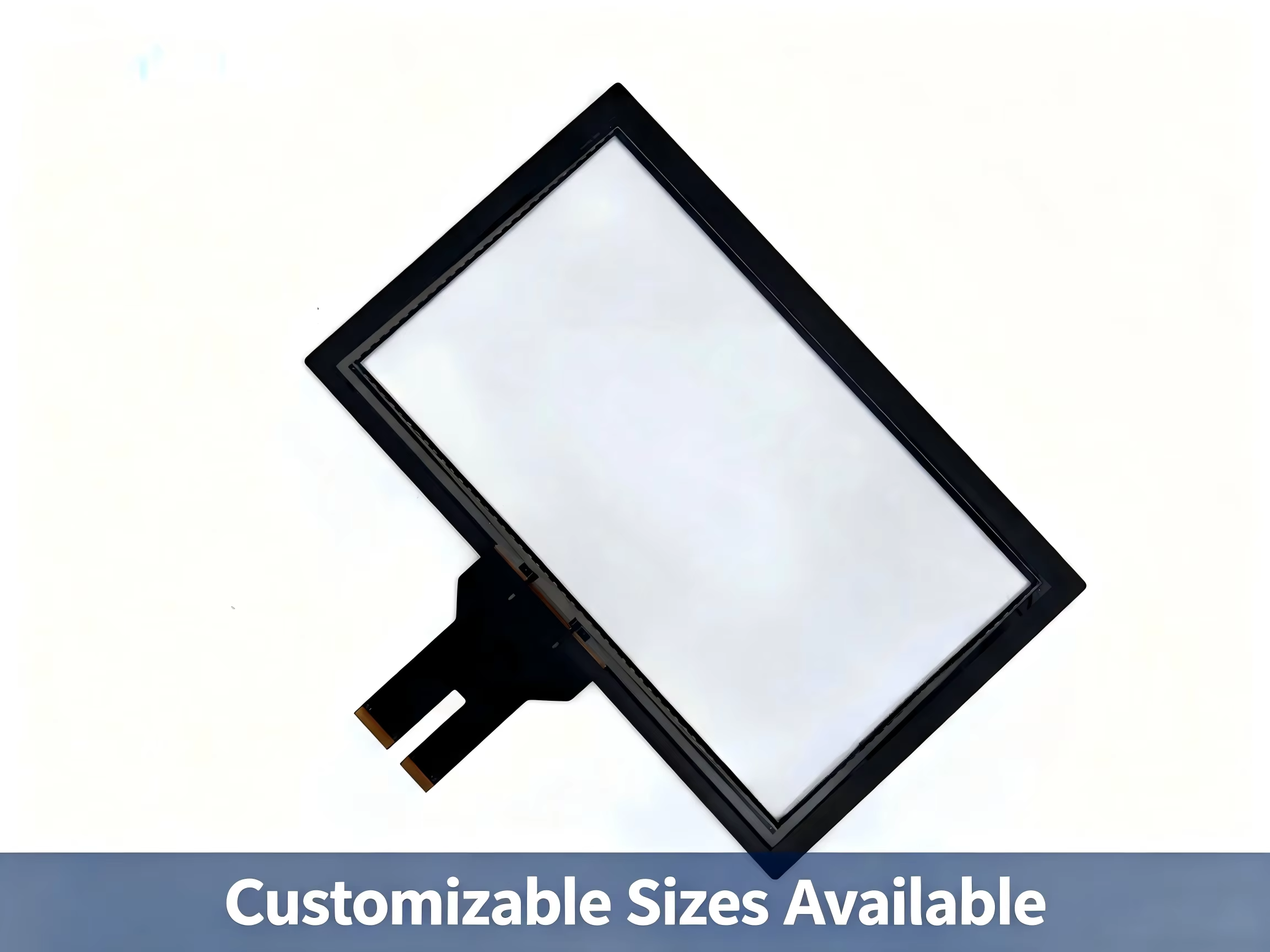

* Custoimization is accepted ( shape and size; silkscreen; logo and icon;ect)

* EETI,ILKTEK,Controller Board Driver

Type-Projected touch panel

Total Thickness -2.0±0.2/ 3.9±0.2 mm

Interface -USB2.0 Type A

Number of touch point - 5/10

Input voltage - 5V

Response time -10 ms

Pressure endurance value-<10g

Input -Hand writing or capacitive pen

Transmittance ->90%

Surface Hardness-≥6H

Usage-The specification is applied to transparent and handwriting input capacitive touch panels

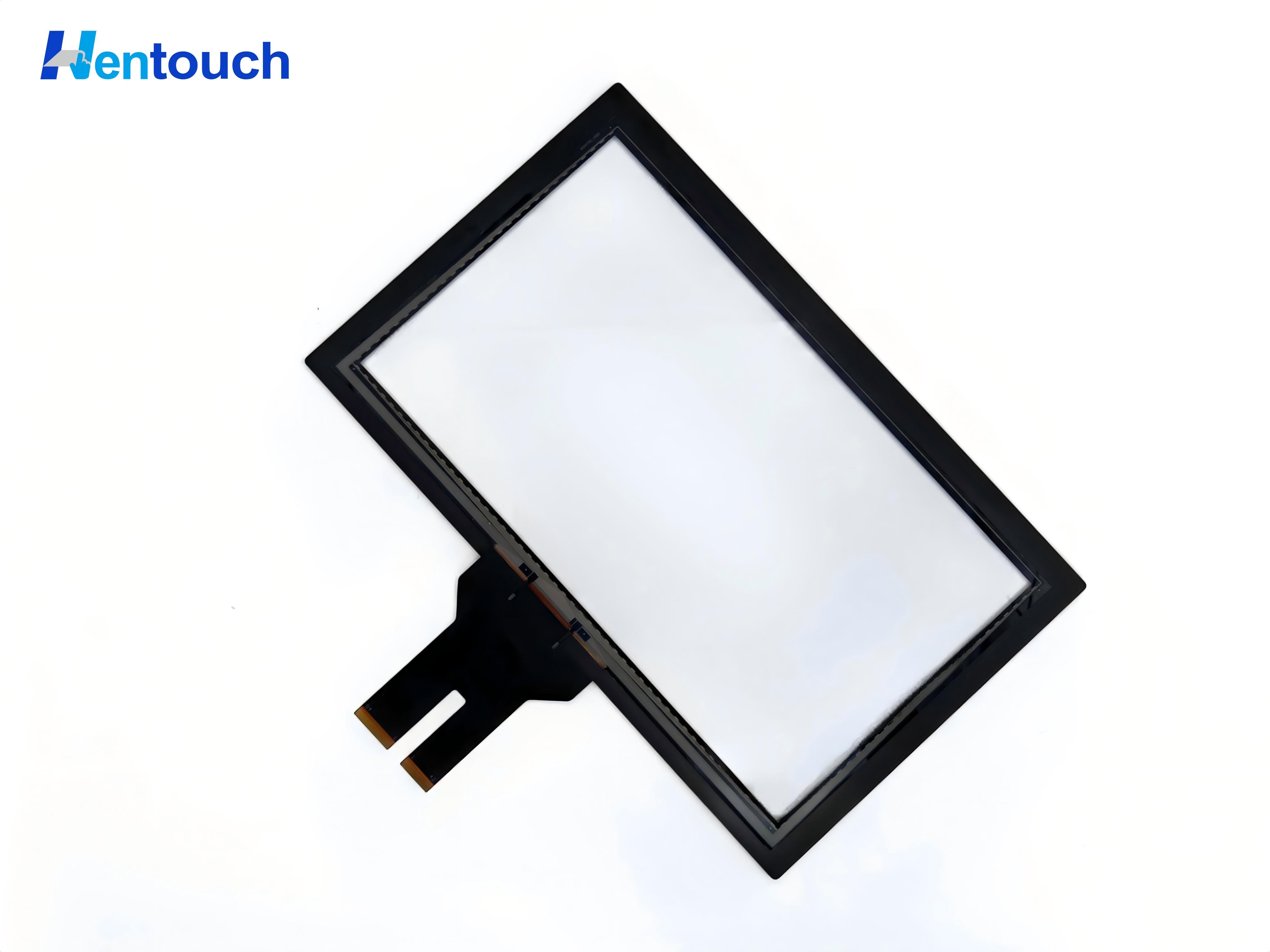

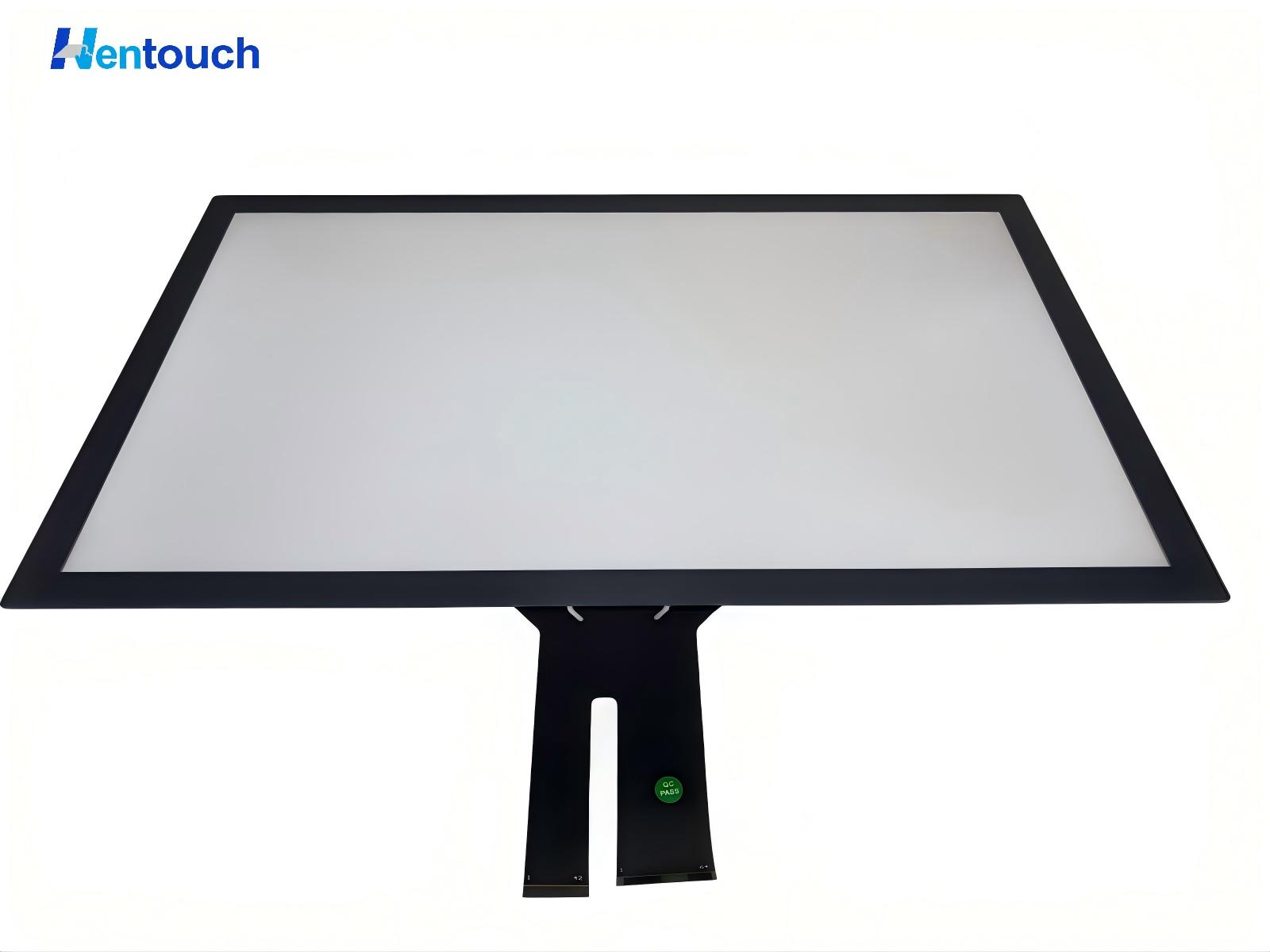

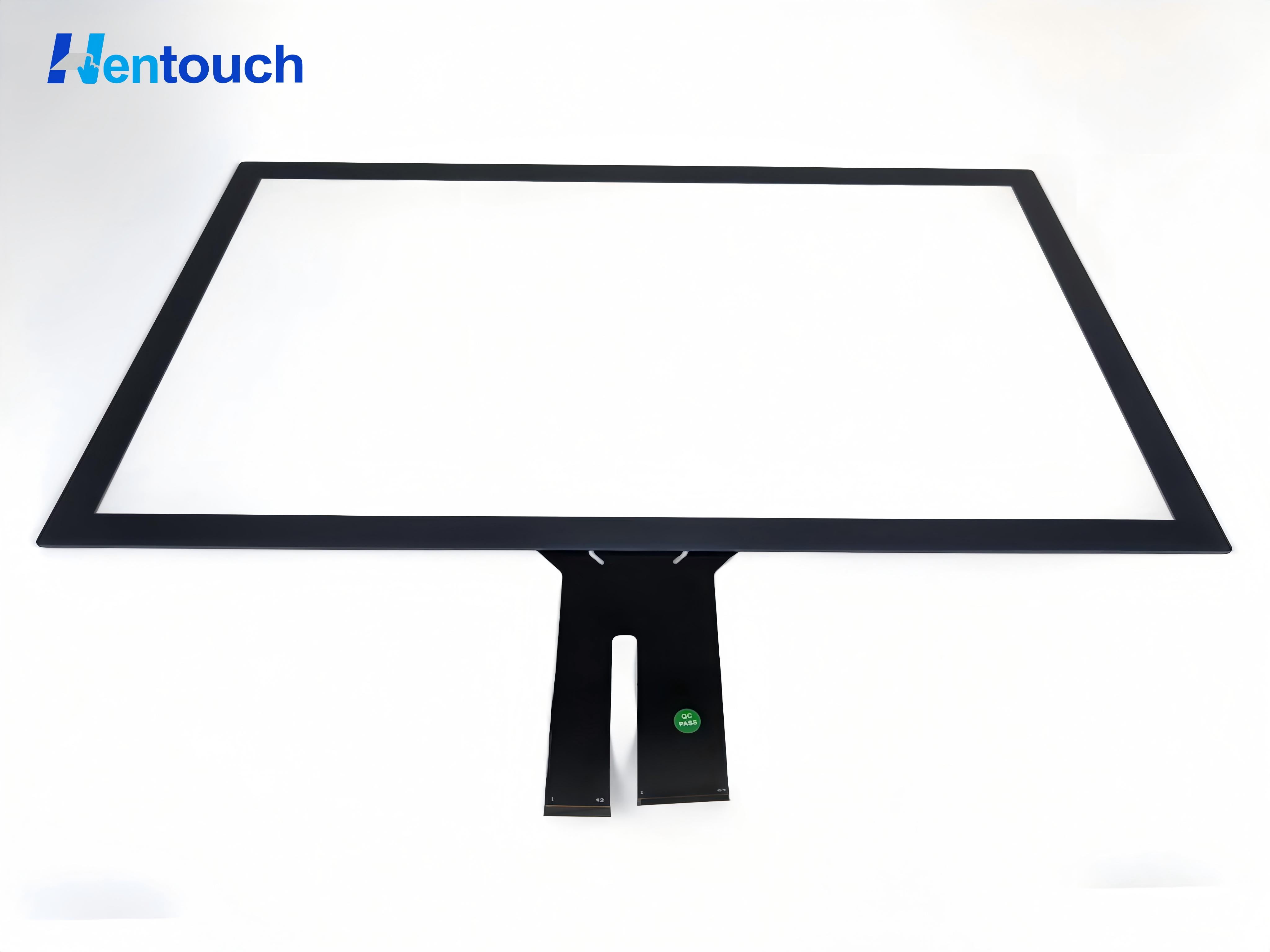

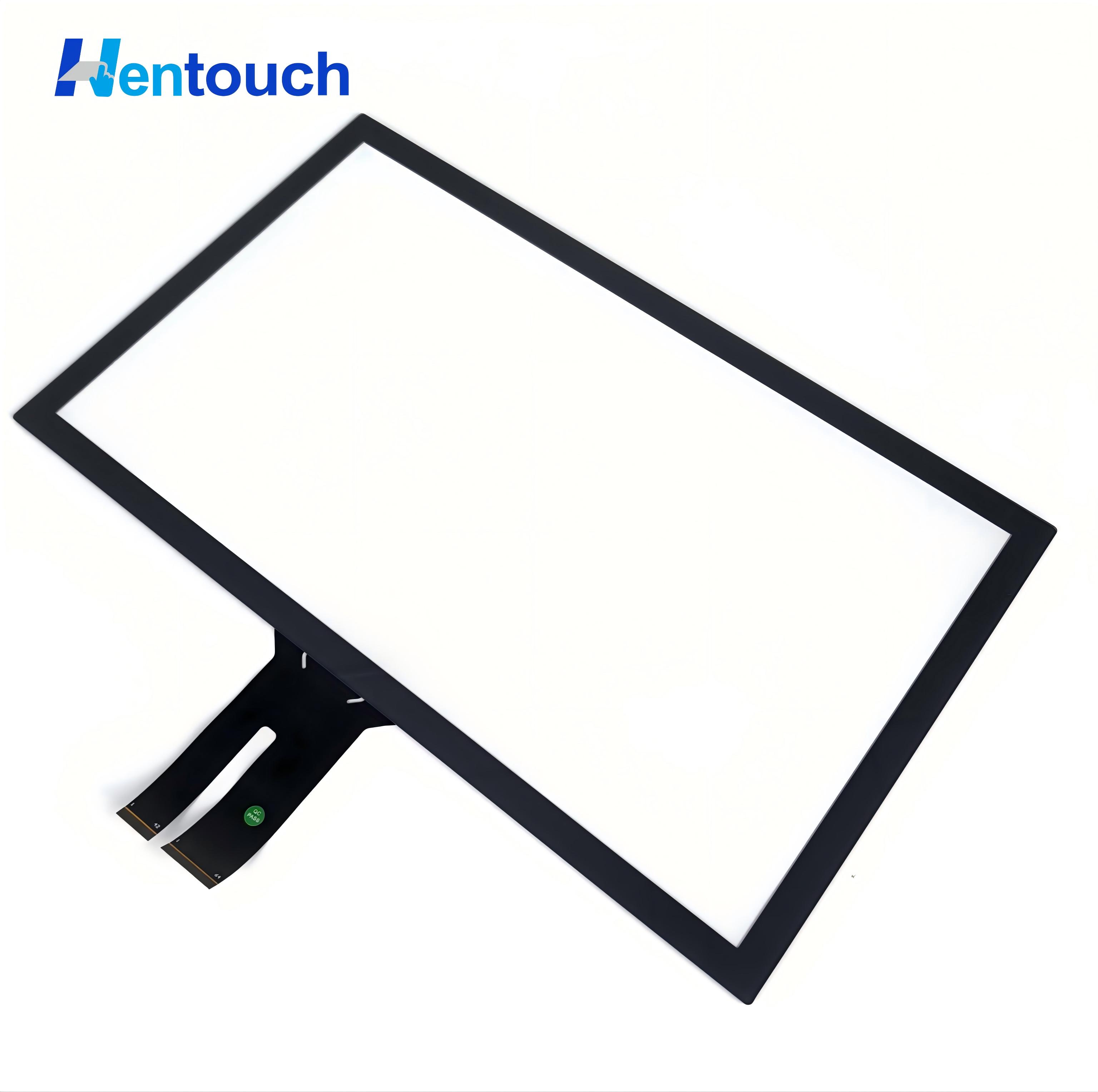

Details Images

Company Profile

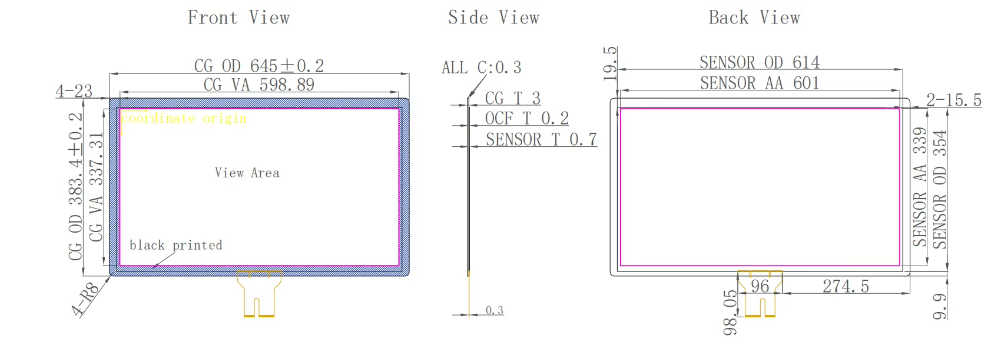

Product Paramenters

Model ： HT-PCAP-27A-1

Size    ：27 Inch

Object For Touch ：Finger，touch pen and conductive object

Min.bject Sizes For Touch：dia≧8mm

Interpolation Resolution：16384(W)*9600(D)

Report Rate：>100Hz

Touch Accuracy：±2（over 90% Area）

Interface：USB

Product Structure：G+G or G+F, G+F+F

Surface hardness：>6H

Transparency rate：85%

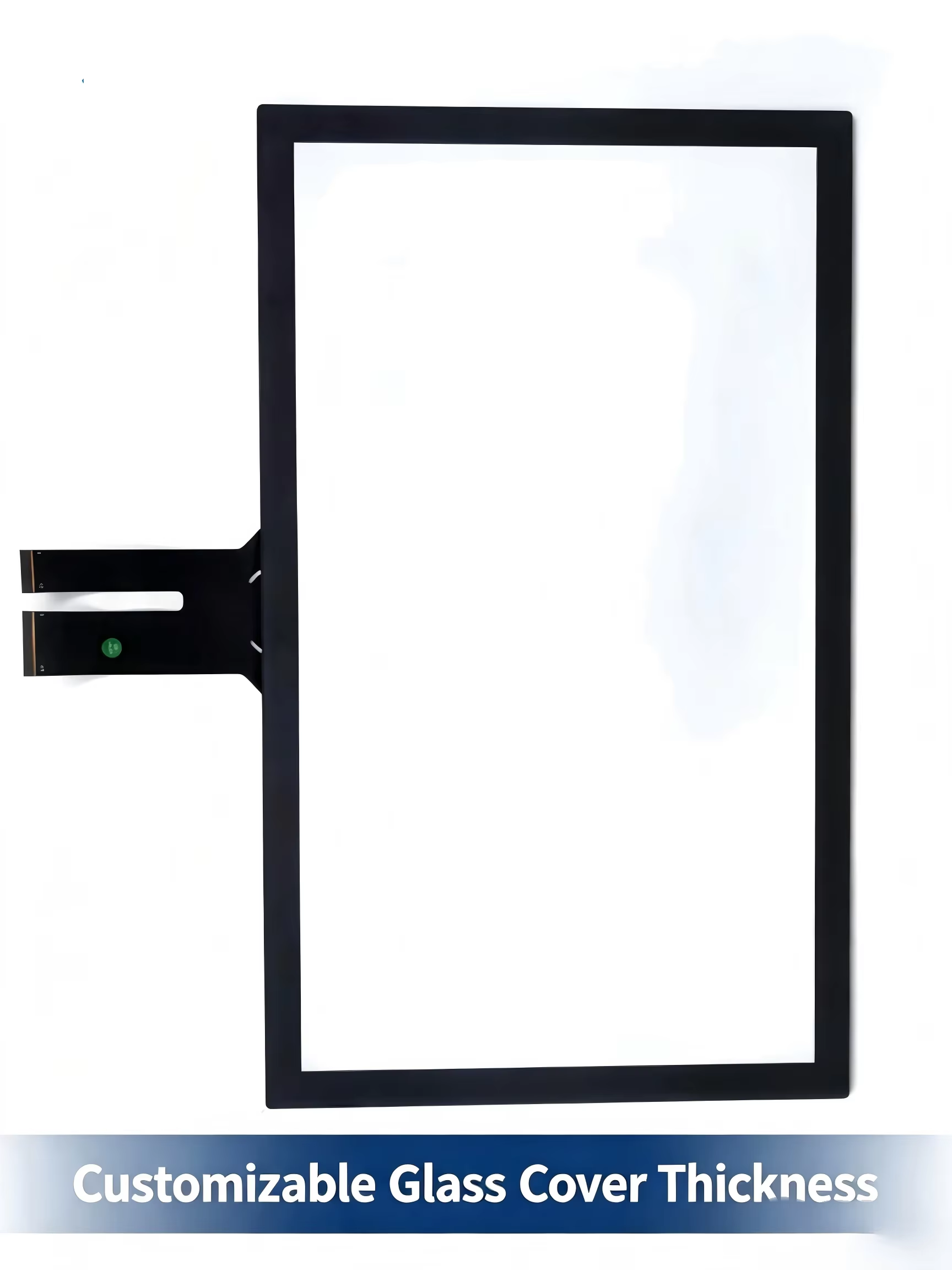

Cover Thickness：1.0mm and 3.0mm or custom

Touch point：10 Points, Multi Touch

Color：Black or custom

Material：Toughened glass

Touch Type：Capacitive touch

Touch Accuracy ：1mm

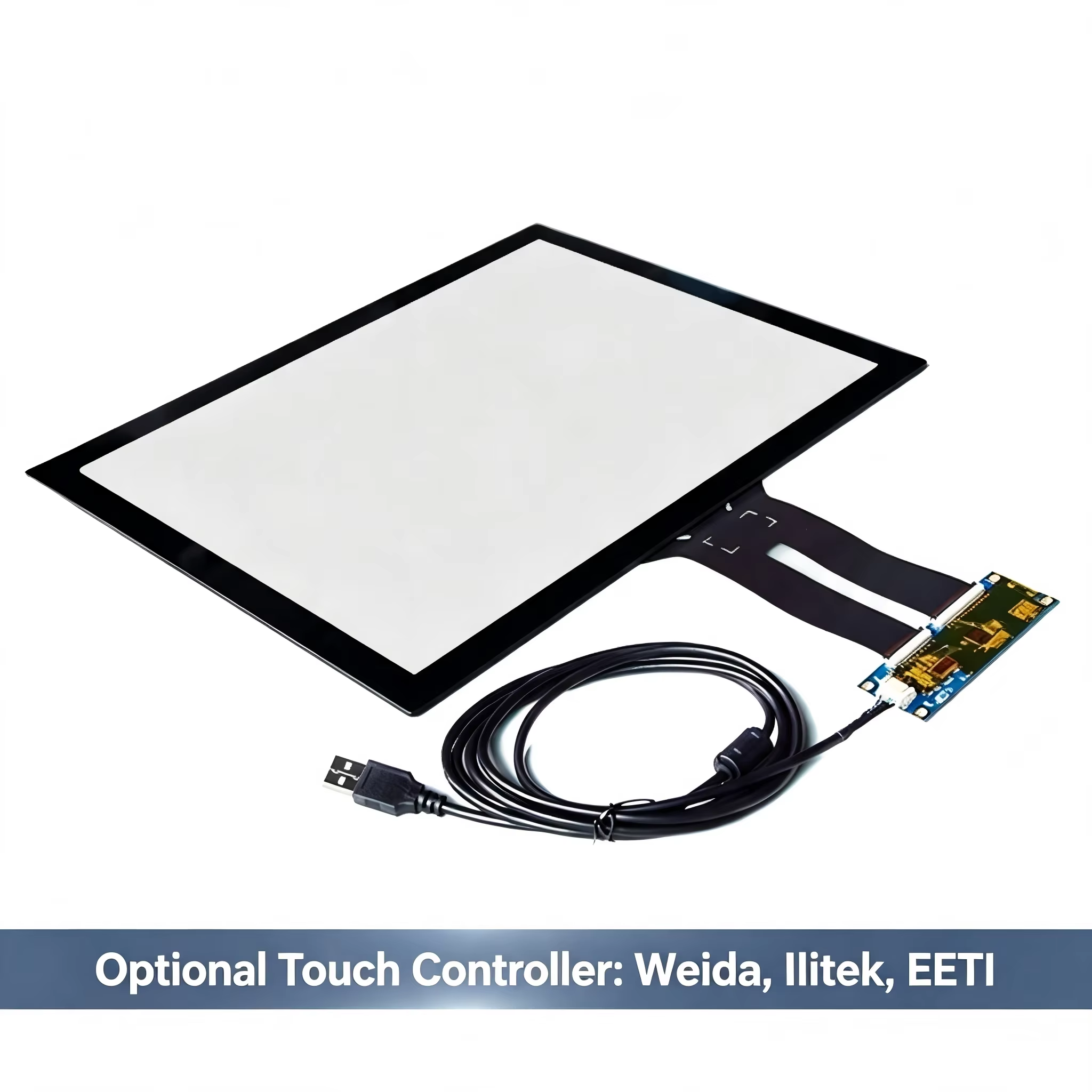

Drive IC：EETI Weida , ILITEK, SIS

Response Time：10ms

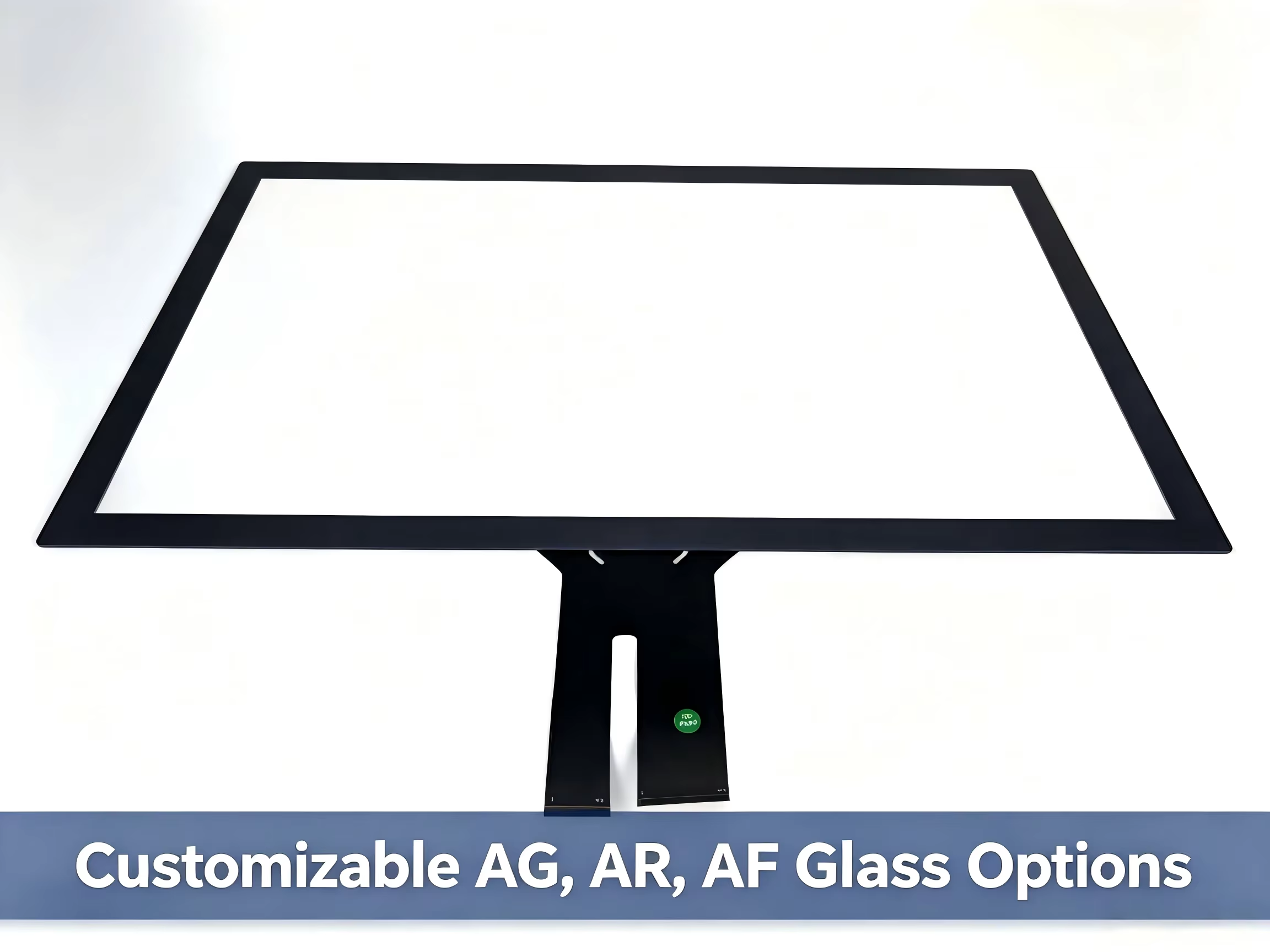

Cover Glass：Tempered glass,AG glass,AF glass available

Package：10 pcs/box , Carton box with foam

Operating System：Support Windows/Andriod/ MacOS/Linux

Certification：RoHS , CCC , IS09001, CE, FCC, LVD

After-sales Service：Call Center and on-line Technical Support, Onsite Training and Inspection, Return and Replacement, Repair
