5 Wire Resistive Touch Panel – Hentouch Custom Resistive Touch Panel

Products Advantage 1. Flexible,very light weight,easy installation

2. 4096x4096 HD resolution,high precision, fast response

3. USB port, touch a correction, high stability, and never drift

4. Touch intensity, high sensitivity, touch-free drift

5. can withstand more than 10 million times touch Click

6. You can use a pen, finger, gloved hand, and many other media touch touch

7. can be adapted to harsh environments, such as splashing drops of water flow down, etc.

8. supports single touch point, one-time calibration

9. product through CE, FCC, RoHS certification, stable and reliable performance

Product application

1.Car computer and GPS

2.Open touch TV/PC

3.Touch POS terminal

4.LCD/LED touch monitor

5.Touch all-in-one pc

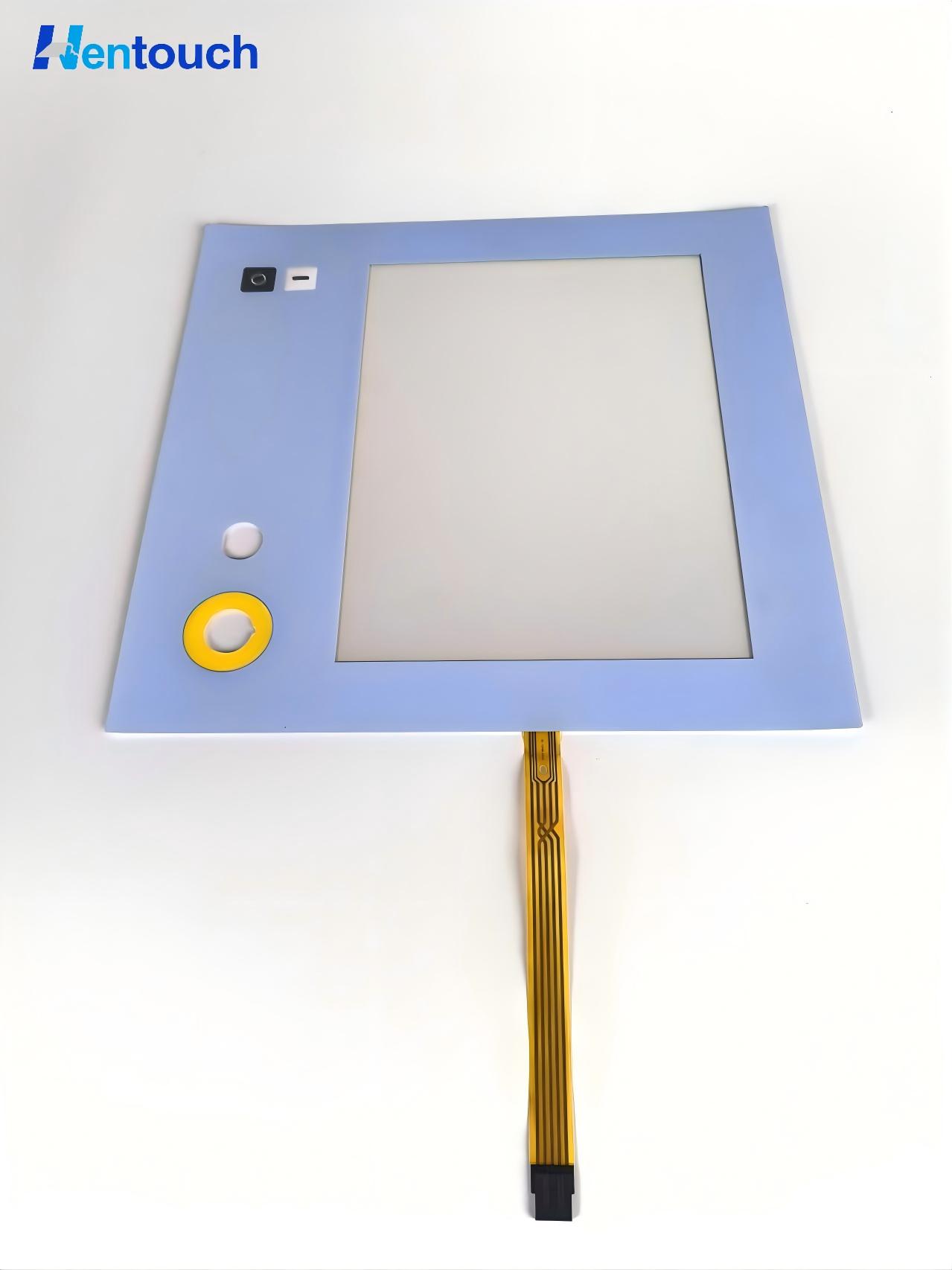

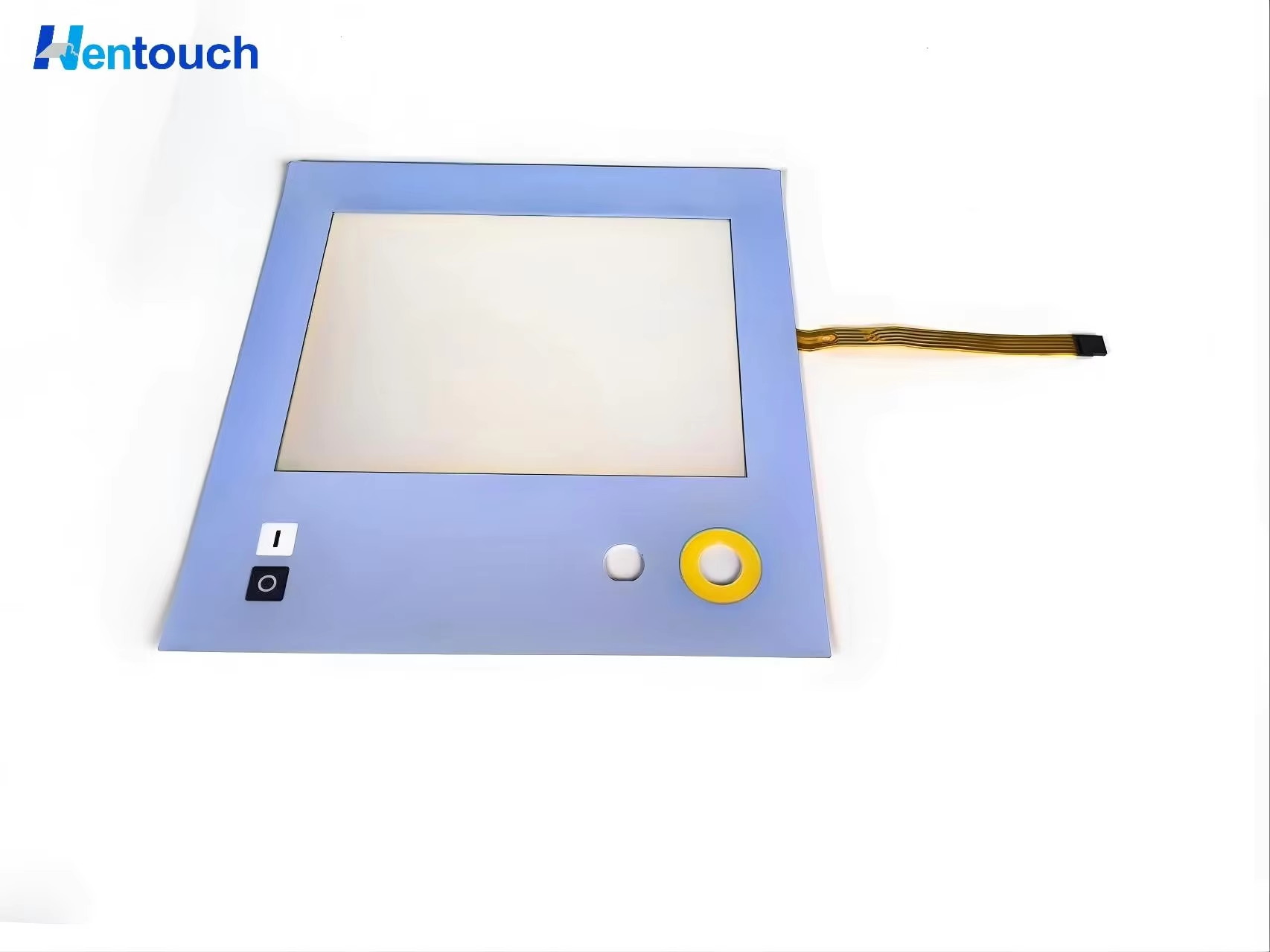

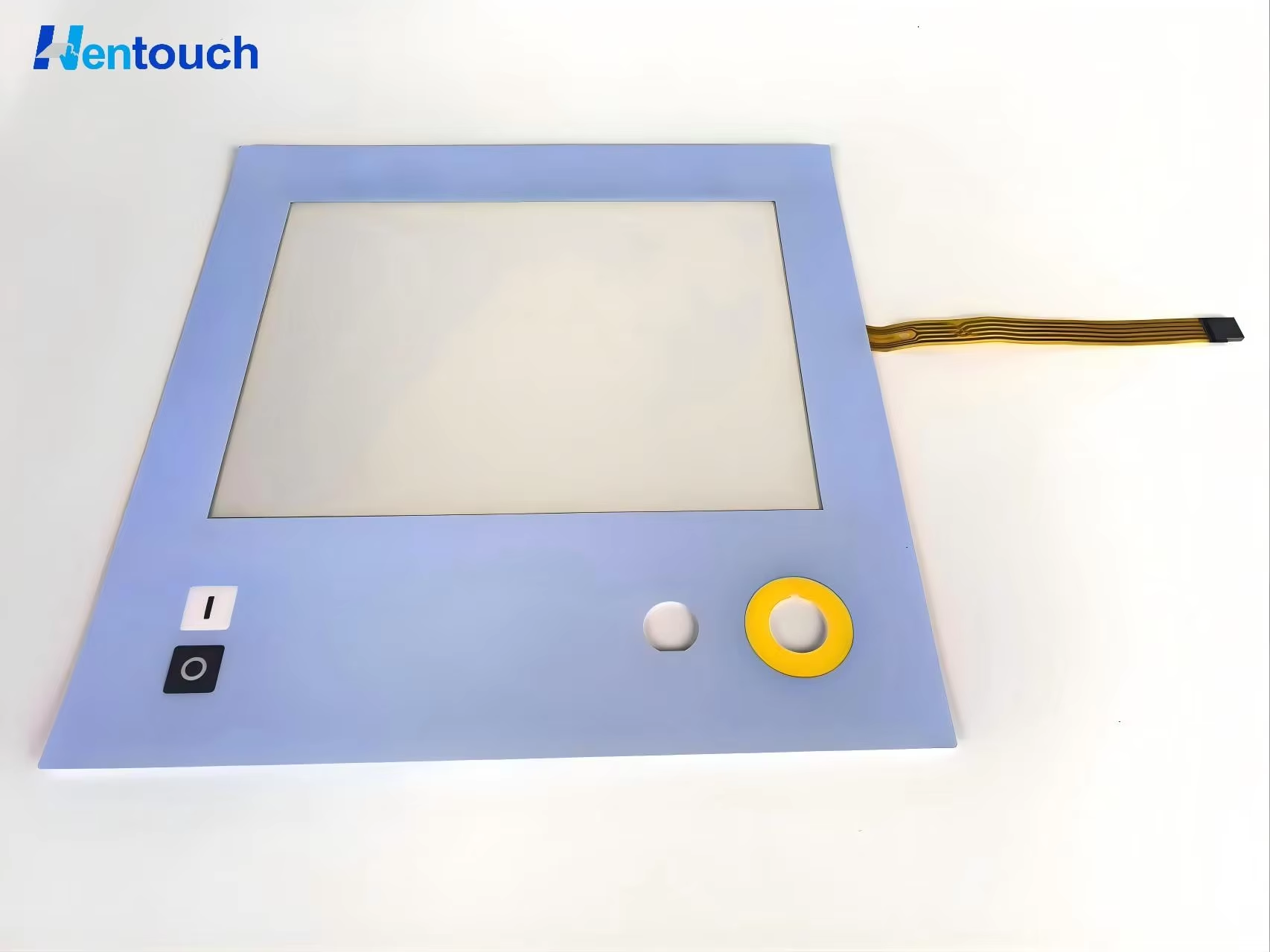

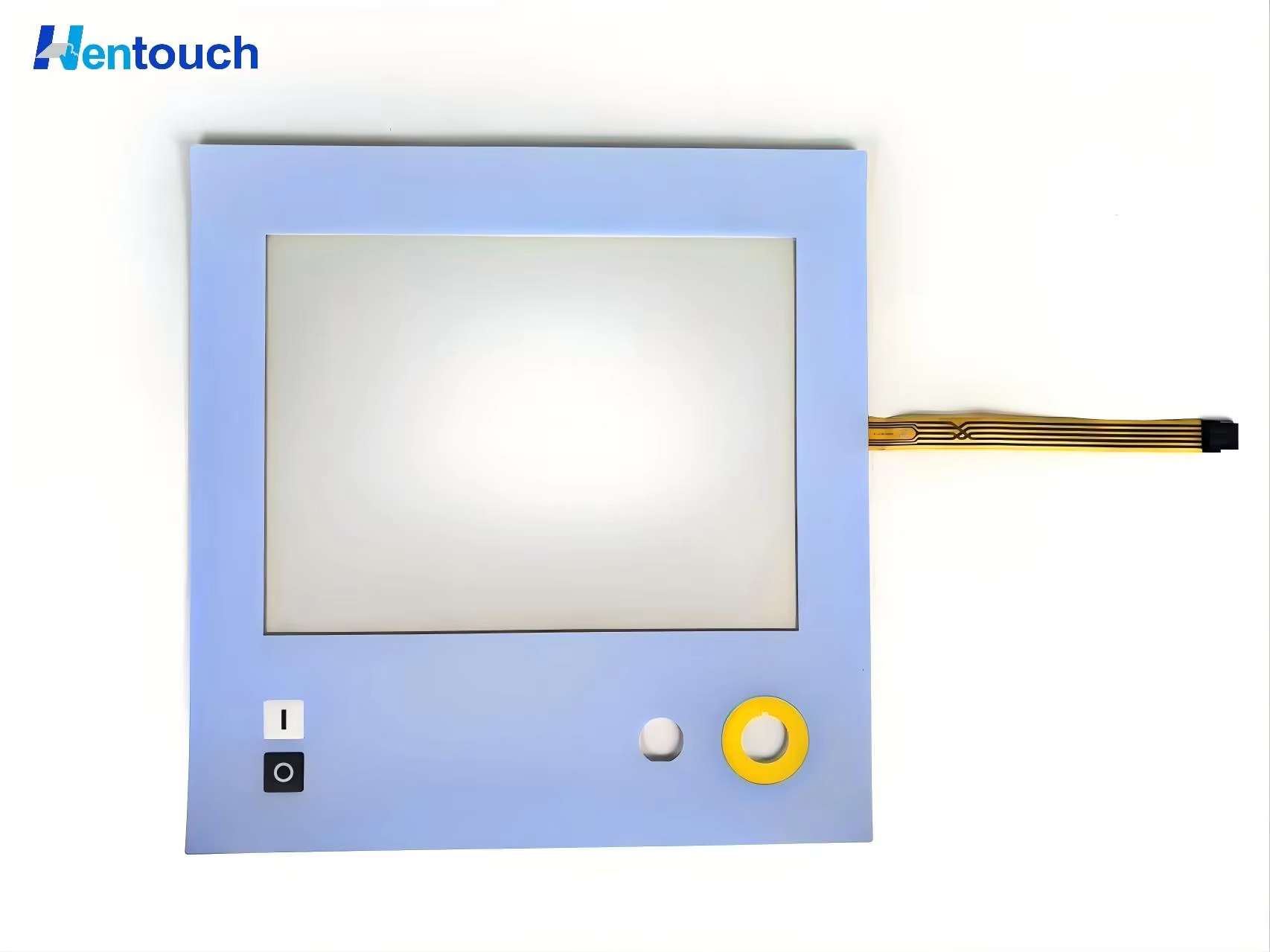

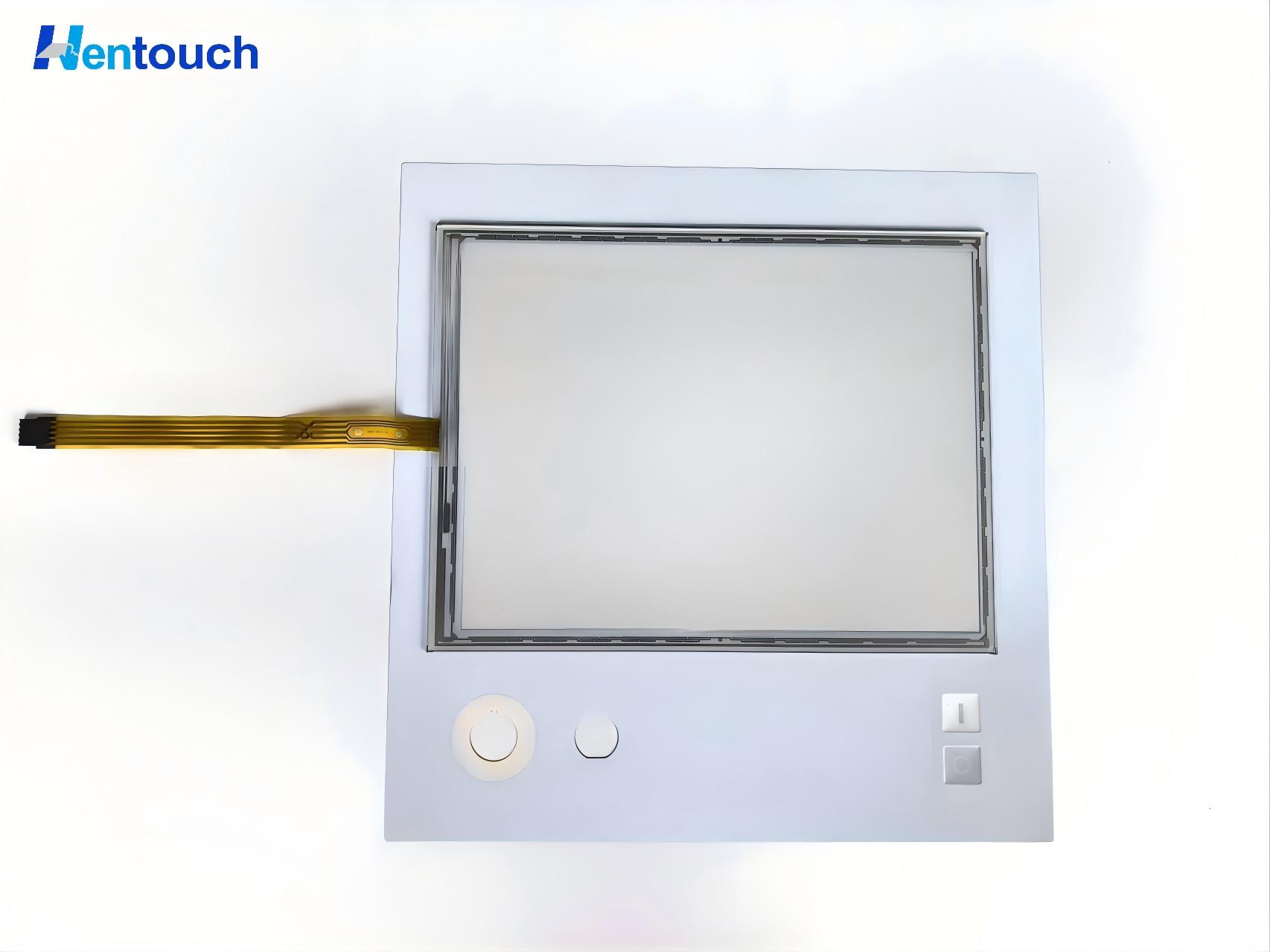

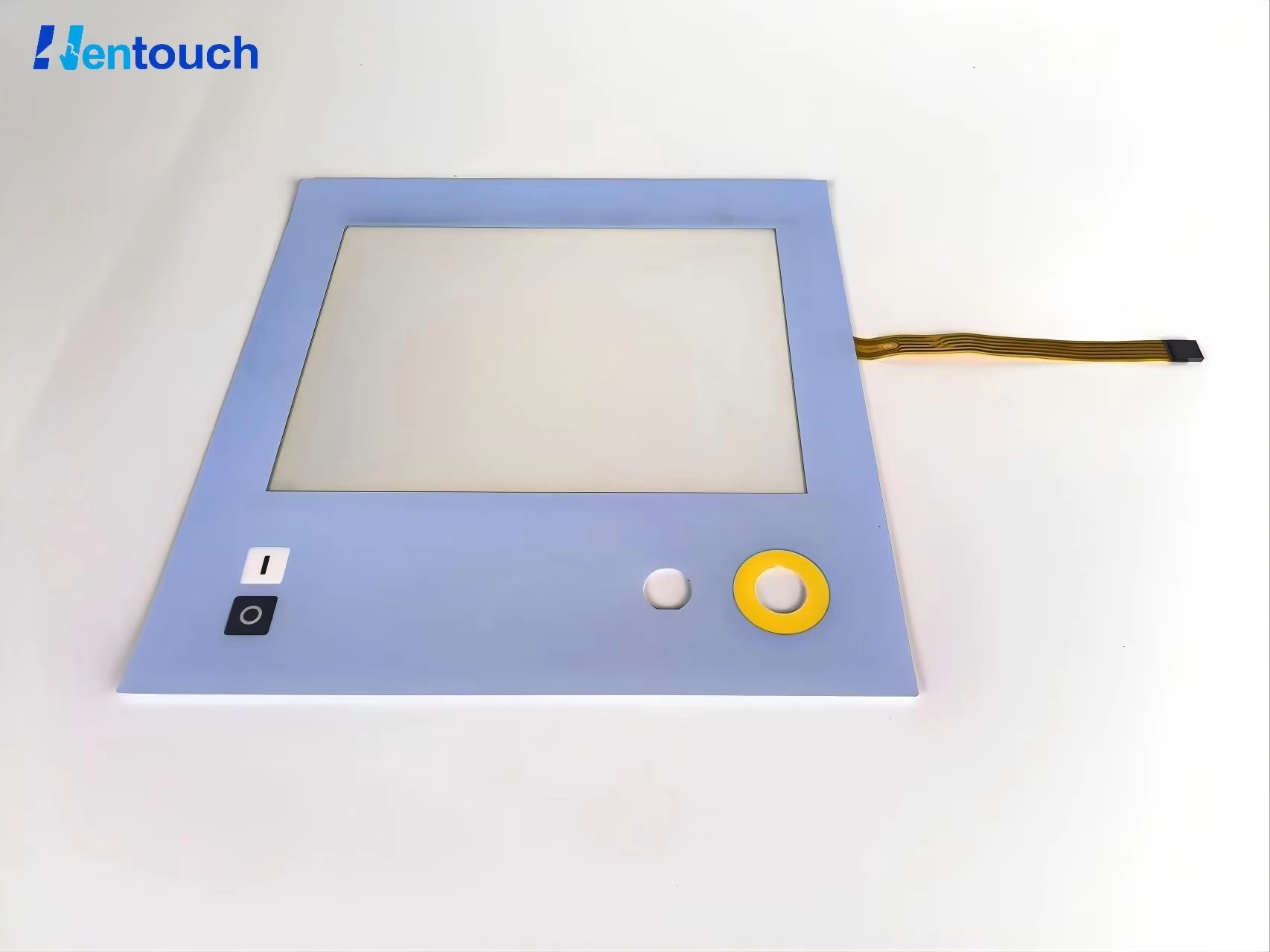

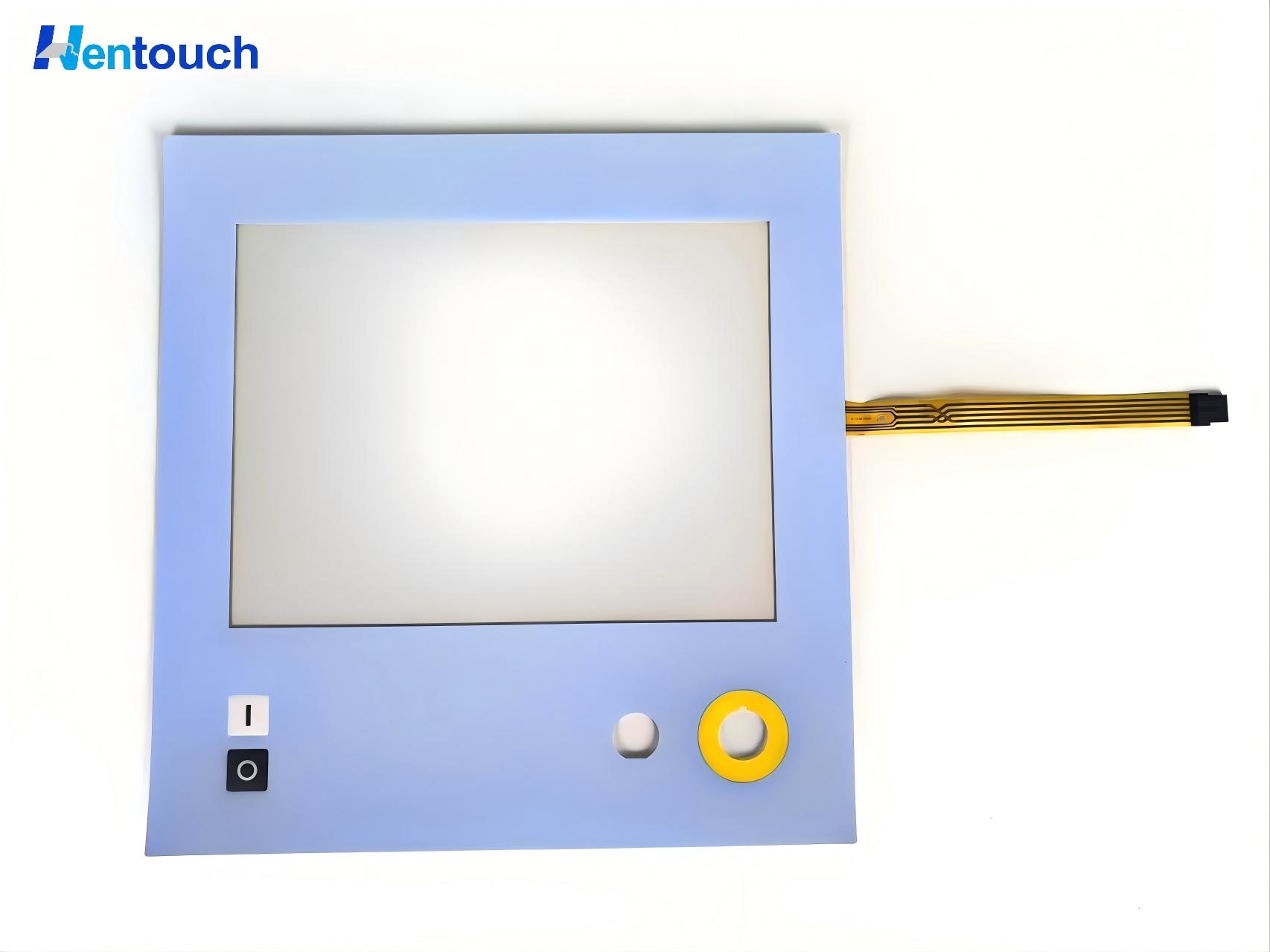

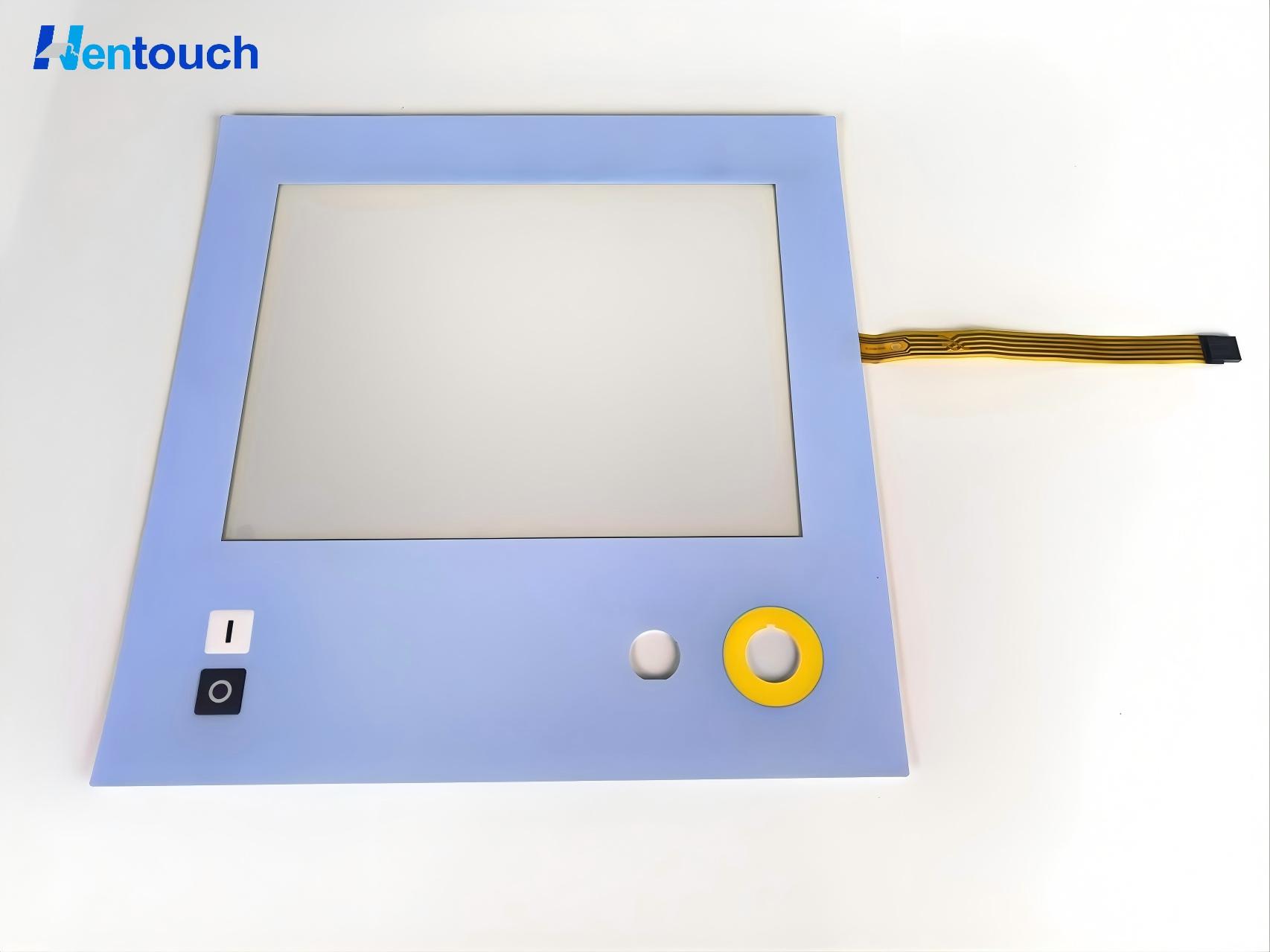

Details Images

Company Profile

Product Paramenters

Model：HT-5RTP-12.1A-3

Size：12.1Inch

Type：Resistive Touch Panel

Structure：FILM+Glass

Outer Dimensions：Customized

Active Area Dimensions：Customized

Resistance：Film side: 100Ω~500Ω ; Glass side:400Ω~1100Ω

Surface Hardness：≥3H

Interface：USB

Transparency：≥78%

Touch Points：Single points

Operation temperature：—20℃~+70℃

Storage Temperature：—25℃~+75℃

High temperature storage：70℃, 240hr

Low temperature storage：—20℃, 240hr

Total Thickness：Customized

Touch Accuracy：±2MM

Linearity ：   1mm

MOQ ：10pcs

Sample Lead Time：3-5 working days

Mass Production Lead Time：2-4 weeks normally, it depends on your order quantity

OEM/ODM：we can make this product as per your design and put your logo on

Payment Terms：sample: by paypal or alibaba. mass production order: T/T to our company bank account, 50% deposit, 50% balance before shipment

Warranty：12 months

Package：plastic tray or anti static foam or paper card or vacuum bag or carton
