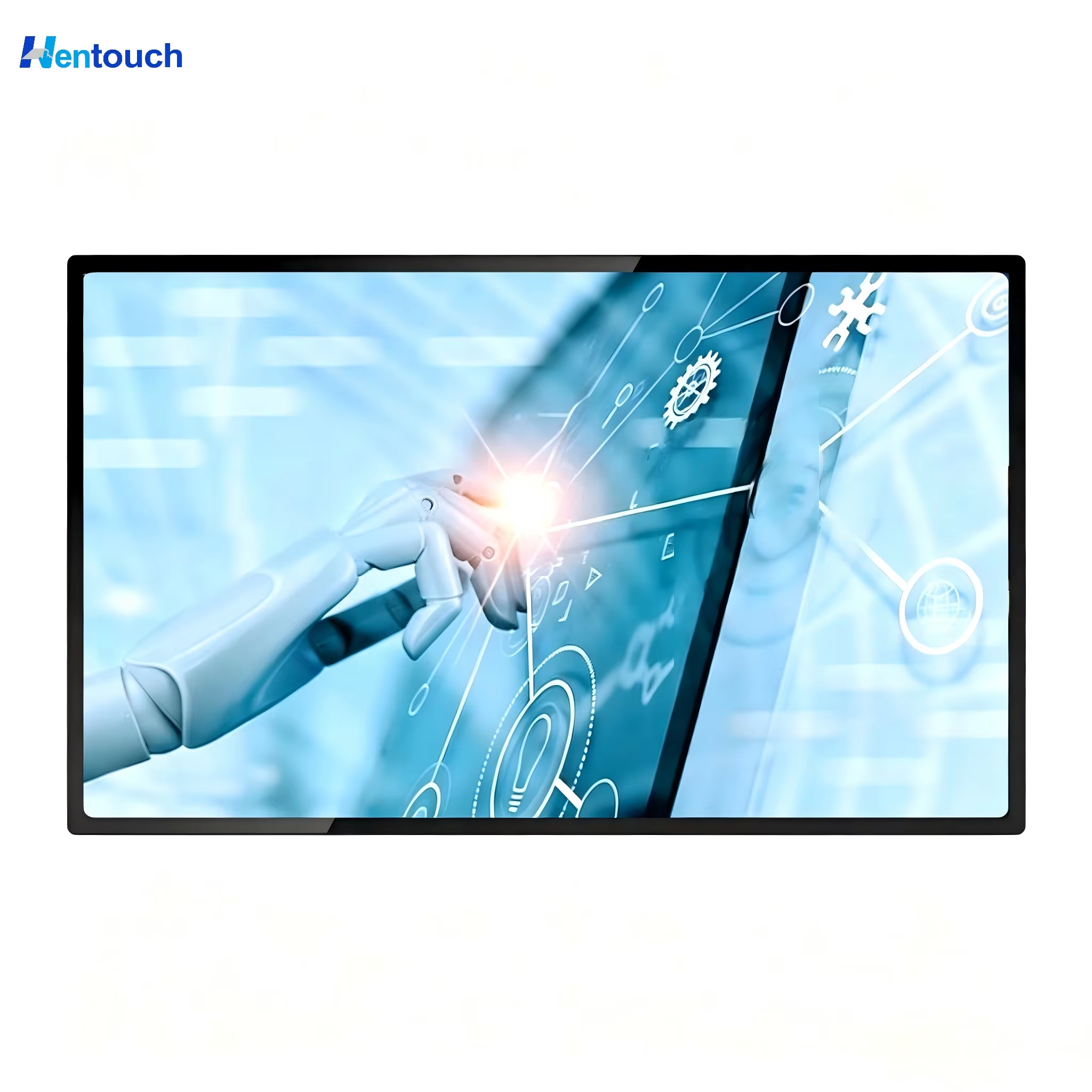

Wall Mounted Capacitive Touch Monitor – Hentouch Custom Wall Mount Touch Display

1.Interactive Android display with 2K and 4K resolution: The Factory OEM Wifi Android Interactive LCD Display offers a premium viewing experience with its high resolution of 1920x1080 and up to 4K capabilities. Its compatibility with Android OS ensures seamless integration with various apps and devices, offering flexibility and convenience.

2.Wall-mounted design and versatile screen sizes: This touch screen monitor is designed for wall mounting, with sizes ranging from 27 to 65 inches. The option to choose the ideal screen size for your requirements makes it suitable for various settings, including retail, education, and business environments.

3.Capacitive touchscreen technology: The touch screen monitor comes with capacitive touchscreen technology, providing users with a responsive and accurate touch experience. This feature enhances the interaction and efficiency of using the device for various applications.

4.Comprehensive after-sales support: Maxway, the brand behind the product, offers a range of after-sales services, including call center and online technical support, free spare parts, repair, return and replacement, ensuring customer satisfaction and peace of mind.

5.Features and connectivity: The 27 32 43 55 65 Inch Touch Screen Monitor comes with a variety of interfaces, such as D-SUB, DVI, and USB, allowing for seamless connectivity with various devices. The 16:9 aspect ratio and main application for business make it a suitable choice for professional settings. The sleek black color adds a touch of elegance to any environment.

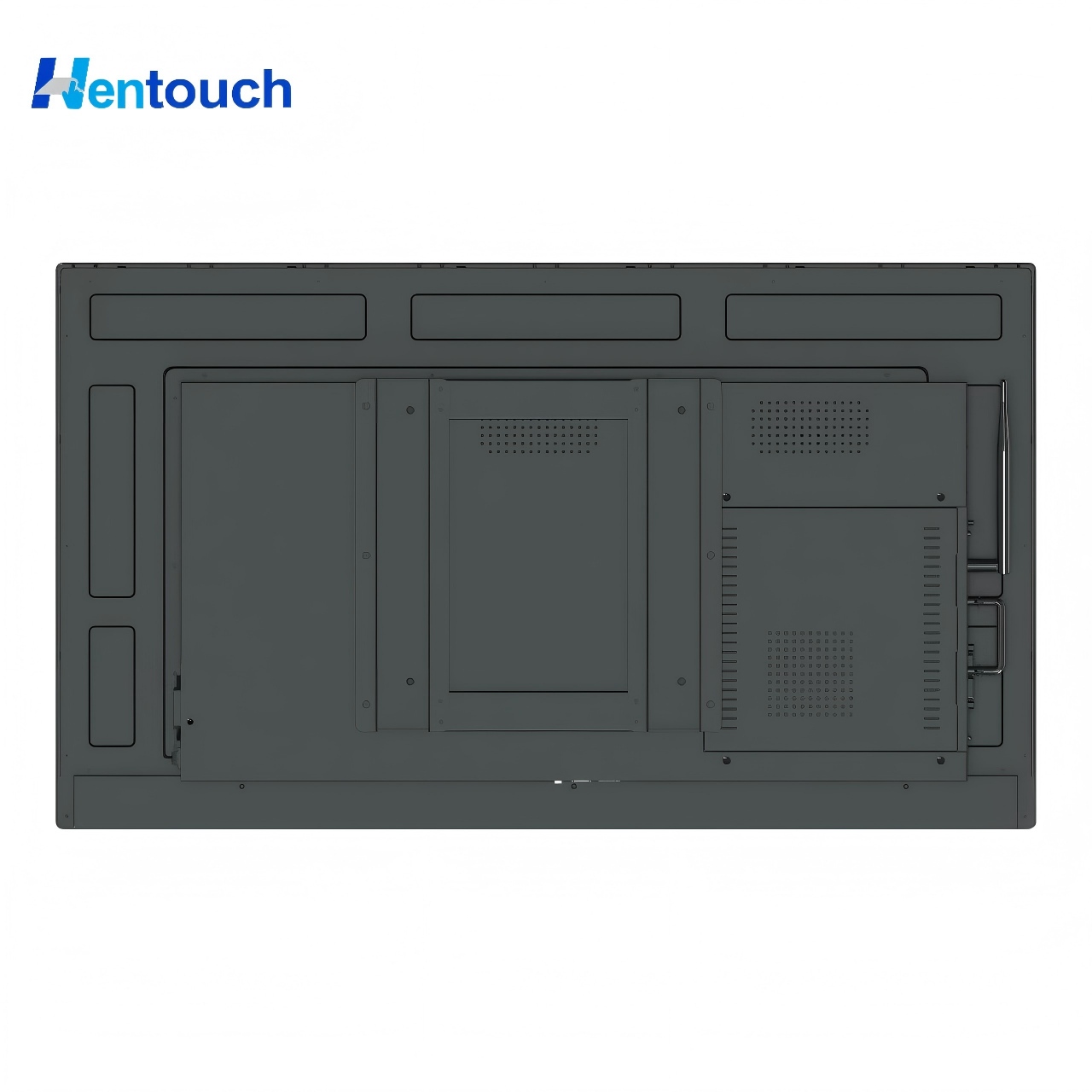

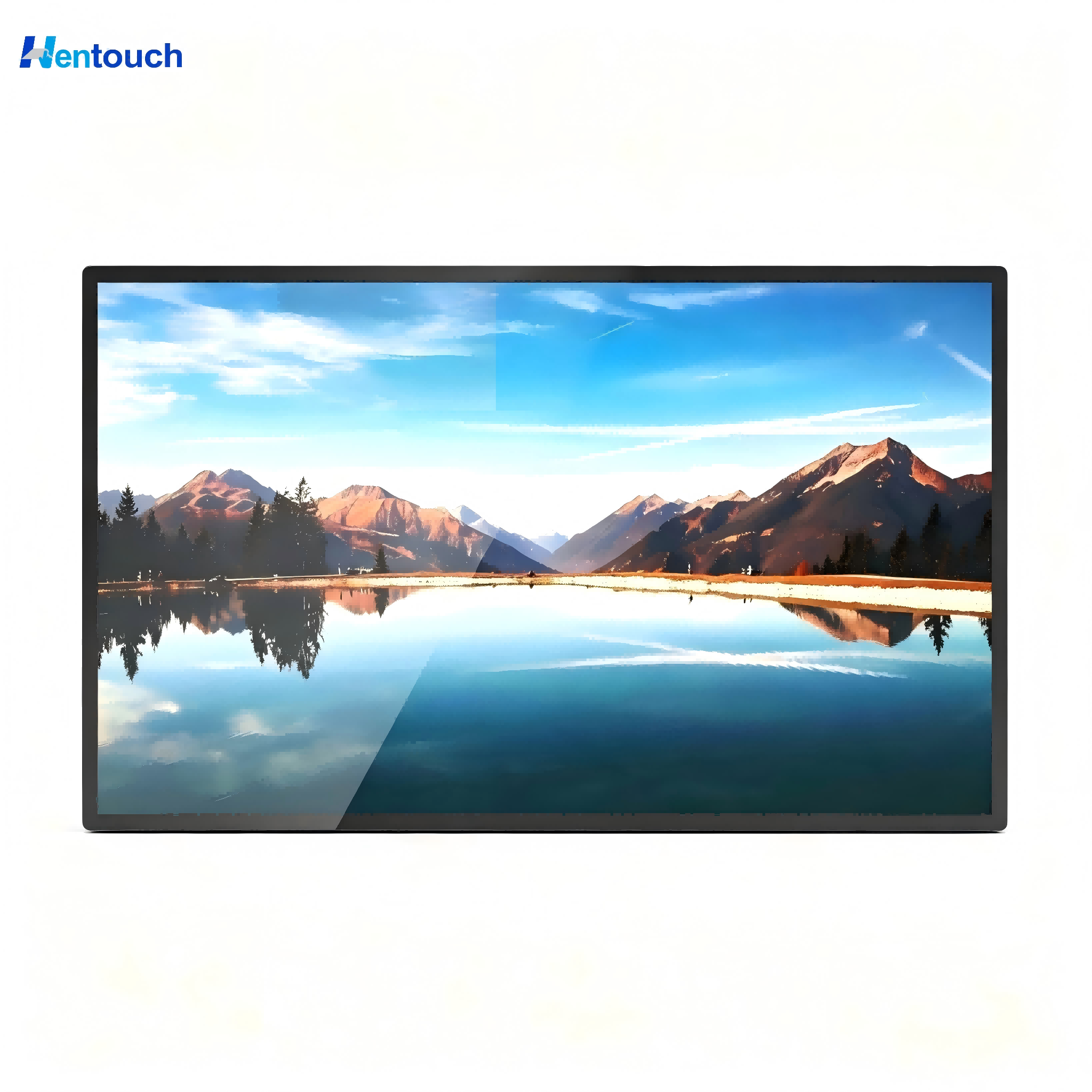

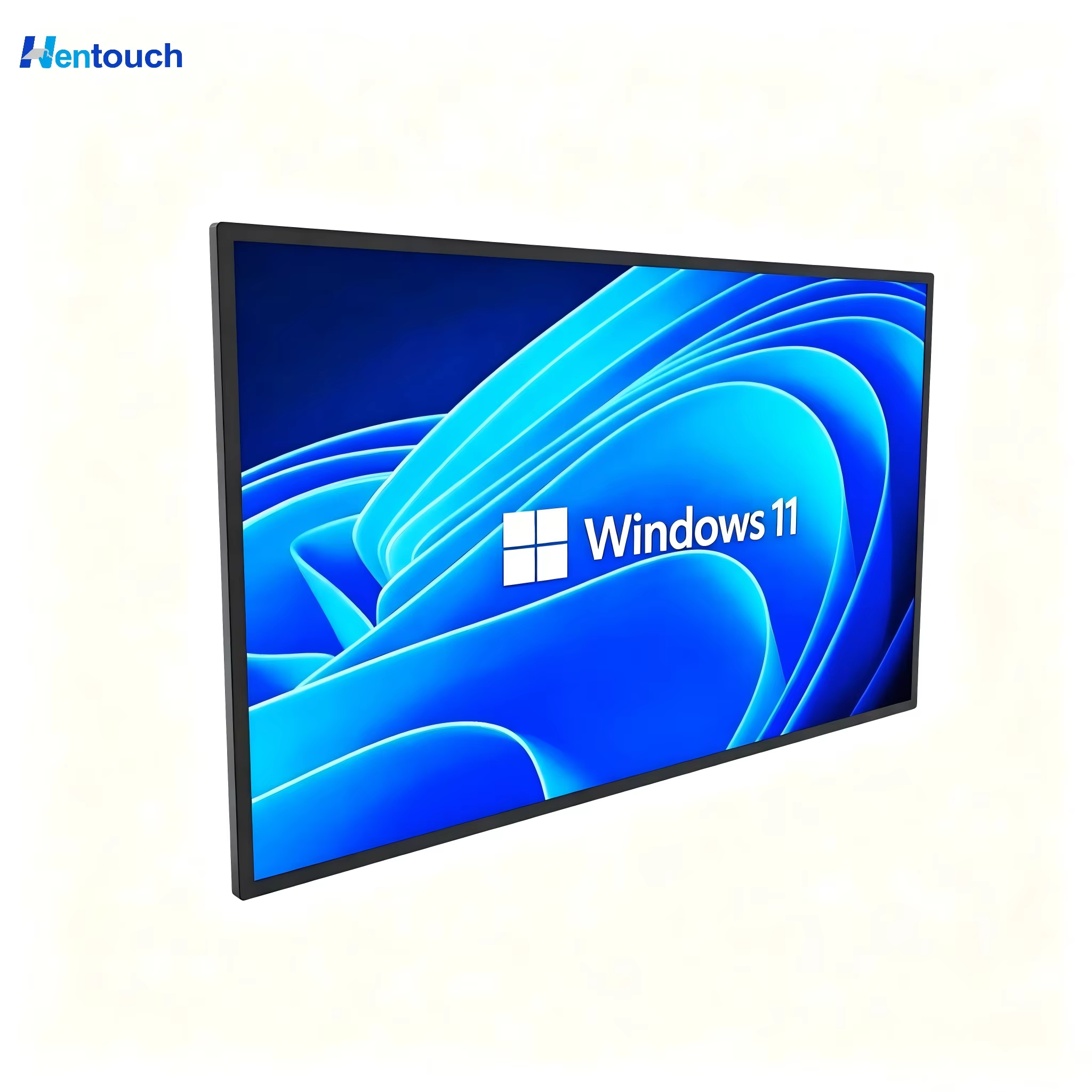

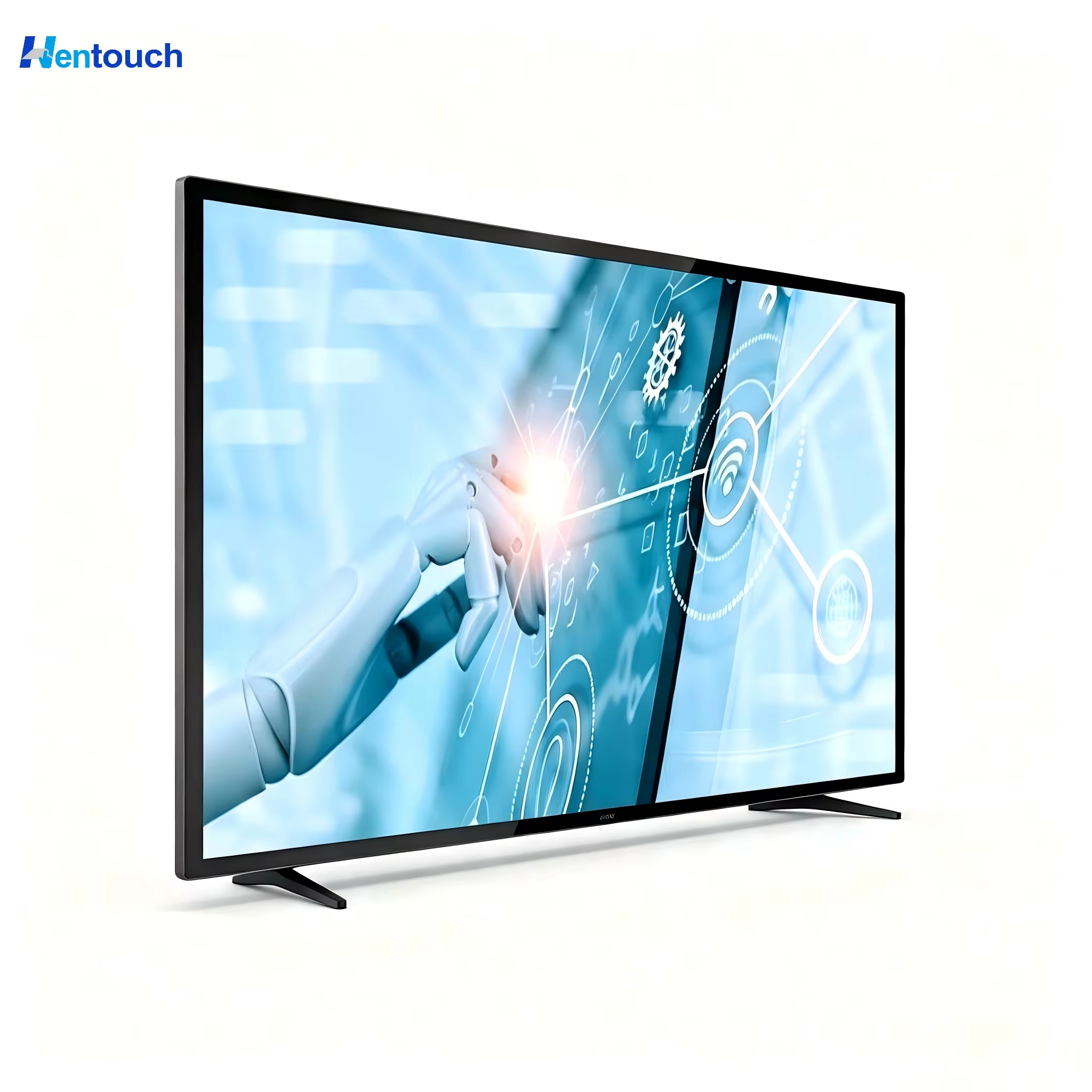

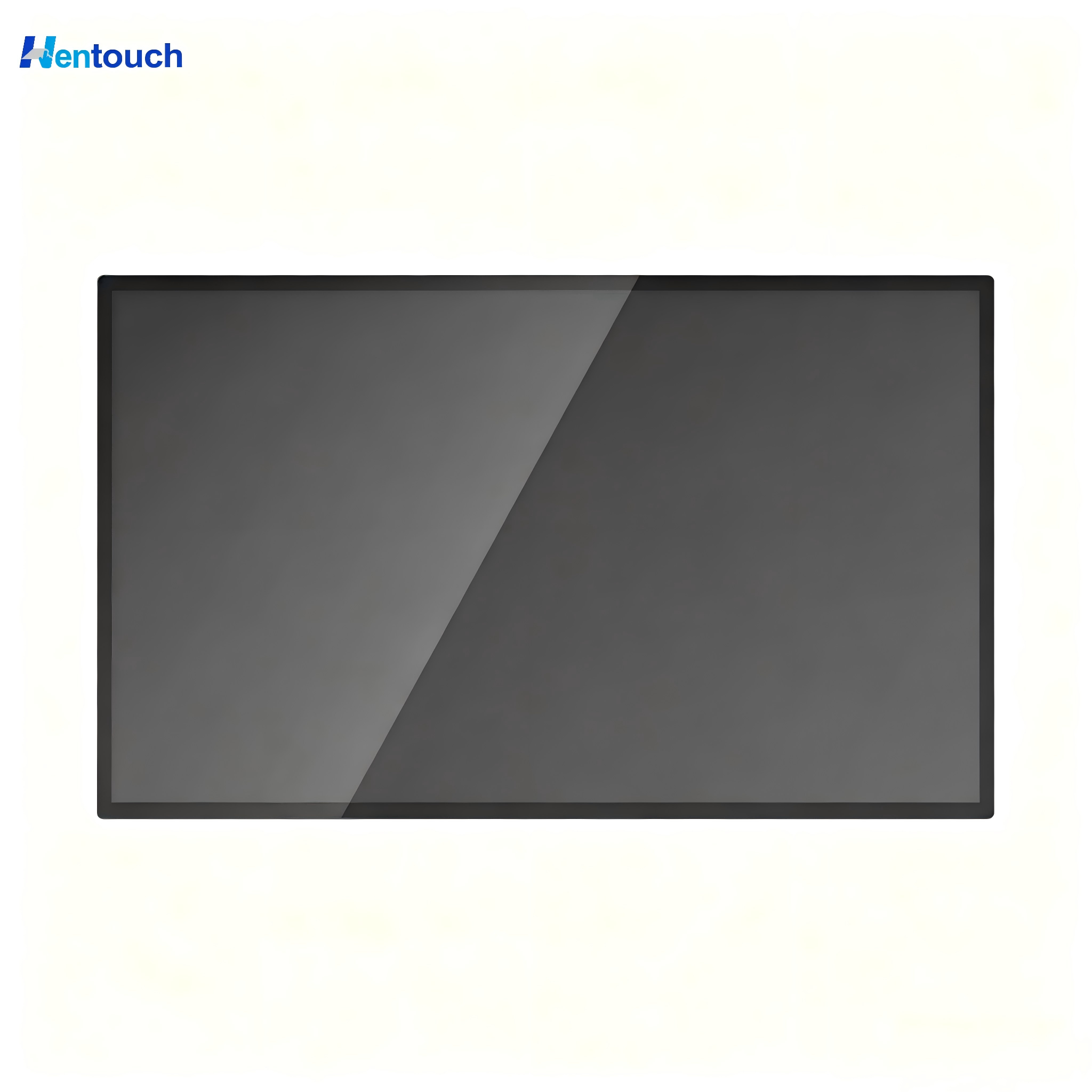

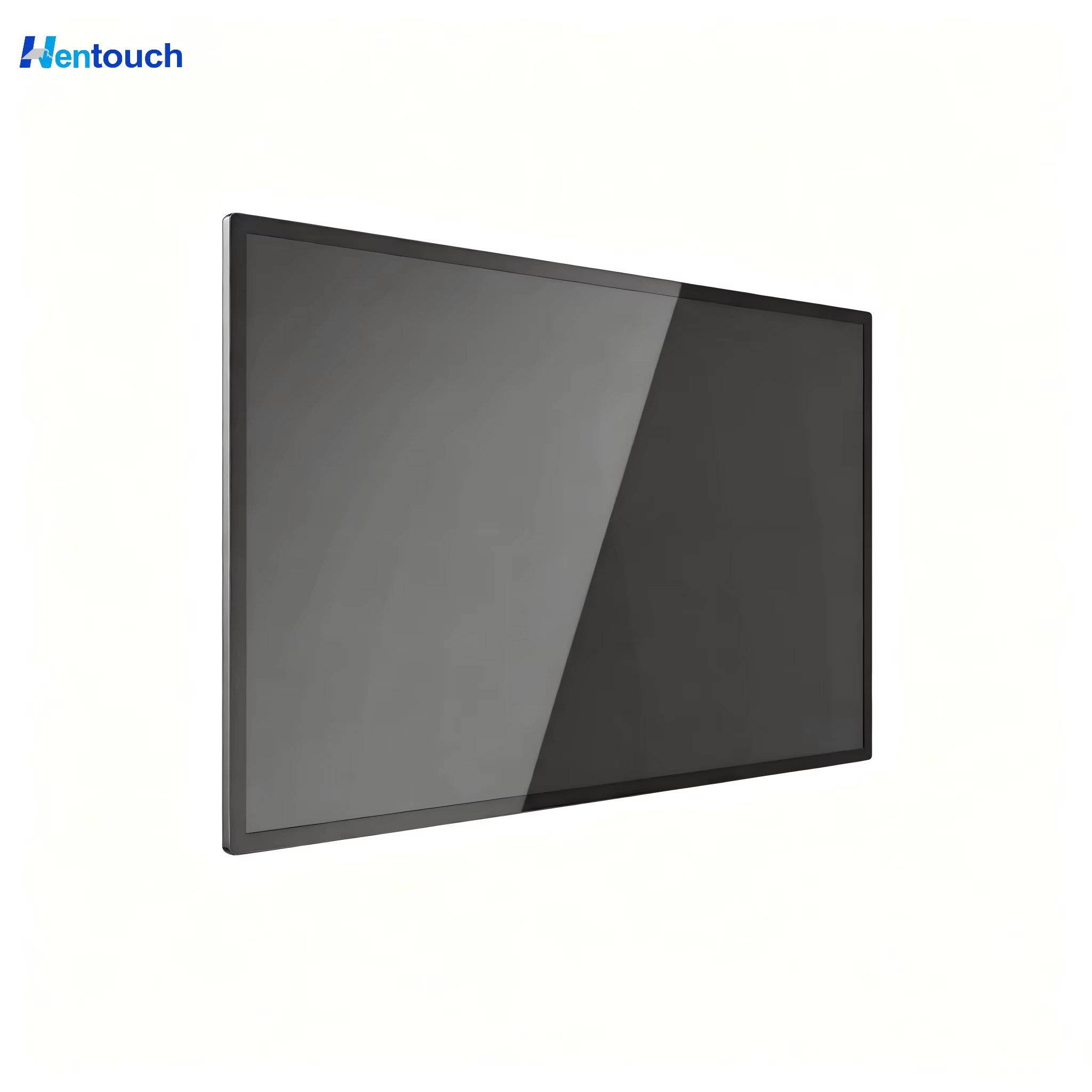

Details Images

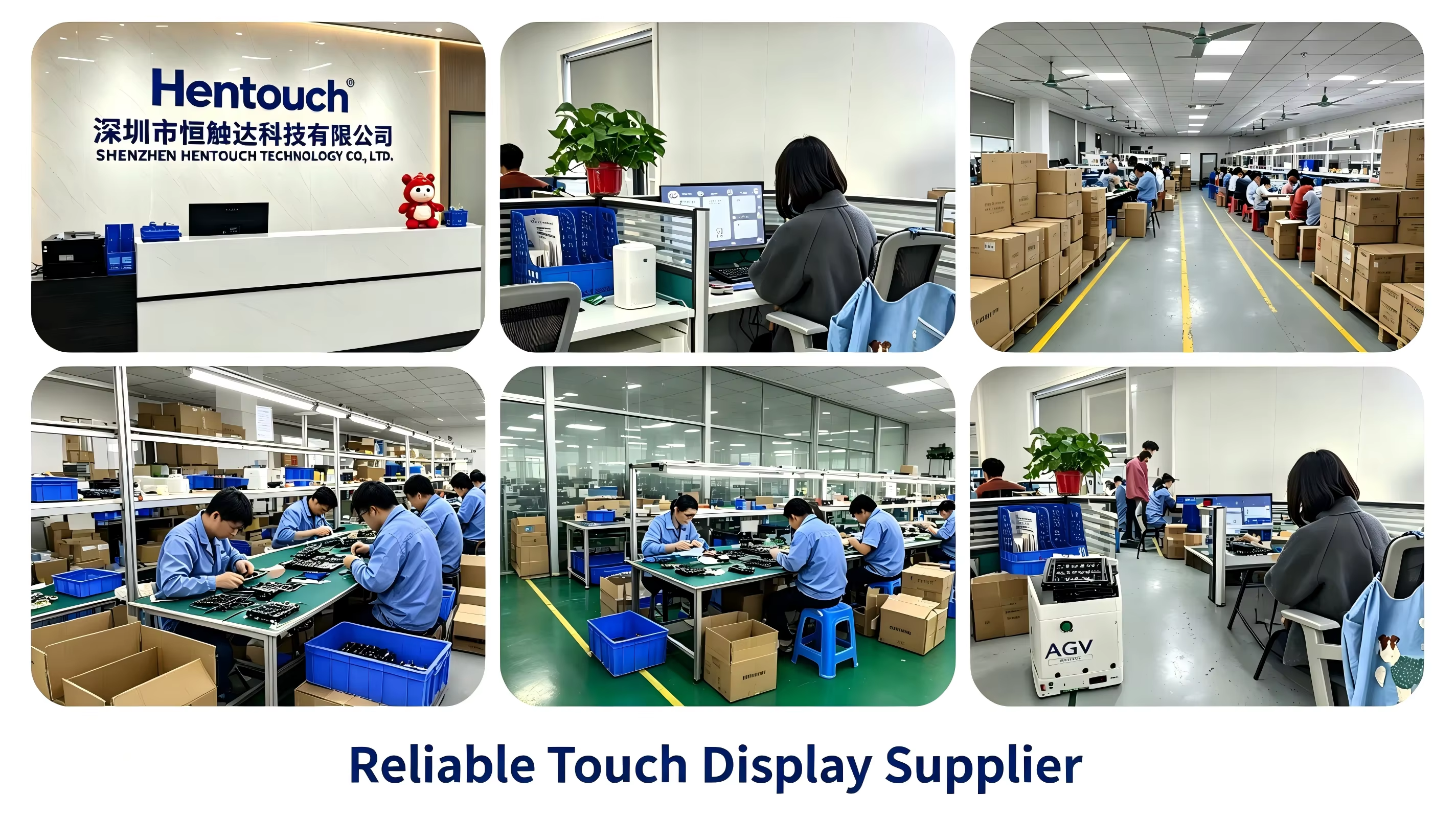

Company Profile

Product Paramenters

Model:HT-TM43C

Size:43 inch

Color： Black

LCD Glass Brand: BOE

Black border size: 11MM

Aspect Ratio: 16:9

Backlight type: ELED

Native Resolution: 1920 x 1080 FHD

Peak brightness: 500cd/㎡

External dimensions: L967.6mm*H555.8mm*T59mm(pylonsT:10mm)

Display Area: 940.896(W)×529.254(H) mm

Viewing Angle: Horizontal: 178° (89°/89°) Vertical: 178° (89°/89°)

Contrast ratio: 4500:1 (Typ.) (transmission)

Response Time: 6 (Typ.)(G to G) ms

display mode: ADS often displays in black

surface treatment: Foggy surface (Haze 1%)，Hard coating (3H)

Frame frequency: 60HZ

Touch Screen Type: Projection capacitive screen

Controller: ILI2322P.C3.P2.V1

Channel: RX78*TX44

Power : 5V

Communication: USB Serial port

Number of Touch point: 10

O.S. (Optional): Windows/Android/Linux

Transparency: ≧89%

anti-glare glass: 3.0mm Foggy AG tempered glass

Surface Hardness: ＞7H(750g)

work environment: Tep‐0℃~55℃/Humi 10%RH~90%RH

Storage environment: Tep‐5℃~60℃/Humi10%RH~90%RH

Input signal: DP×1;HDMI×1;RS485×1;Audio×1;USB Touch×1

 output signal: OPS×1;LVDS×1;USB Touch×1;USB PC×1;Horn×1

                         (Supports screen scaling mode, automatic signal recognition, automatic                                                                             temperature control, no CPU or system hardware architecture,

                         with USB power on upgrade function.)

Power brand: Megmeet

Applicable scenarios: Indoor use

input voltage: AC110-220V

standby power: ≦1W

Rated power: ≦150W

service life: ≧100000Hr

Front frame material: Integrated Aluminum Profile

body material: Galvanized sheet

Chamfering degree: R6°

Packaging Material: Gravity cardboard box

Packaging size: L1045mm*H650mm*T145mm

VFSA: L400mm*H300mm

Net gross weight: 19KG/20KG

Wall mounted brack: Horizontal and vertical universal,pylonsT:10mm

Installation method: Wall mounted/suspended/embedded

Applications

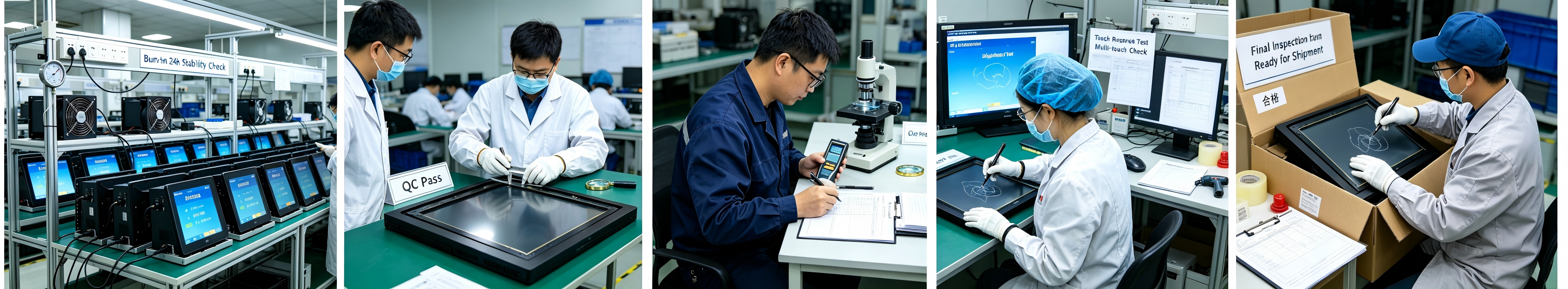

Quality Control
