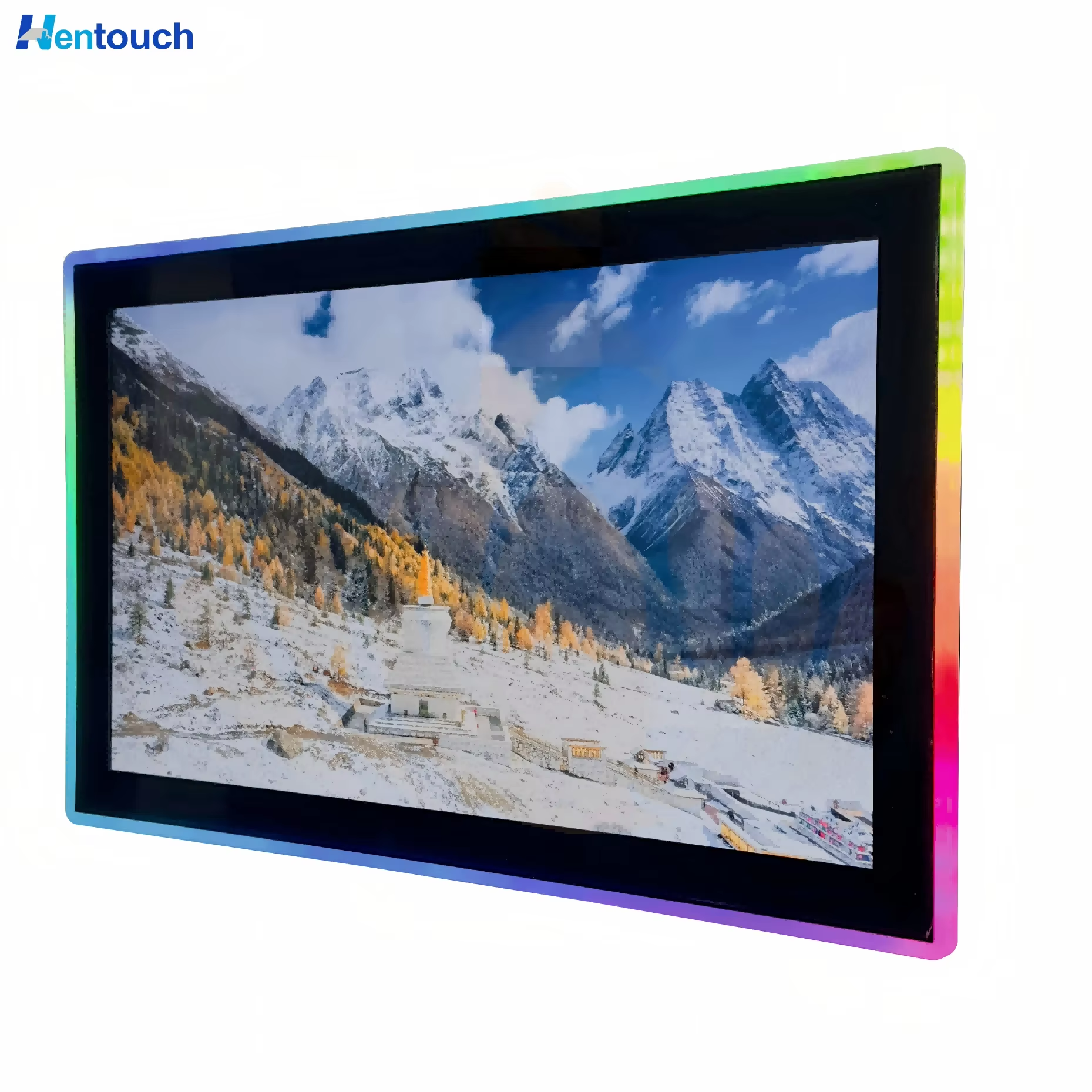

LED Light Capacitive Touch Monitor – Hentouch Custom LED Light Touch Display

This multi-scenario display delivers exceptional performance for both gaming and kiosk applications. Featuring high-quality LCD panels, responsive touch control, stable color reproduction, and a durable design, it ensures smooth operation in heavy-use public environments while providing crisp visuals and low latency for immersive gaming. With reliable performance, long service life, and flexible installation, it is the ideal choice for gaming stations, self-service terminals, industrial control, and interactive equipment.

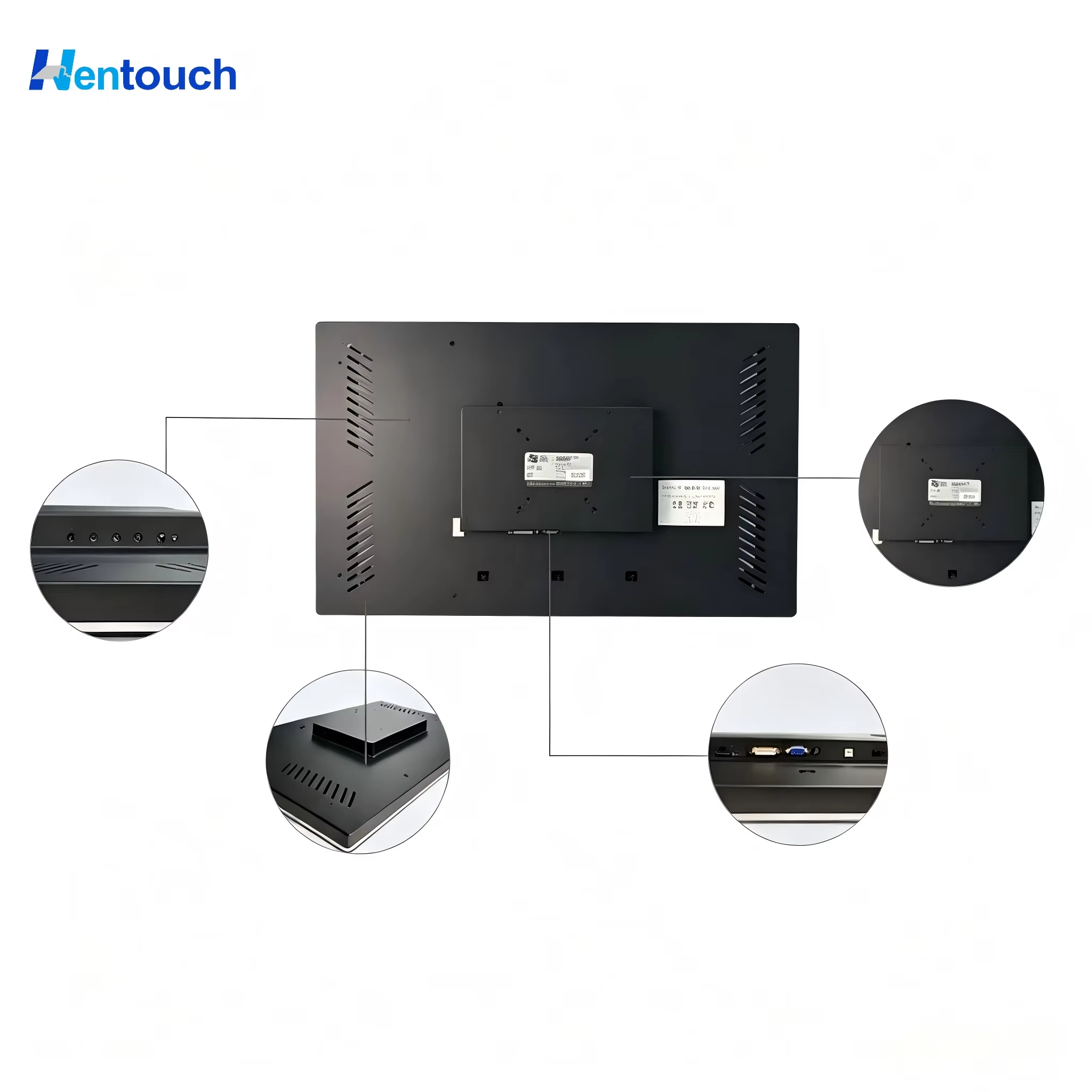

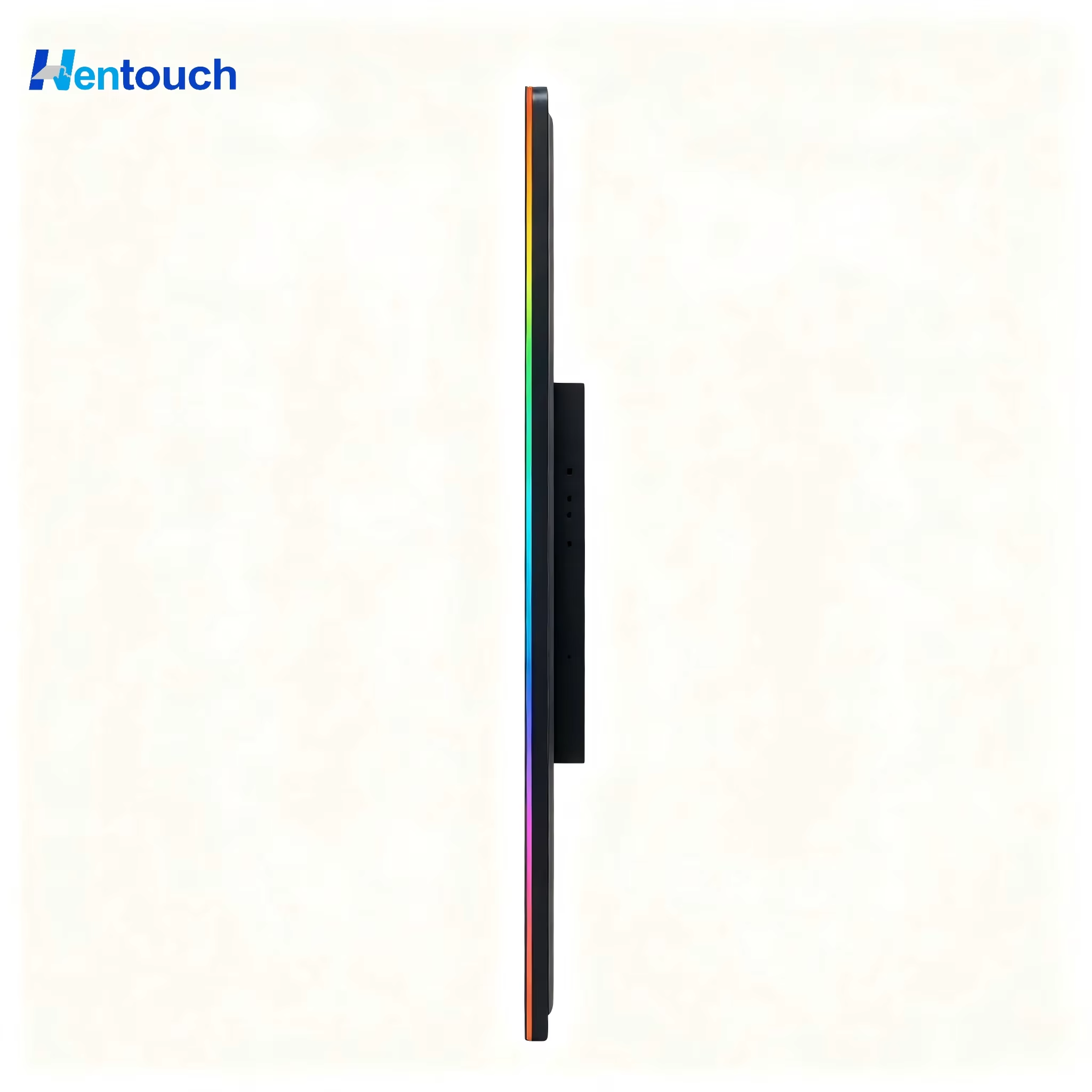

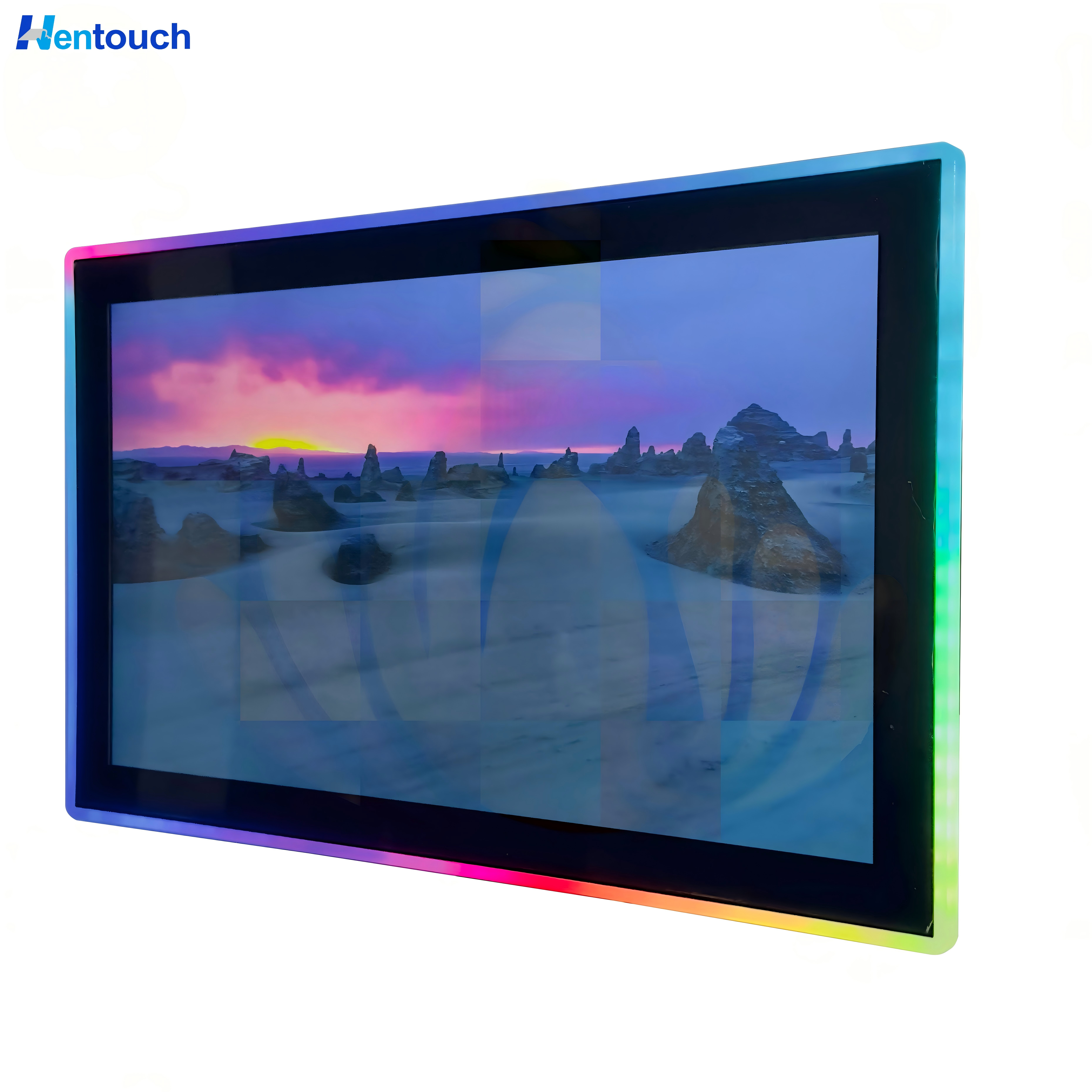

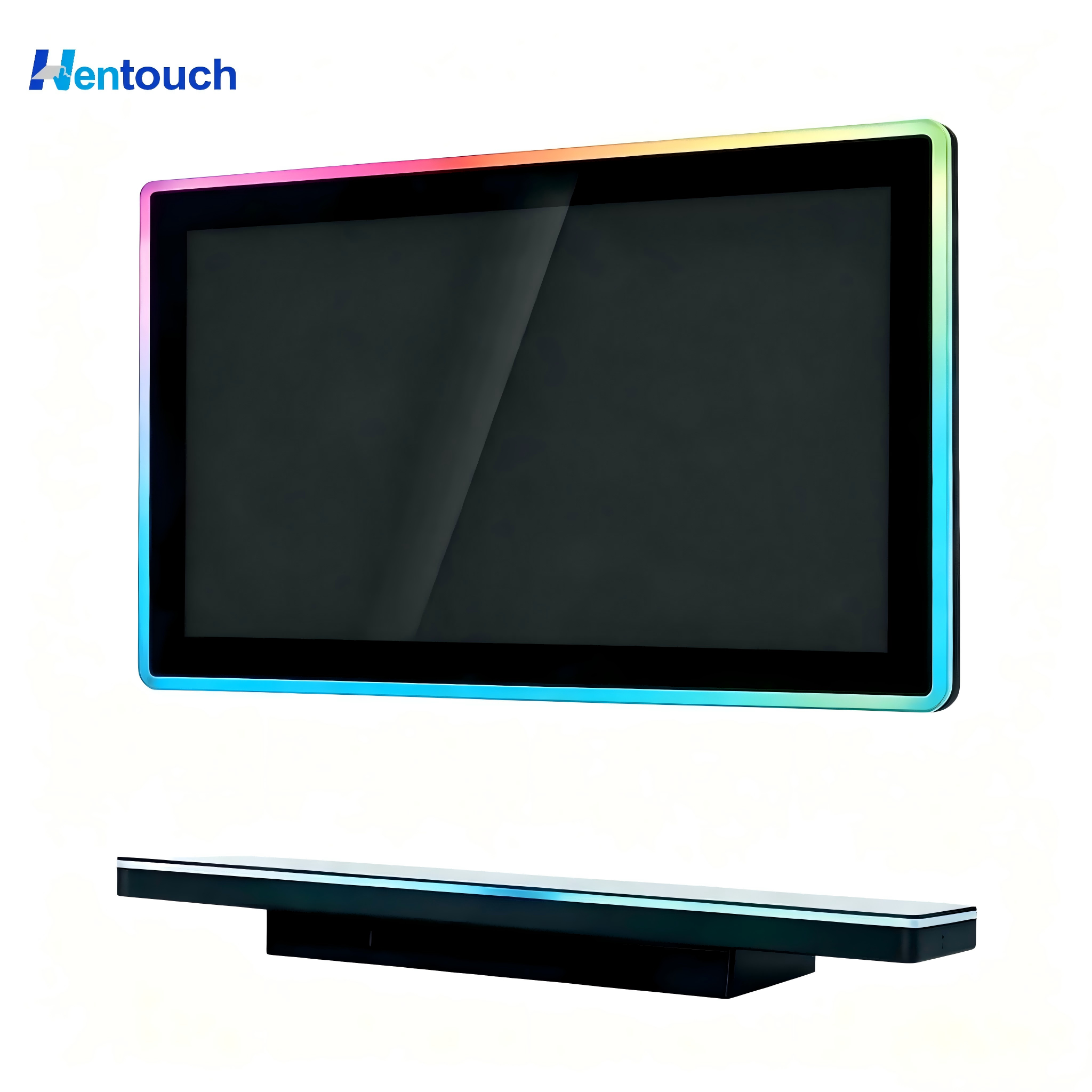

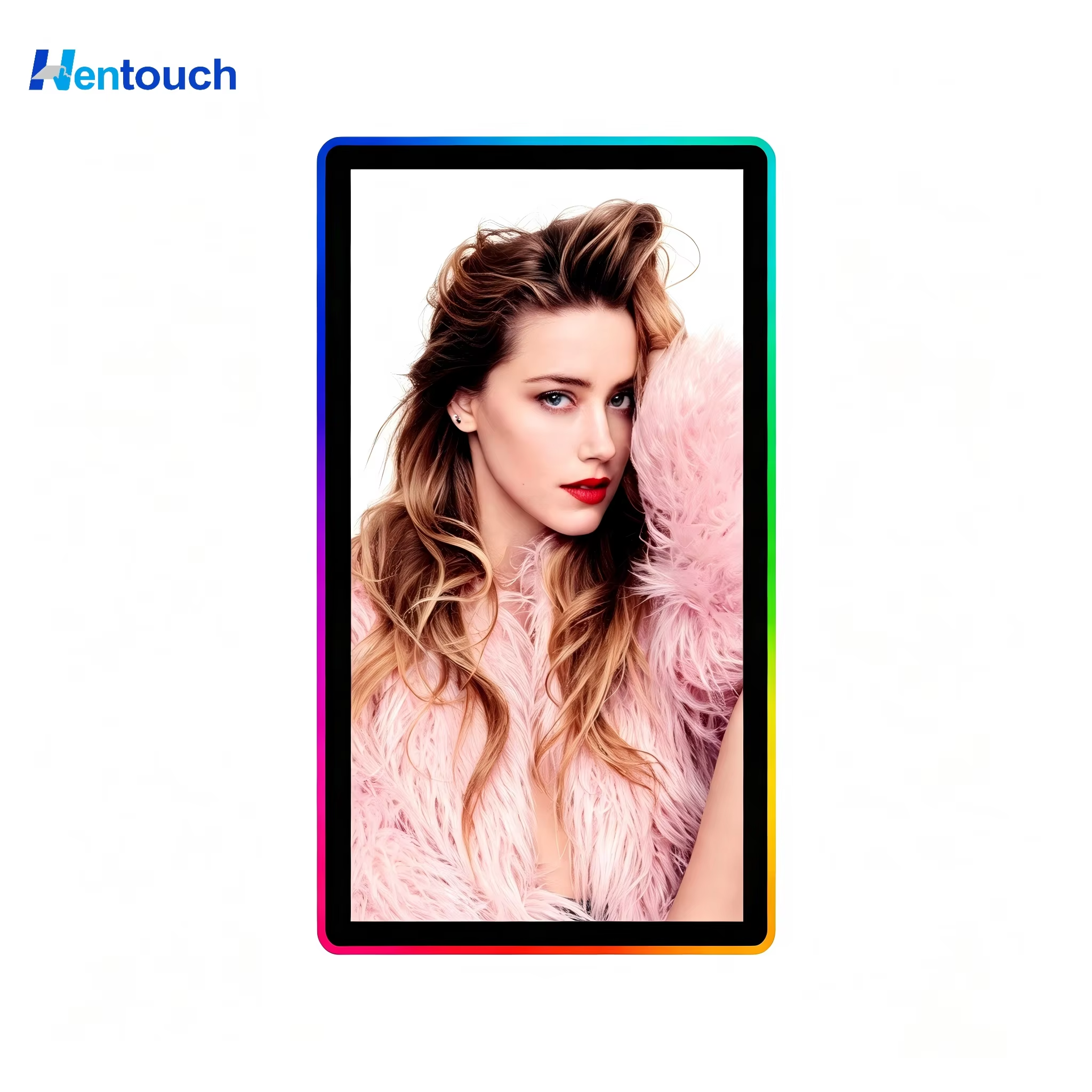

Details Images

Company Profile

Product Paramenters

Model：HT-TM21.5D

Size： 21.5 Inch

Pixel Pitch(mm)：0.09052(H) x 0 .27156(V)

NTSC：72%

Display Type：Active matrix TFT LCD, LED backlight

Active Display Area：477 (H)x 268.6 (V)

Aspect Ratio：16:9

The Display Dimensions：534.5X 47.4X334.1 mm

Native Resolution：1920 x 1080 at 60 Hz

Number of Colors：16.7M

Number of Touches：10 -touch

Brightness (typical)：LCD 250 nits

Viewing Angle：Horizontal: 178° (89°/89°) Vertical: 170° (89°/89°)

Contrast Ratio：1000:1

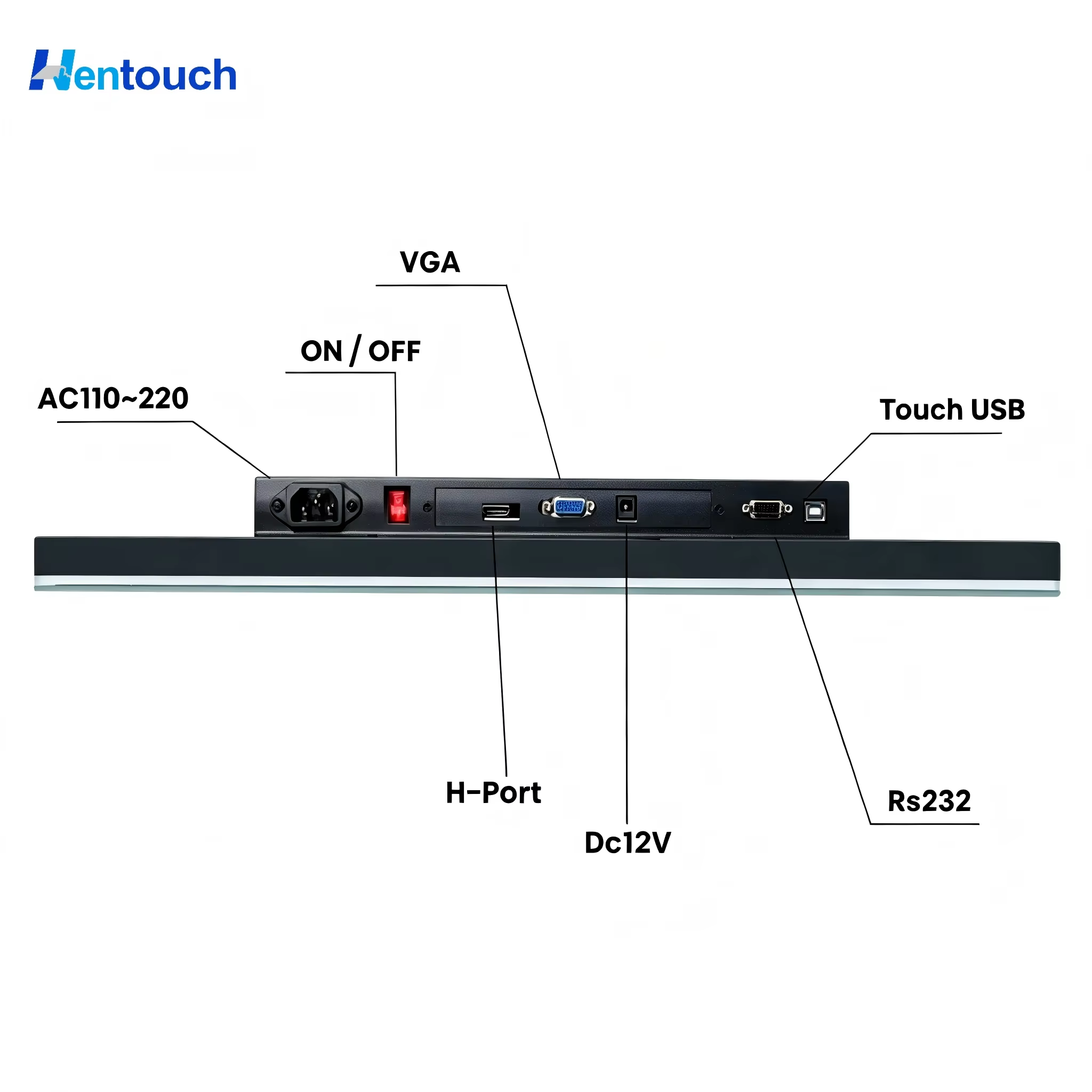

Input video formats：Analog VGA and HDMI（DP optional）

outlet terminal：earphone (Audio output optional) Speaker(Max ) optional

Touch Technology：projected capacitive

                                   Touch chip：ILITEK

                                   Touch points：10

                                   Touch supply voltage：5V

                                   Touch interface：USB

                                   Touch support system：Windows，Android，linux

Power：Consumption(Max) On: ≤65W

               PD POWER AC 110V-264V

               Power Mode Indicator Light: Power on : GREEN(LED)Power saving : RED(LED)

Temperature：Operating: 0℃~40℃; Humidity 20% ~ 85%, non condensing

MTBF：50000 hours

Packing Dimension(W*D*H)：665X150X 460 mm

Net Weight：6kg

Gross Weight：8kg

Wall hanging: support

Front Control：Menu, Bri (-), Vol(+) Auto/Enter, Power (Key)

On Screen Display：Standard OSD format

Color：9300,6500, User Mode

Preset Mode：Warm

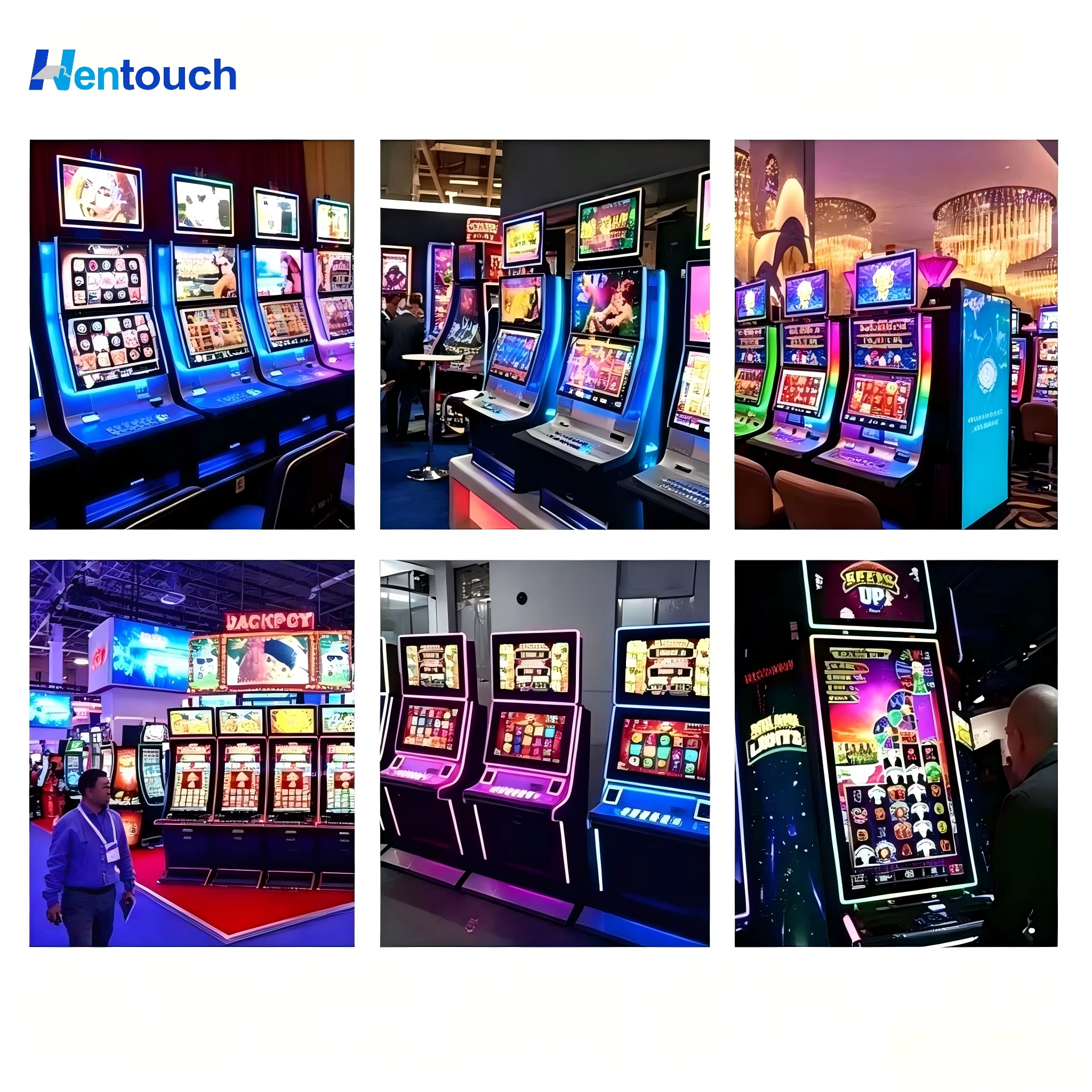

Applications
